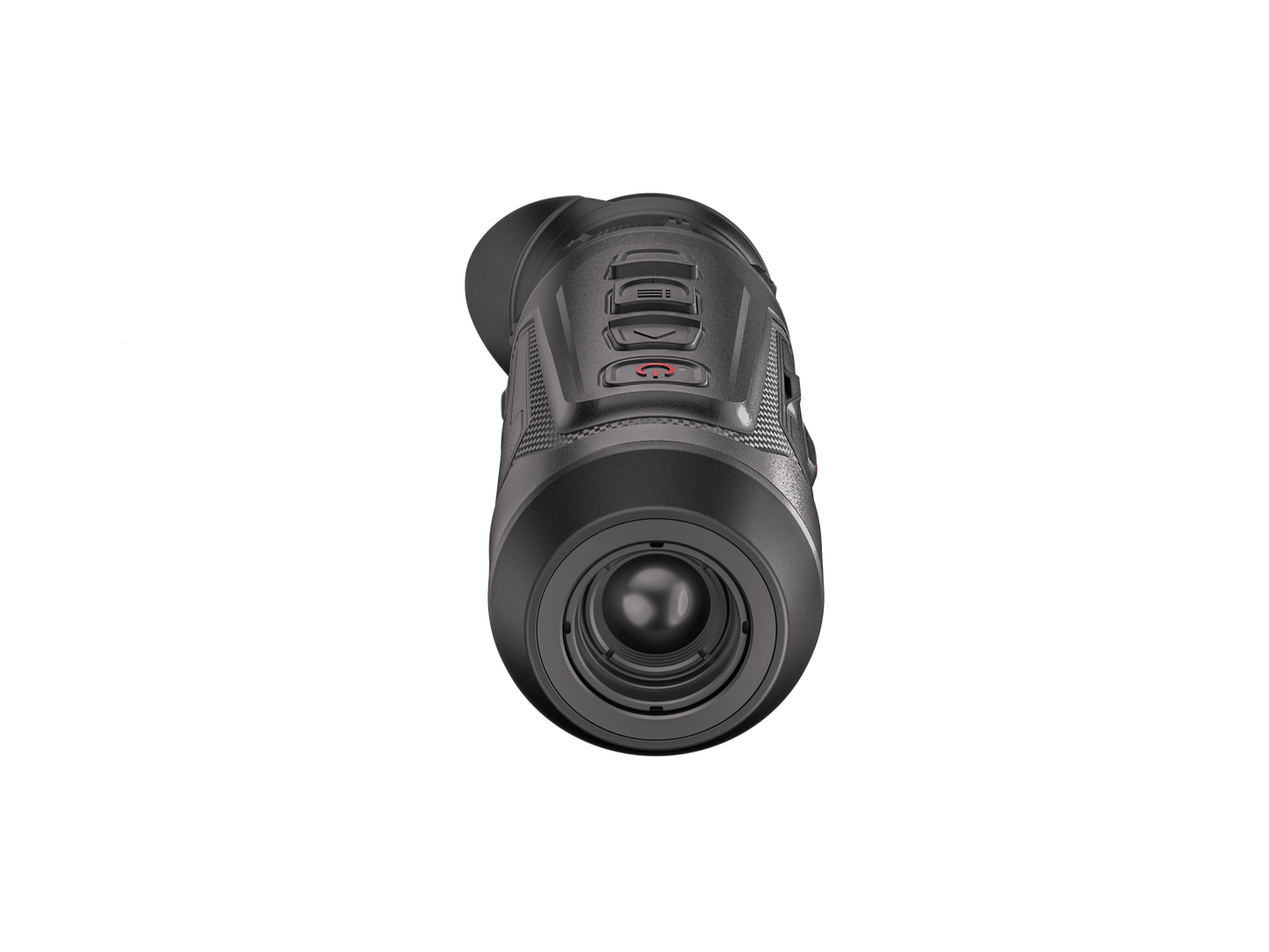

Hikmicro Lynx LE15 3.0 Thermal Monocular

Compact yet powerful, the LE15 3.0 combines a 256 × 192 thermal detector with a 15 mm F1.0 lens to deliver a
2.2× base magnification and an 11.7° field of view. With its proven shutterless technology and a detection range
of up to 750 m, this monocular is an excellent entry-level device for outdoor enthusiasts looking for reliable
performance.

● Key Features
● High-sensitivity thermal module with NETD < 20 mK (@25° C, F# = 1.0).
● 15 mm, F1.0 lens with thermal detection range up to 750 m
● AI-powered Image Pro 3.0 algorithm
● HIKMICRO Shutterless Imaging System (HSIS)
● 0.39-inch OLED display with 1024 × 768 resolution
● Replaceable and rechargeable 18650 battery provides up to 5.5 hours of continuous operation at -20° C
● Lightweight design at 296.5 g, with a pocket-sized build

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length) 15 mm, f1.0
Focus Mode Focus Free
Detection Range 750 m
Min. Focusing Distance 7 m
Magnification 2.2× - 17.6× (8× )
Field of View(H × V),
Degrees / m @100m
11.7° × 8.8°/20.5 m × 15.4 m

Image Display
Display 1024 × 768, 0.39 inch, AMOLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro N/A
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes

System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes

Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time
6-hour continuous running with hotspot on (@25°C)
5.5-hour continuous running with hotspot on (@-20°C)
Type-C Power Supply 5V DC, 2 A
Supports External Power Supply, Support Direct Charging

General
Protection Level IP67
Dimension 156.3 × 53.6 × 49.5 mm
Weight 296.5 g with battery
Working Temperature From -30°C to 45°C (-22°F to 113°F);
Humidity: 90% or Less
