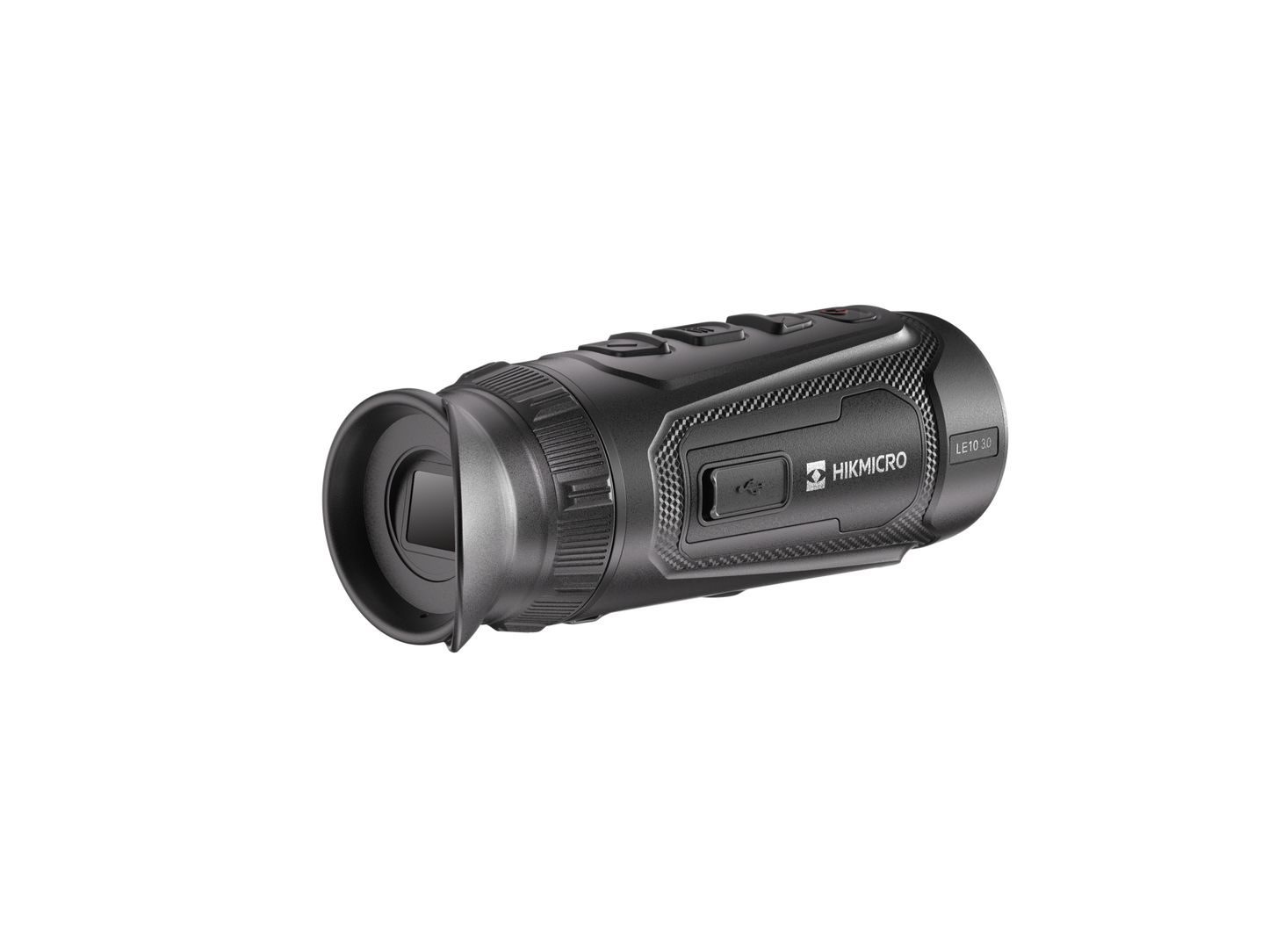

Hikmicro Lynx LE10 3.0 Thermal Monocular

The LE10 3.0 is the ultimate-valued thermal monocular for close-range observation. Featuring a 256 × 192
thermal detector and a 9.7 mm F1.0 lens, it offers a 1.4× base magnification and an 18° field of view, with a
detection range of up to 500 m. Compact, reliable, and lightweight, it is an excellent choice for quick and efficient
use in tight spaces.

● Key Feature
● High-sensitivity thermal module with NETD < 20 mK (@25° C, F# = 1.0).
● 9.7 mm, F1.0 lens with thermal detection range up to 500 m
● AI-powered Image Pro 3.0 algorithm
● HIKMICRO Shutterless Imaging System (HSIS)
● 0.39-inch OLED display with 1024 × 768 resolution
● Replaceable and rechargeable 18650 battery provides up to 5.5 hours of continuous operation at -20° C
● Lightweight design at 291.5 g, with a pocket-sized build

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length) 9.7 mm, f1.0
Focus Mode Focus Free
Detection Range 500 m
Min. Focusing Distance 3.4 m
Magnification 1.4× - 11.2× (8× )
Field of View(H × V), Degrees
/ m @100m 18.0° × 13.6°/31.7 m × 23.8 m

Image Display
Display 1024 × 768, 0.39-inch, AMOLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro N/A
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes

System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes

Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time
6-hour continuous running with hotspot on (@25°C)
5.5-hour continuous running with hotspot on (@-20°C)
Type-C Power Supply 5V DC, 2 A
Supports External Power Supply, Support Direct Charging

General
Protection Level IP67
Dimension 152.4 × 53.6 × 49.5 mm
Weight 291.5 g with battery
Working Temperature From -30°C to 45°C (-22°F to 113°F);
Humidity: 90% or Less
