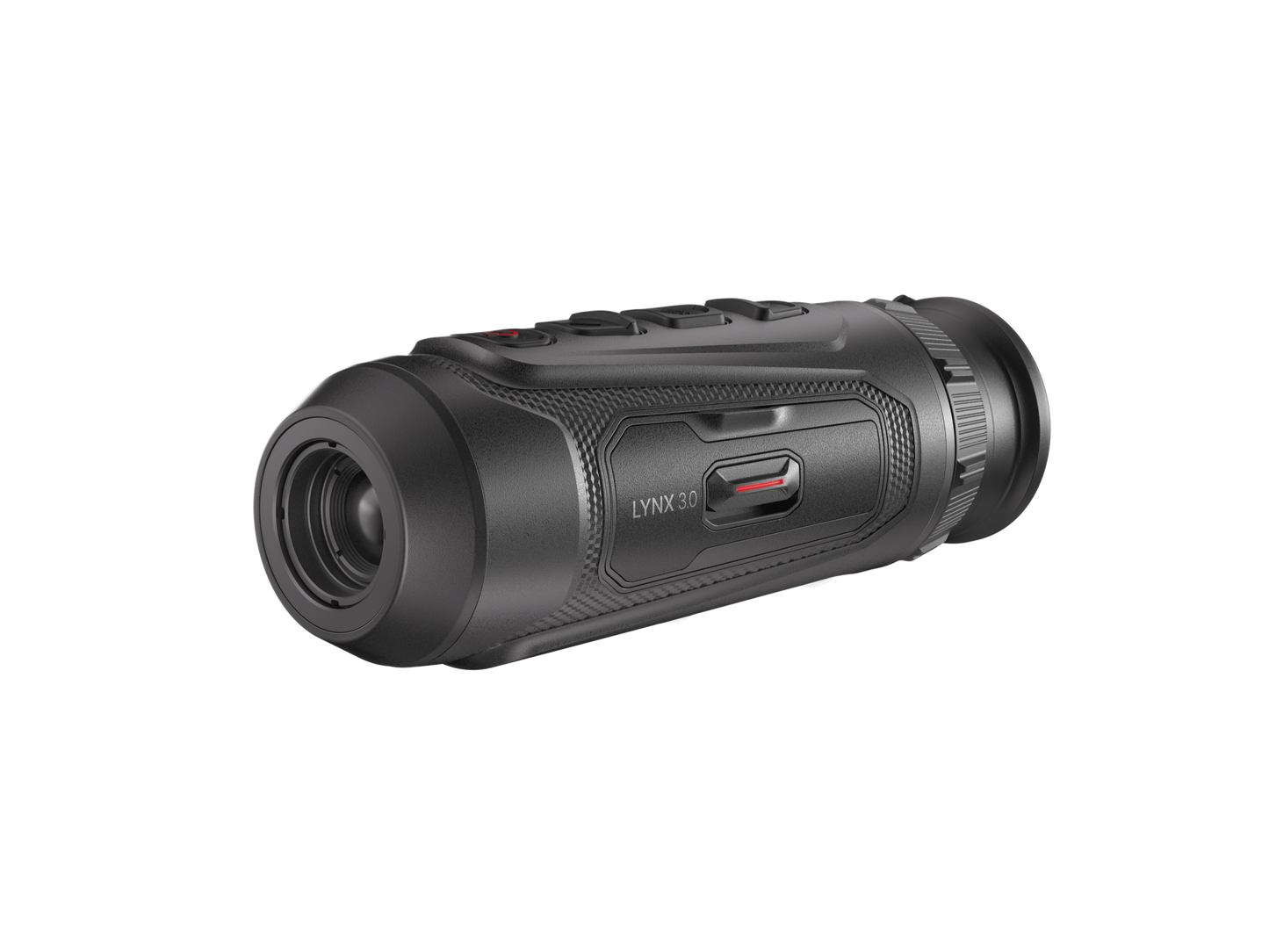

Hikmicro Lynx LH15 3.0 Thermal Monocular

The LH15 3.0 is the perfect choice for your first 20mK thermal monocular. Equipped with a high-performance
thermal detector and delivering a 320 × 240 image resolution, it features a 15mm F1.0 free-focus lens, offering
2.2× base magnification, an 11.7° field of view, and an impressive detection range of up to 750 m. With its
compact design and exceptional image quality, the LH15 3.0 is ideal for forest environments and mid-range
applications.
● Key Feature
● High-sensitivity thermal module with NETD < 18 mK (@25° C, F# = 1.0).
● 15 mm, F1.0 lens with thermal detection range up to 750 m
● AI-powered Image Pro 3.0 and Zoom Pro algorithms
● HIKMICRO Shutterless Imaging System (HSIS)
● 0.39-inch OLED display with 1024 × 768 resolution
● Replaceable and rechargeable 18650 battery provides up to 5 hours of continuous operation at -20° C
● Lightweight design at 296.5 g, with a pocket-sized build

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 320 × 240
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@25°C),F#=1.0
Lens (Focal Length) 15 mm, f1.0
Focus Mode Focus Free
Detection Range 750 m
Min. Focusing Distance 7.0 m
Magnification 2.2× - 17.6× (8× )
Field of View(H × V),
Degrees / m @100m
11.7° × 8.8°/20.5 m × 15.4 m
Image Display
Display 1024 × 768, 0.39 inch, AMOLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes

System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes

Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time
5.5-hour continuous running with hotspot on (@25°C)
5-hour continuous running with hotspot on (@-20°C)
Type-C Power Supply 5V DC, 2 A
Supports External Power Supply, Support Direct Charging
General
Protection Level IP67
Dimension 156.3 × 53.6 × 49.5 mm
Weight 296.5 g with battery
Working Temperature From -30°C to 45°C (-22°F to 113°F);
Humidity: 90% or Less
