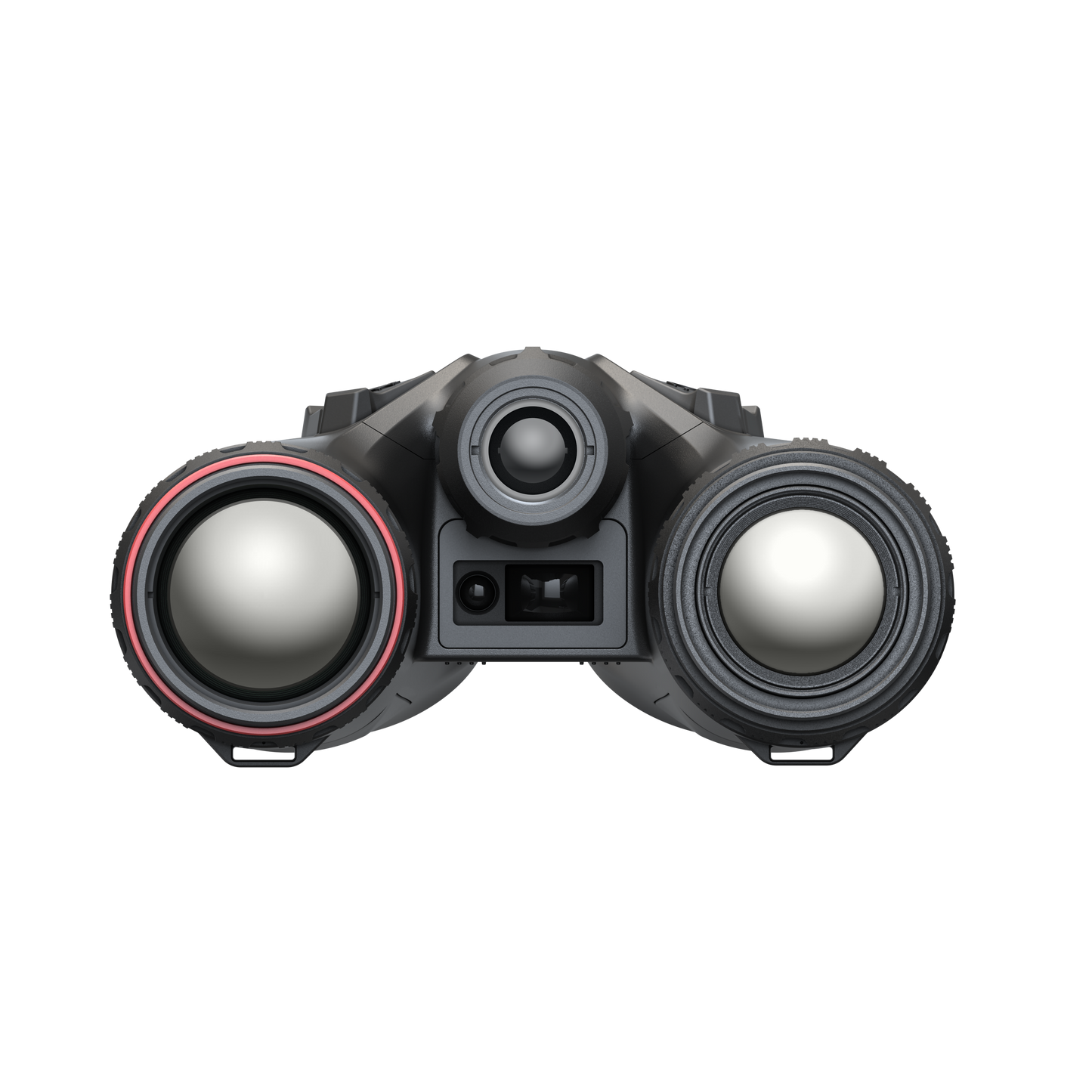

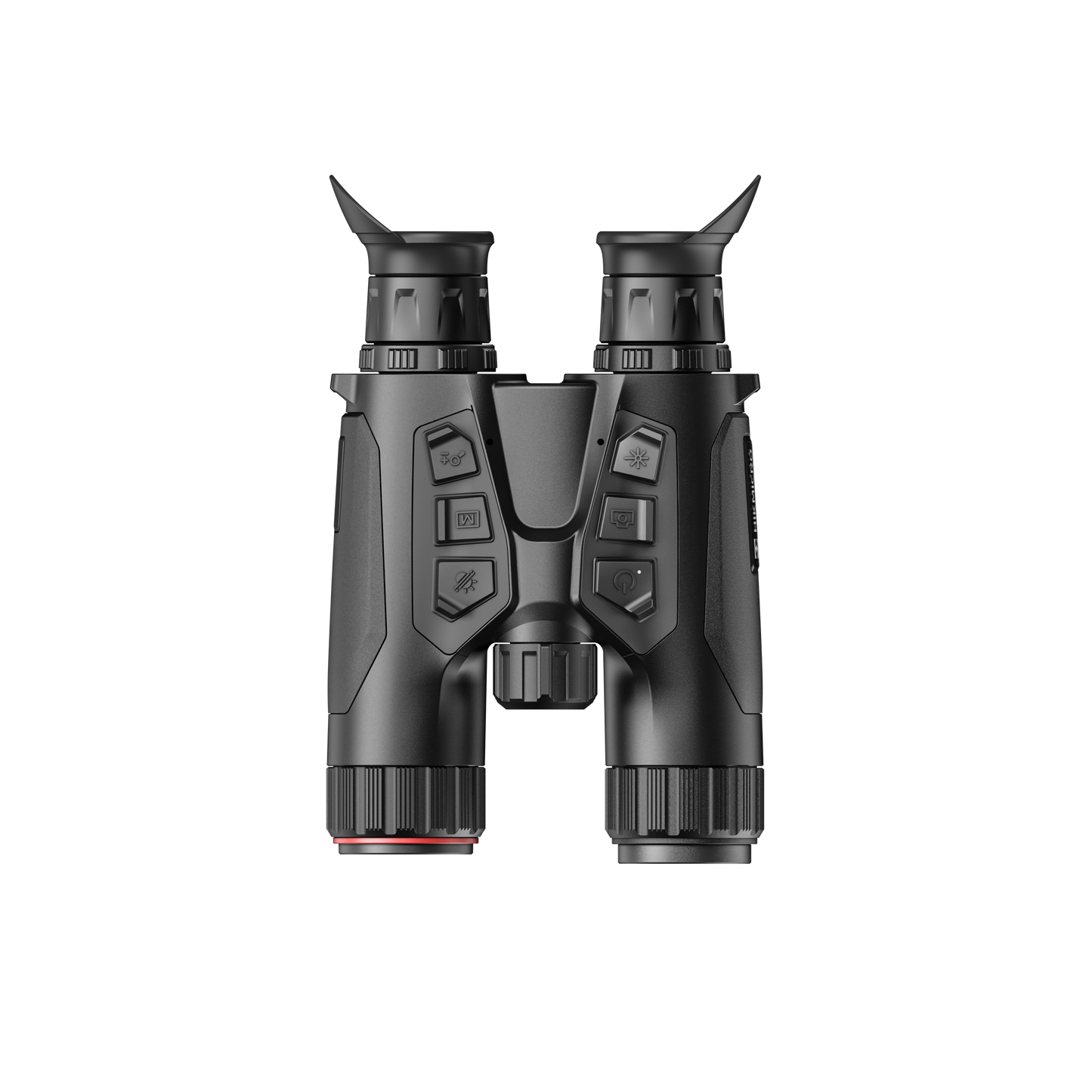

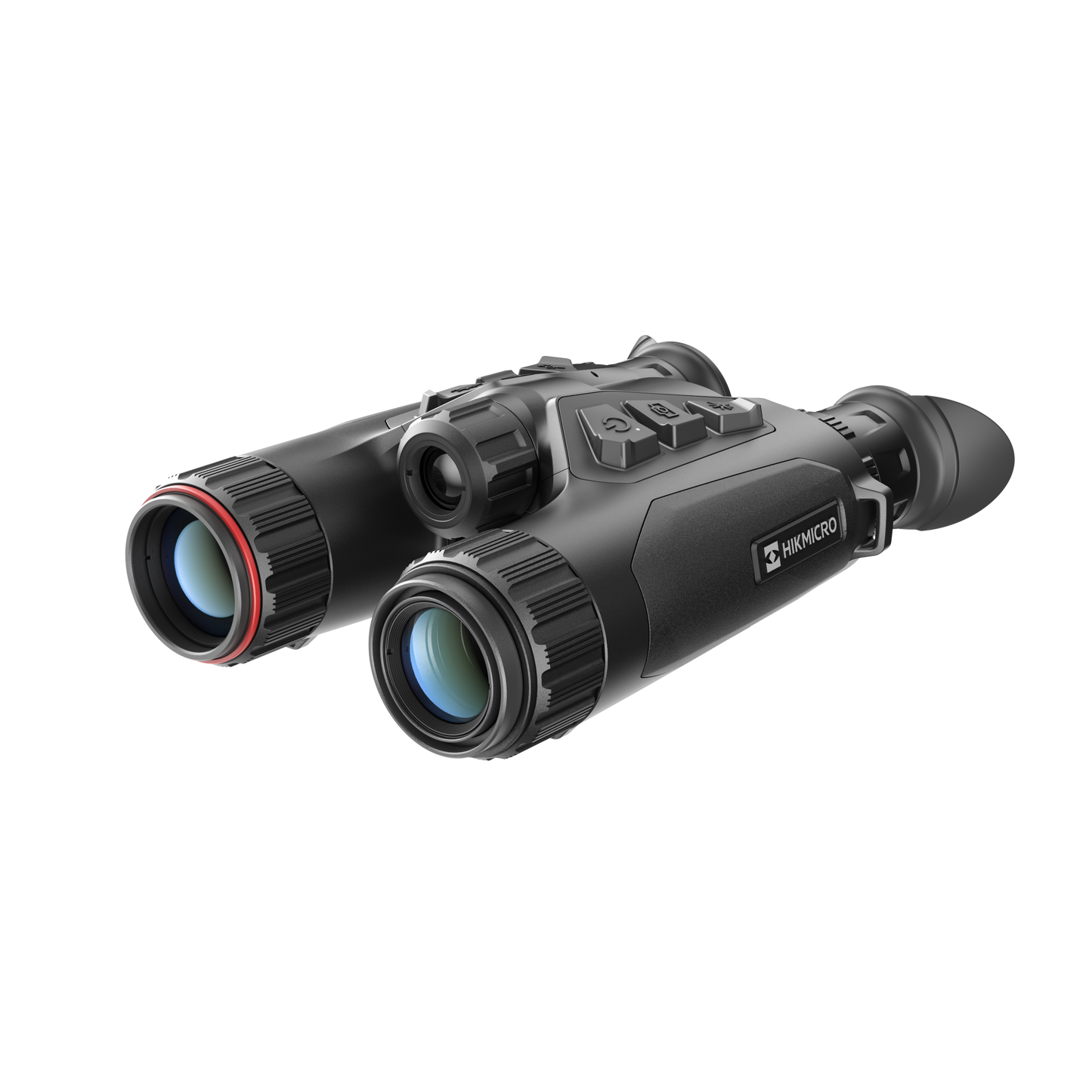

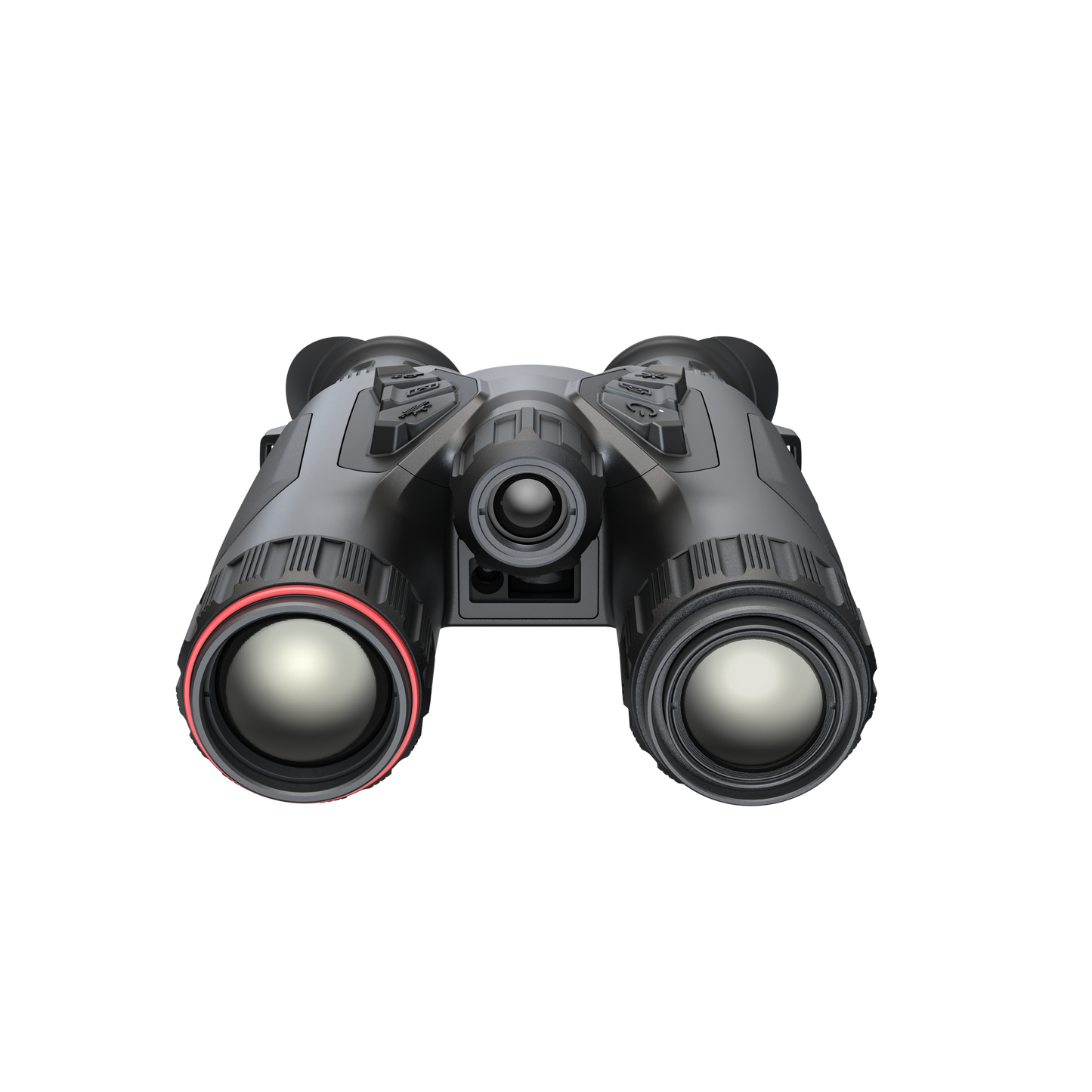

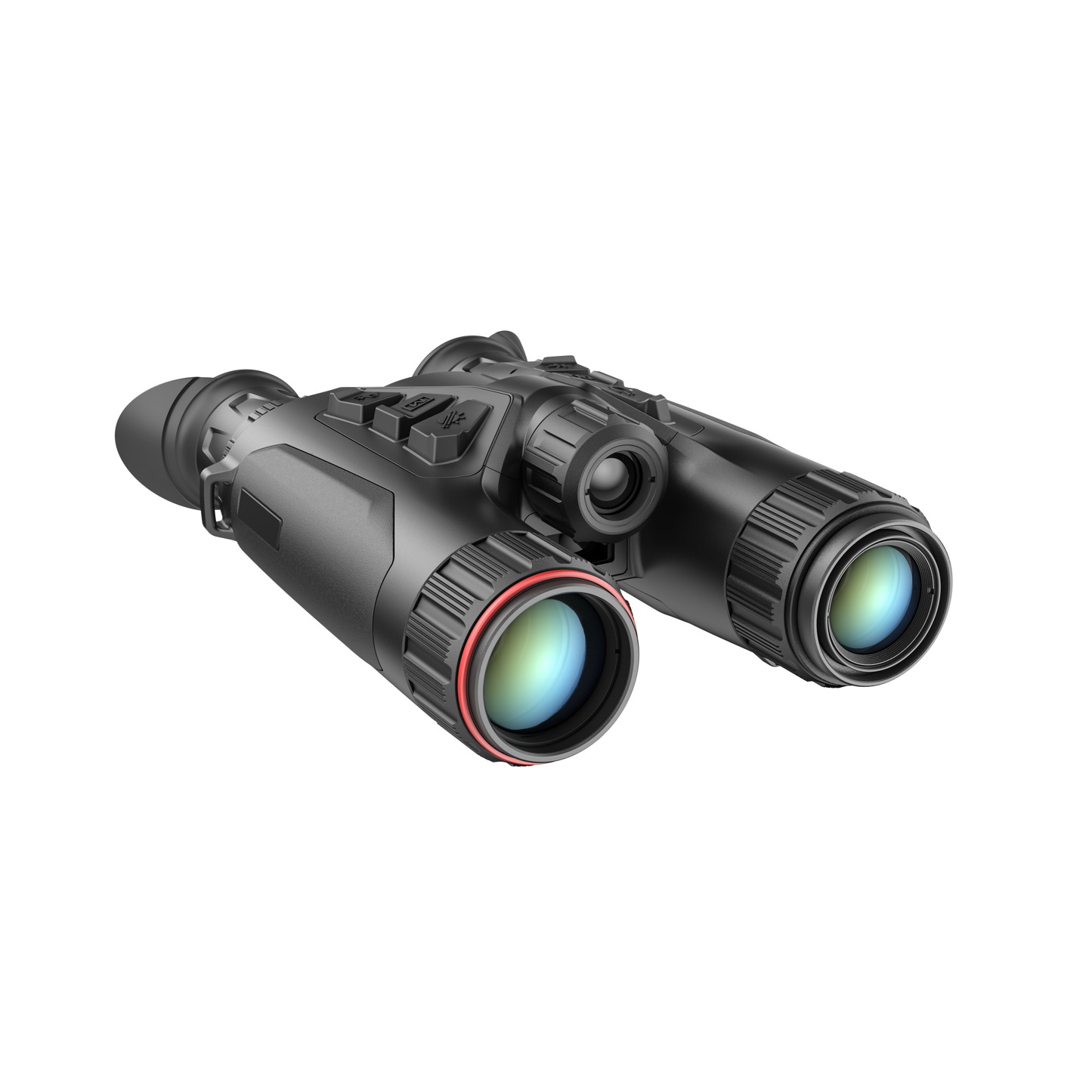

HIKMICRO HABROK 4K HE25L 5.5-22X60

HE25L 5.5-22X60
Multi-Spectrum Binocular
HIKMICRO HABROK 4K HE25L 5.5-22X60 is a powerful and innovative digital and thermal binocular designed
especially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x-22x
@60 mm lens, and a 1000 m laser rangefinder, this all-in-one binocular can be mainly applied in forest & field
hunting, birding, animal searching, adventuring, and rescuing in various weather conditions.
Key Feature
● 256 × 192 resolution @12 μm thermal detector
● High sensitivity thermal module NETD < 35 mK (@25°C, F# = 1.0)
● 25 mm, F1.0 lens with thermal detection range up to 1200 m
● 3840 × 2160 4K ultra high-resolution CMOS detector
● 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom
● 1920 × 1080 resolution 0.49-inch OLED display
● Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance
● 795 g lightweight, with a compact and ergonomic design
Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 35 mK (@25°C), F# = 1.0
Lens (Focal Length) 25 mm, F1.0
Focus Mode Focus Ring
Detection Range 1200 m
Min. Focusing Distance 3 m
Magnification 4.3x to 17.2x (4x)
Field of View(H × V), Degrees/
m @100m
7.0° × 5.3°/12.2 m × 9.3 m
Optical Module
Image Sensor 1.88'' Progressive Scan CMOS
Max. Resolution 3840 × 2160
Focal Length 60 mm, F2.2
Min. Working Distance 8 m
Focus Mode Focus Ring
Magnification 5.5x to 22.0x（4x)
Field of View (H × V),
Degrees/m @100 m
6.9°× 4.1°/12.0 m × 7.2 m
Smart IR Yes
IR Illuminator Wavelength 850 nm
Viewing Range at Night 400 m
Image Display
Display 0.49 inch, OLED, 1920 ×1080
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction)
Mode
Auto, Manual, External Correction
Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5 D to +3 D
Brightness Adjustment Yes
Tone Adjustment Cold, warm
Contrast Adjustment Yes
Zoom Pro Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Digital Magnetic Compass Yes
GPS Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery
Battery Operating Time ≥ 8 h (25℃, with hotspot off)
Type-C Power Supply
5 VDC, 2 A
Supports External Power Supply
General
Protection Level IP67
Dimension 138 mm × 68.2 mm × 223 mm (5.4" × 2.7" × 8.6")
Working Temperature -30℃ to +55℃
Weight 795 g without batteries
Interpupillary Adjustment
Range
60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
 Available Model
HM-TS92-25S2G/WLVE-HE25L
 Dimension
 Accessories
COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or
regions, including without limitation, the United States, European Union, United Kingdom and/or other member
countries of the Wassenaar Arrangement. Please consult your professional legal or compliance expert or local
government authorities for any necessary export license requirements if you intend to transfer, export, re-export the
thermal series products between different countries.
