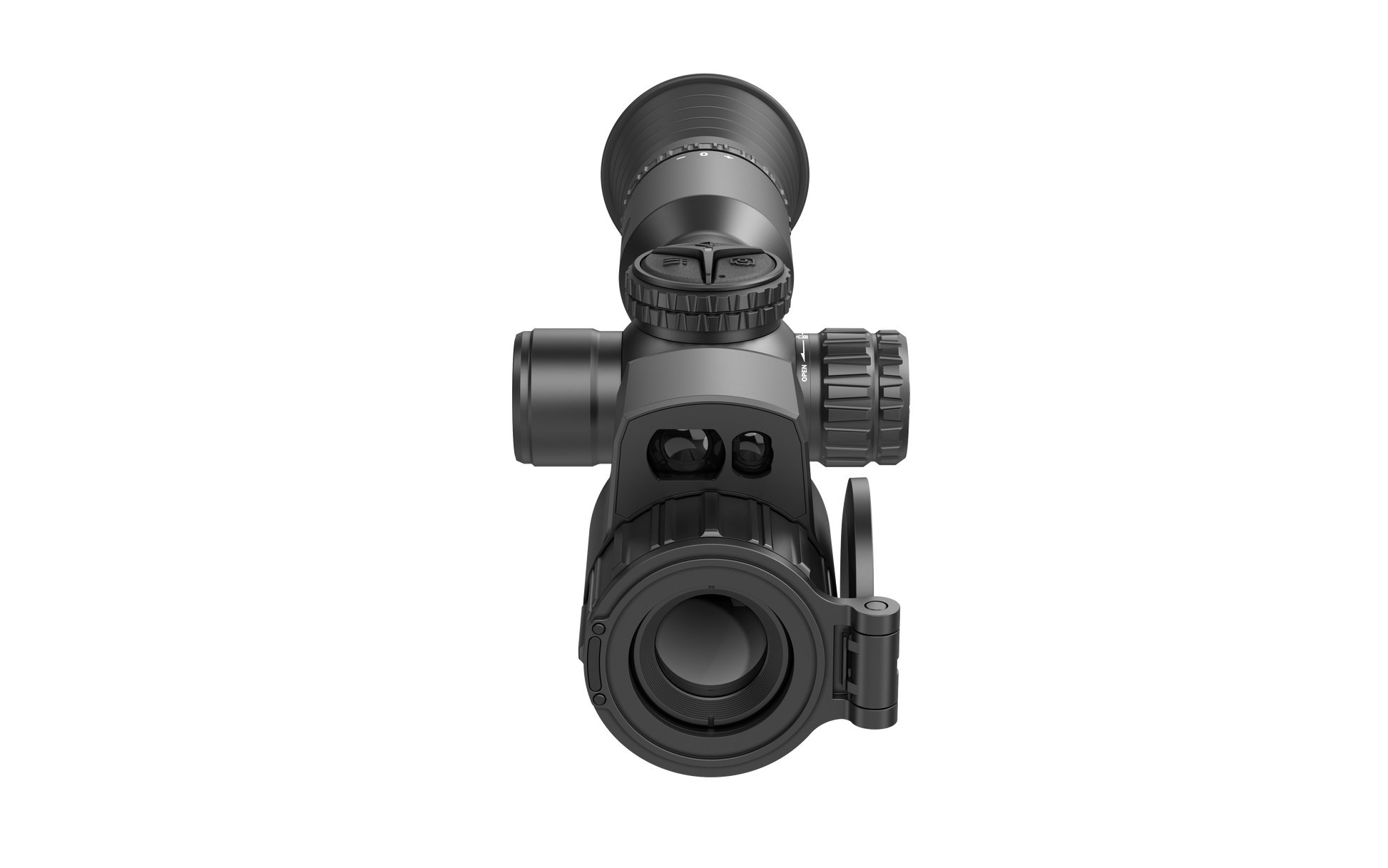

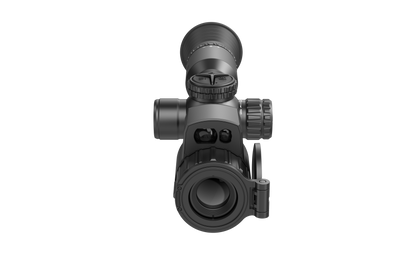

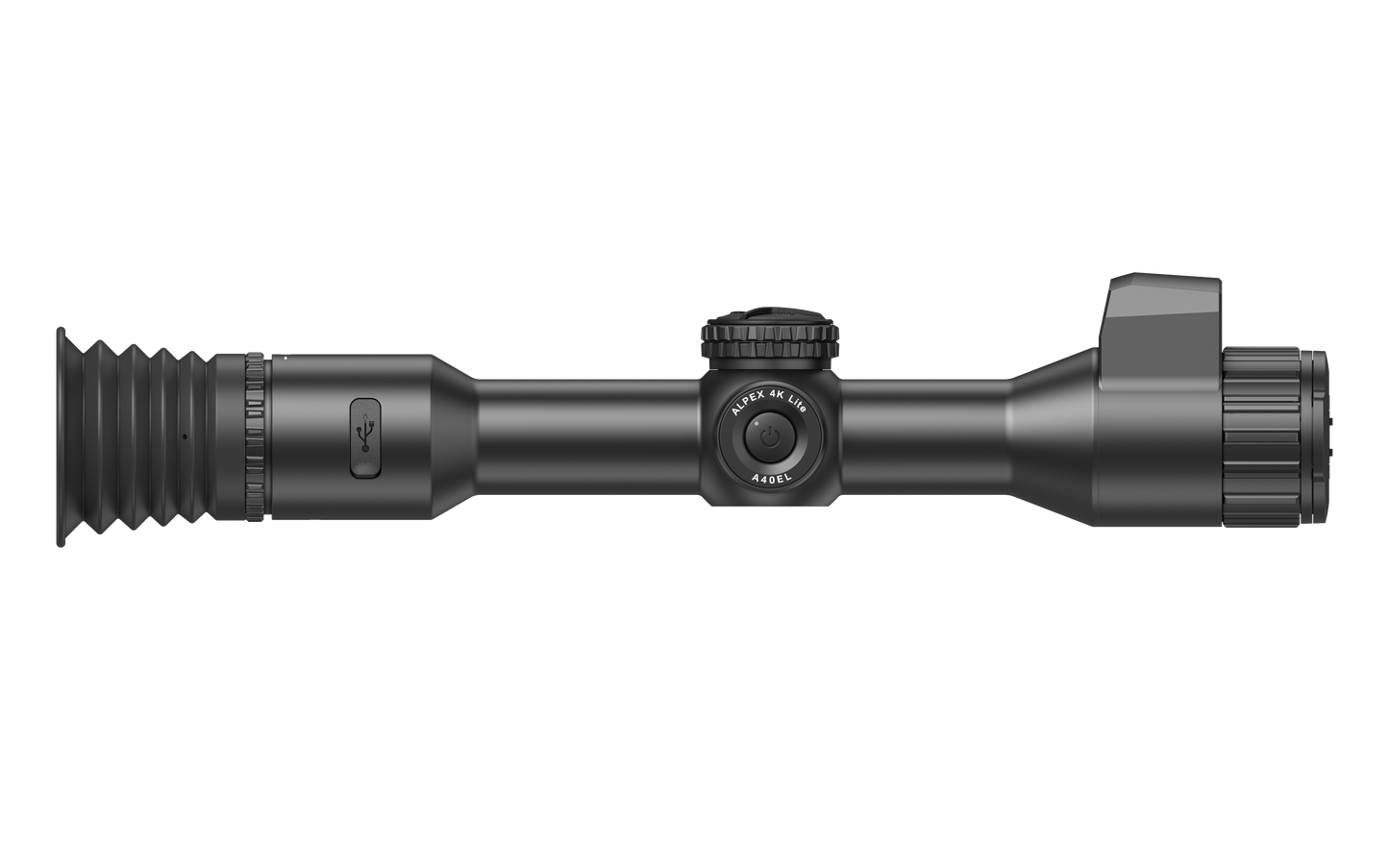

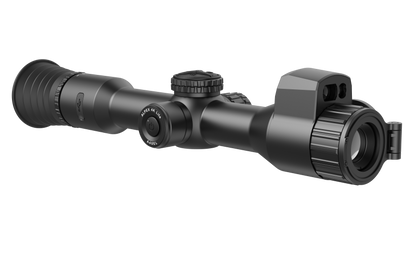

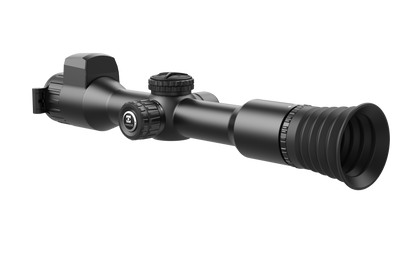

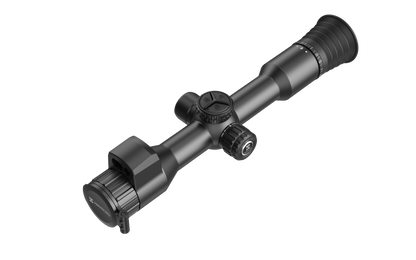

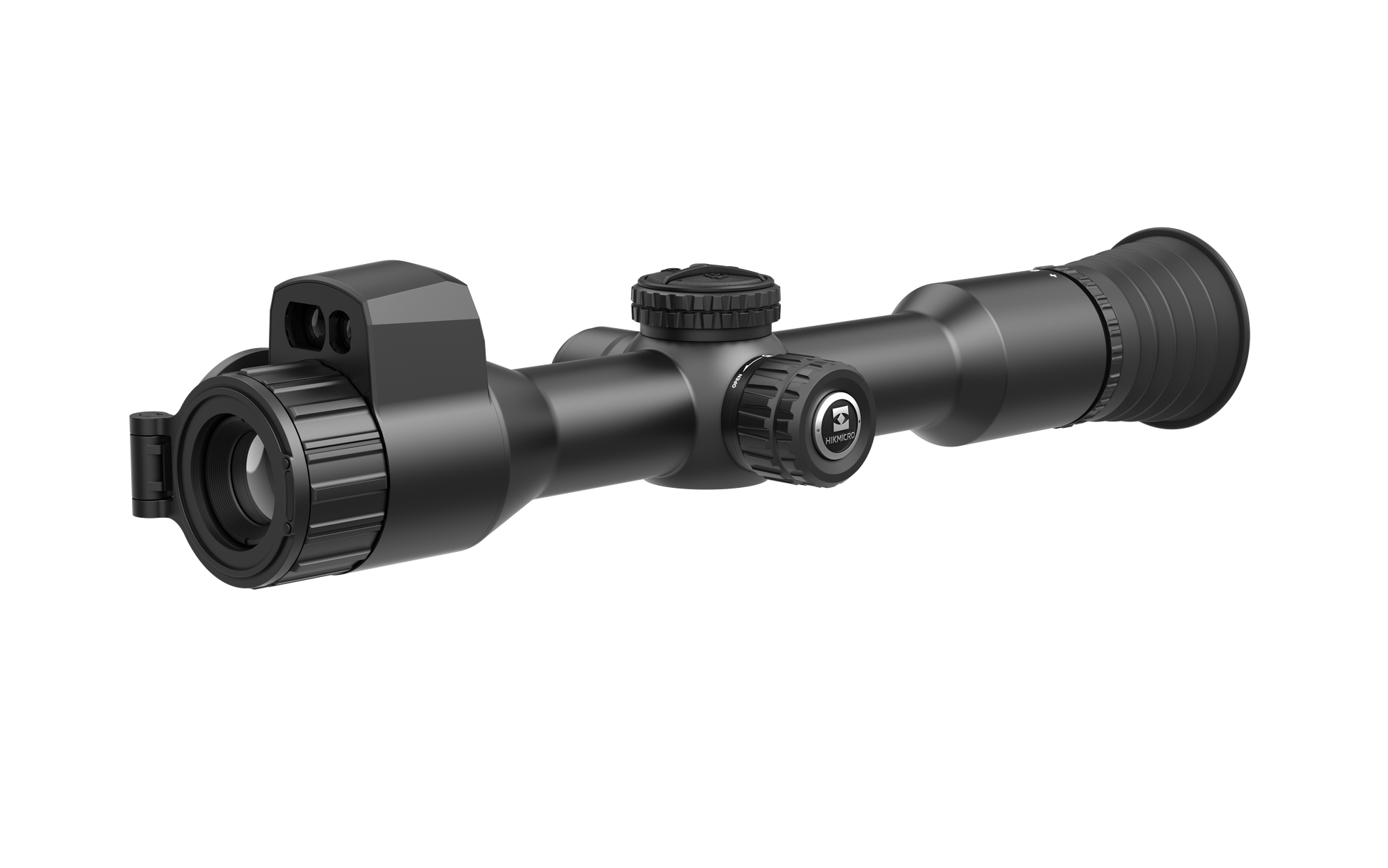

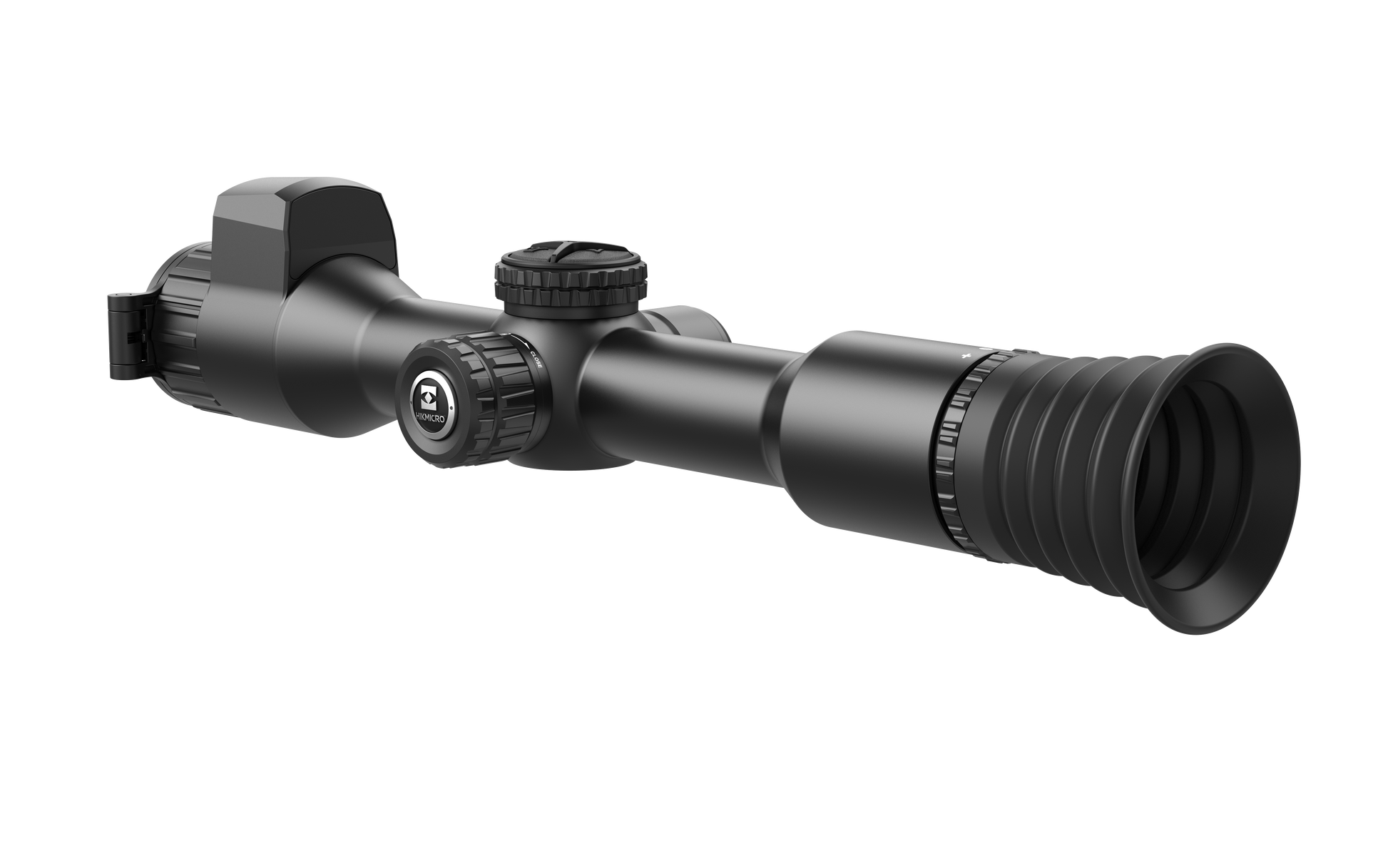

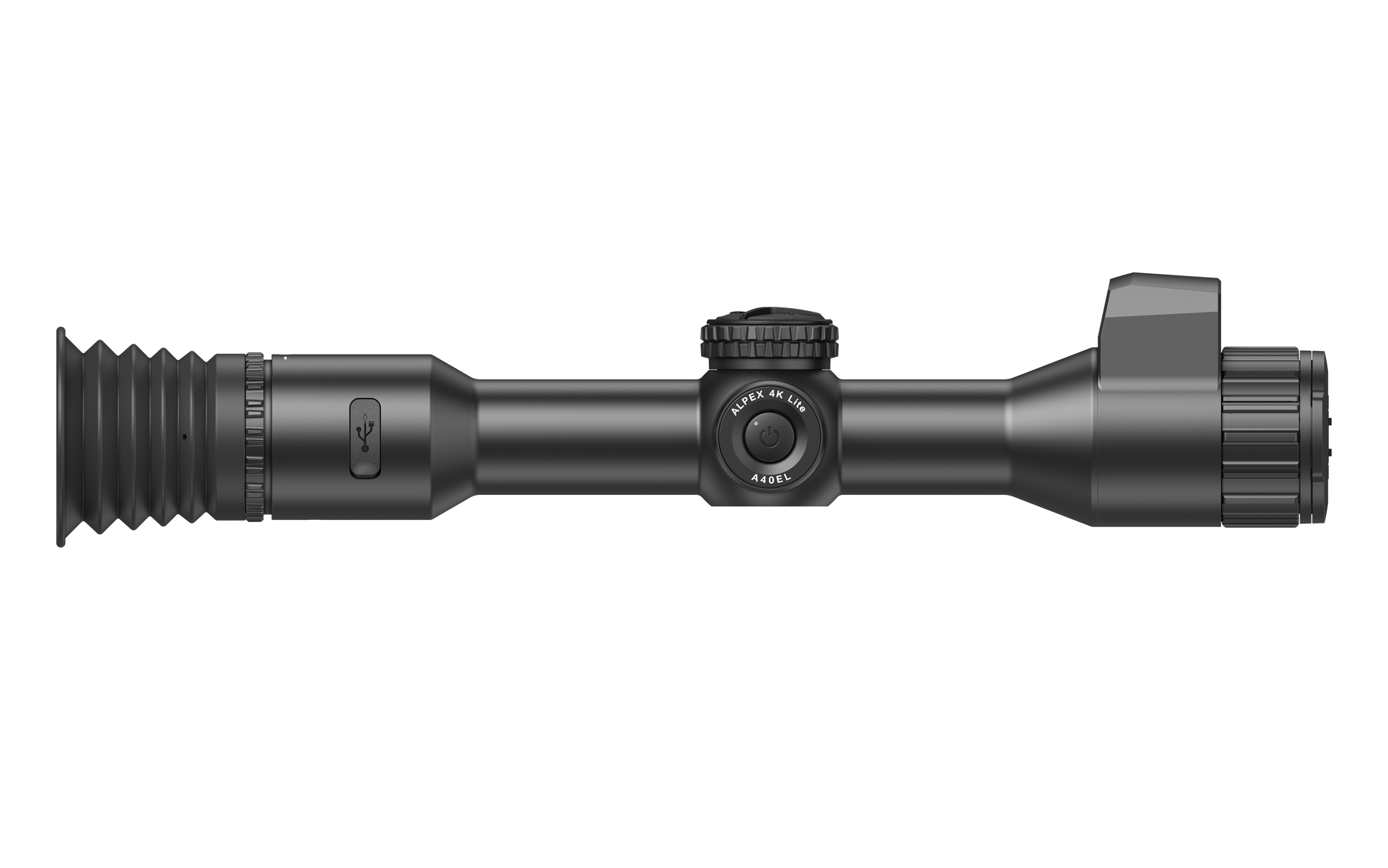

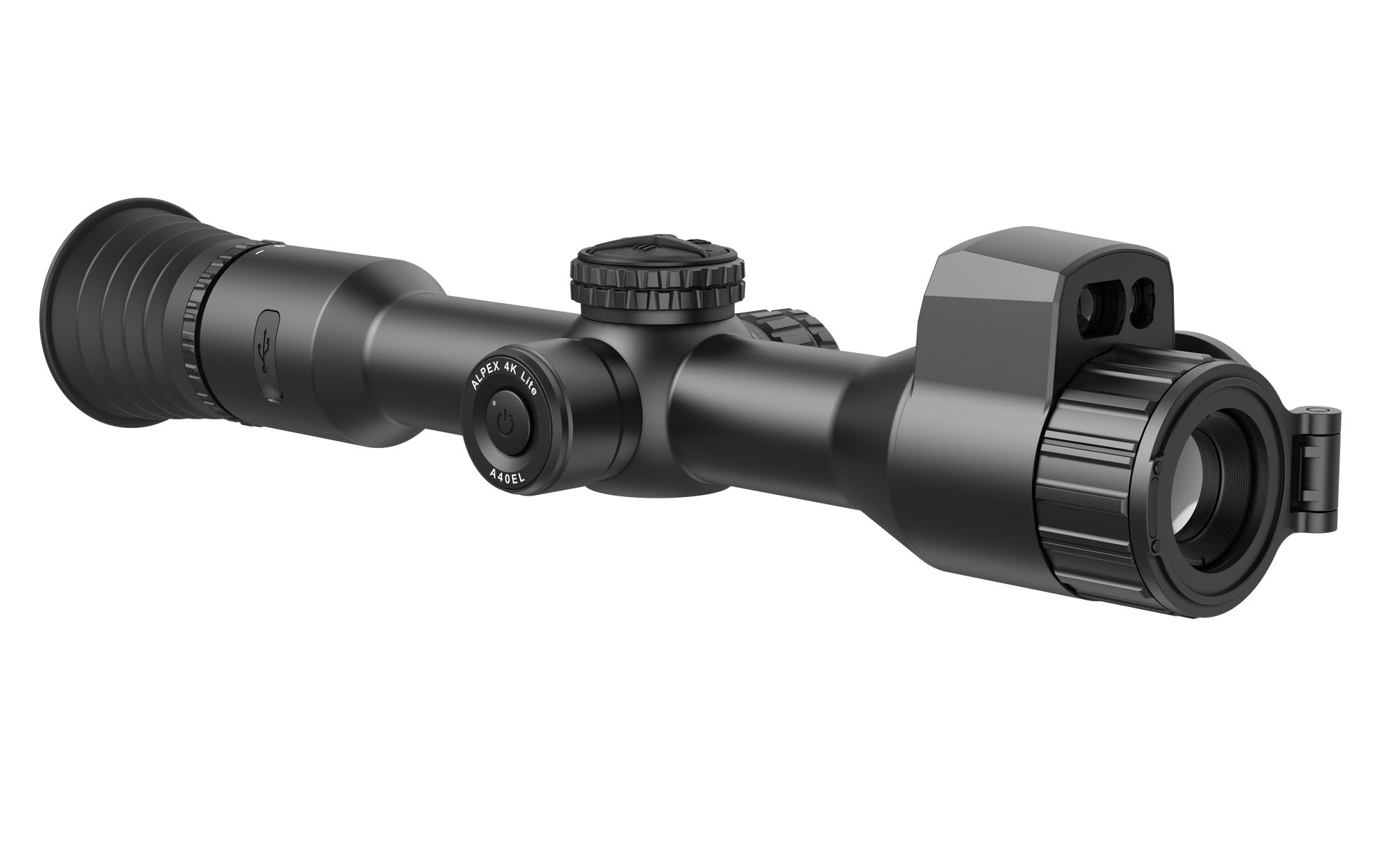

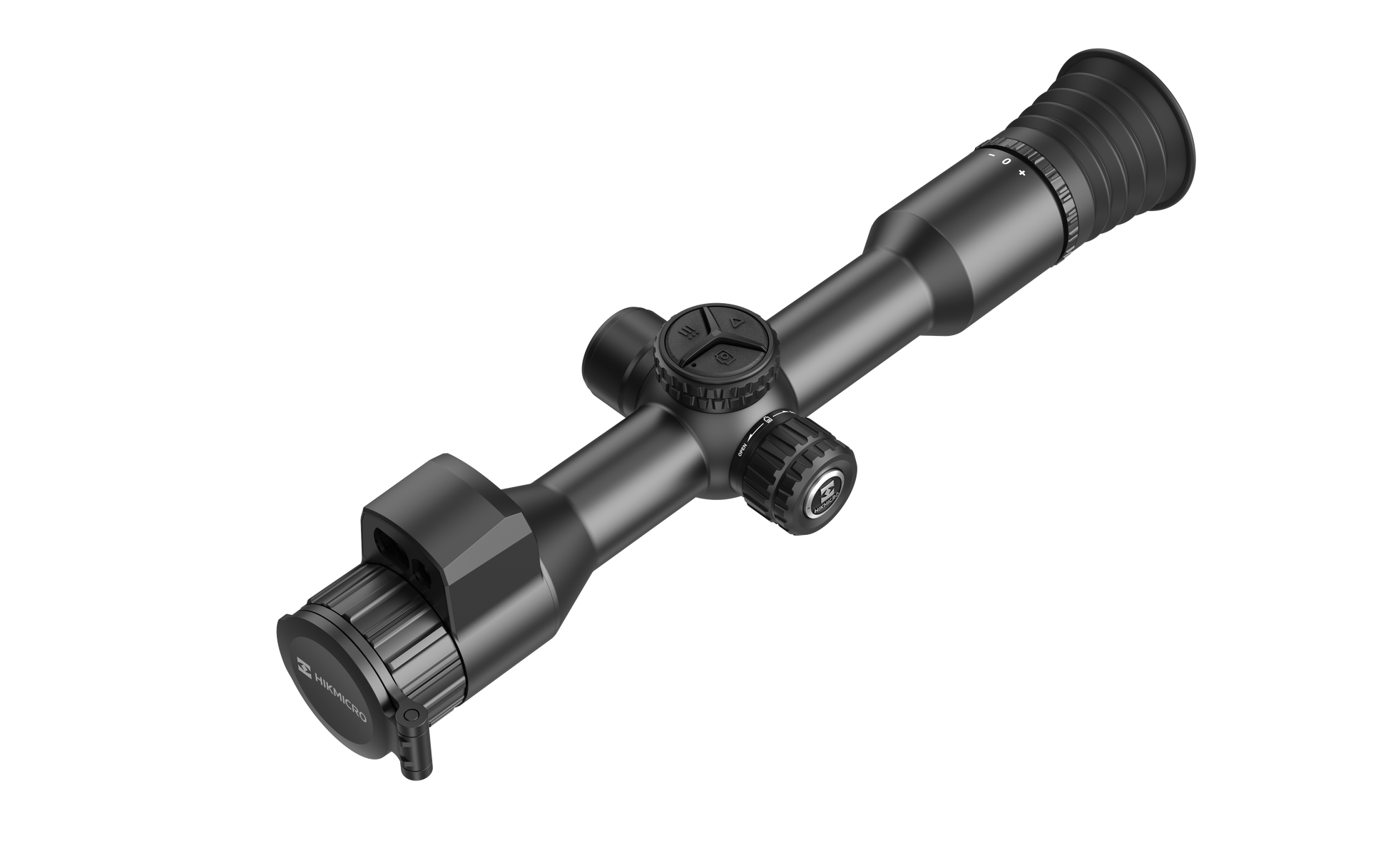

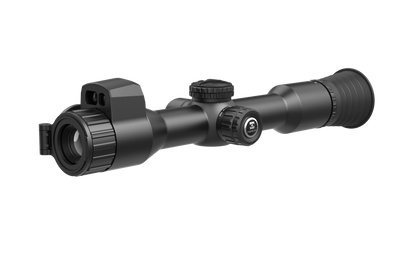

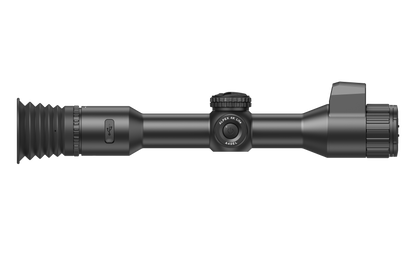

Hikmicro Alpex A40EL Digital Day & Night Vision Scope

HIKMICRO ALPEX 4K A40EL Digital Day & Night Vision Scope A40EL features a 40 mm/F2.0 lens, a 4K UHD
detector, and an integrated 1000 m laser rangefinder, providing hunters with exceptional precision and a suitable
field of view for pest control or small game hunting. An optional IR torch enhances nighttime performance.
Key Feature
● 3840 × 2160 resolution CMOS detector
● 40 mm lens with F2.0 aperture
● 1920 × 1080 resolution 0.49-inch OLED display (square & round optional)
● Built-in laser rangefinder up to 1000m range
● Supports Day/Night/Auto/Green/Yellow mode
● Supports recoil-activation recording with audio, built-in EMMC (32 GB)
● Up to 7 hours of continuous operation
● Replaceable and rechargeable external battery
◼
Specification
Main
Max. Resolution 3840 × 2160
Frame Rate 50 Hz (4K), 100 Hz (1080P)
Lens (Focal Length) 40 mm, F2.0
Detection Range Day: 800 m
Min. Focusing Distance 2 m
Magnification 3.5× to 20.5× (5.8×)
Support continuous zooming and 0.5×, 1×, 2×, 3×, 4× optional step value
Field of View 10.7° × 6.1° / 18.7 m × 10.1 m @100 m
Image Display
Display 1920 × 1080, 0.49 inch, OLED
Image Mode Day, Night, Auto, Green, Yellow
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter (Range) -5 D to 5 D
System
Record Video On-board Video Recording
Record Video Resolution 1920 × 1080
Capture Snapshot Yes
Audio Recording Yes
Recoil-activation Recording Yes
Standby Mode Yes
Storage Built-in EMMC (32 GB)
PIP Yes
Freeze Zeroing Yes
Zeroing Profiles 5
Max. Recoil 1000 g/0.4 ms
Hotspot Yes
Ballistic Calculation Yes
Click Value 1 click = 1cm @ 100 m
Power Supply
Battery Type One Rechargeable Lithium Battery (Internal), One Replaceable and
Rechargeable18650 Battery (External)
Battery Operating Time 7 hours of Continuous Running (@25°C, Hotspot off)
Power Supply 5 VDC/2 A, USB Type-C Interface
Only internal battery support direct charge
General
Mounting Standard 30 mm
Protection Level IP67
Working Temperature -30°C to 55°C (-22°F to 131°F)
Dimension 280.7 mm × 86.1 mm × 66.3 mm (without eyepiece)
Weight 474 g without External Battery
Laser Rangefinder
Safety Class for Laser Class1
Wavelength 905 nm
Min. Measuring Range 3 m
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
