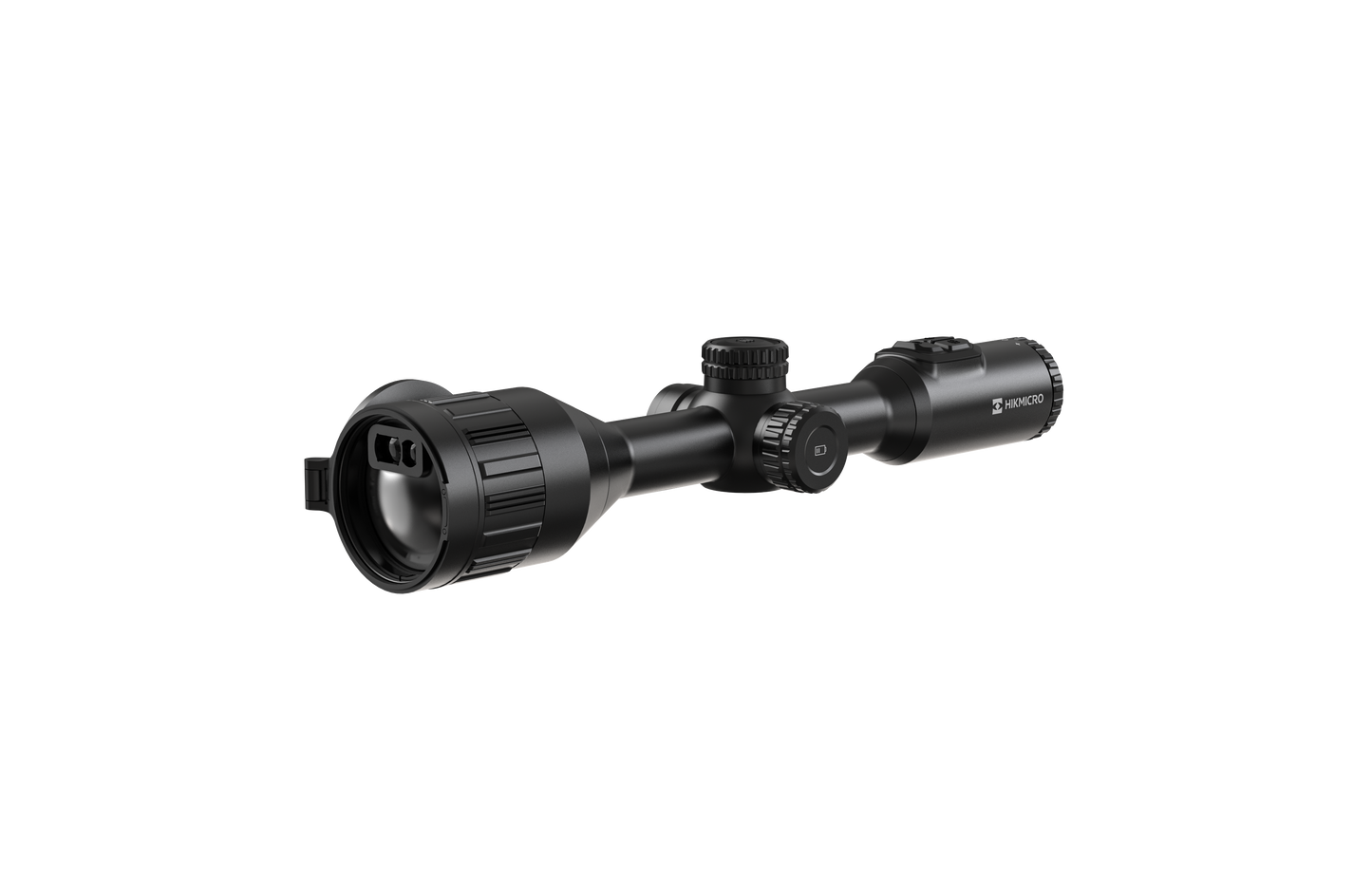

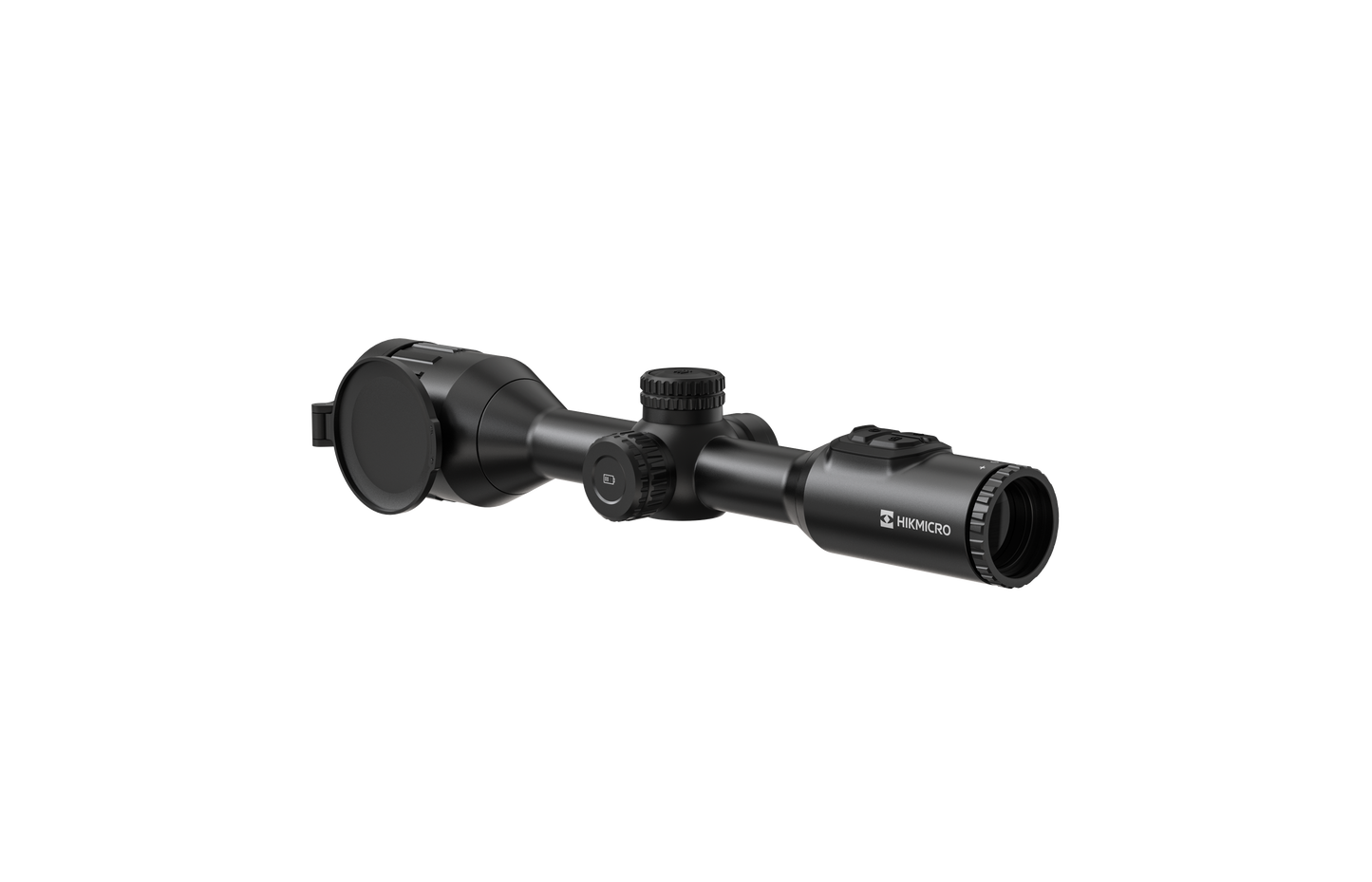

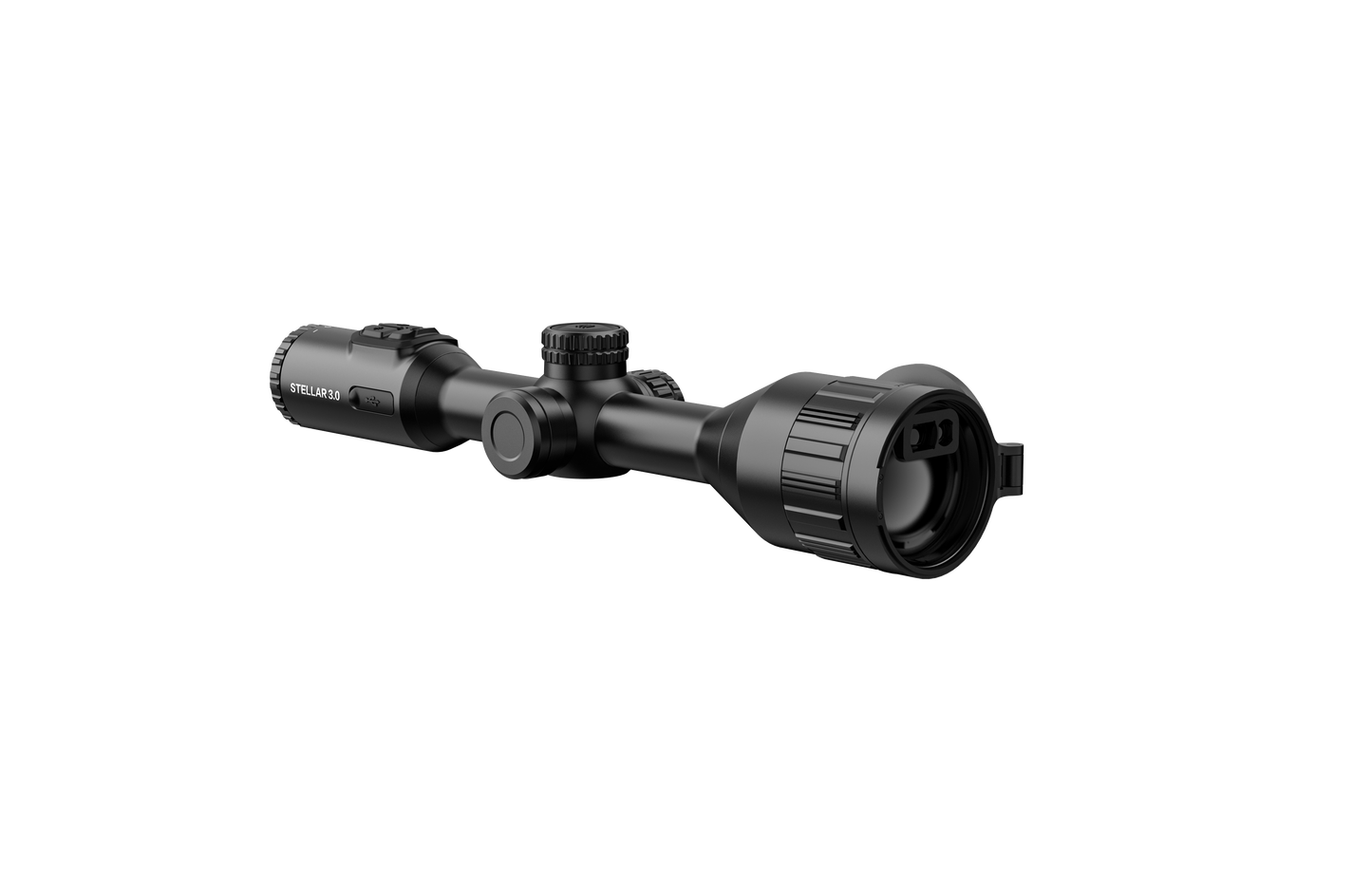

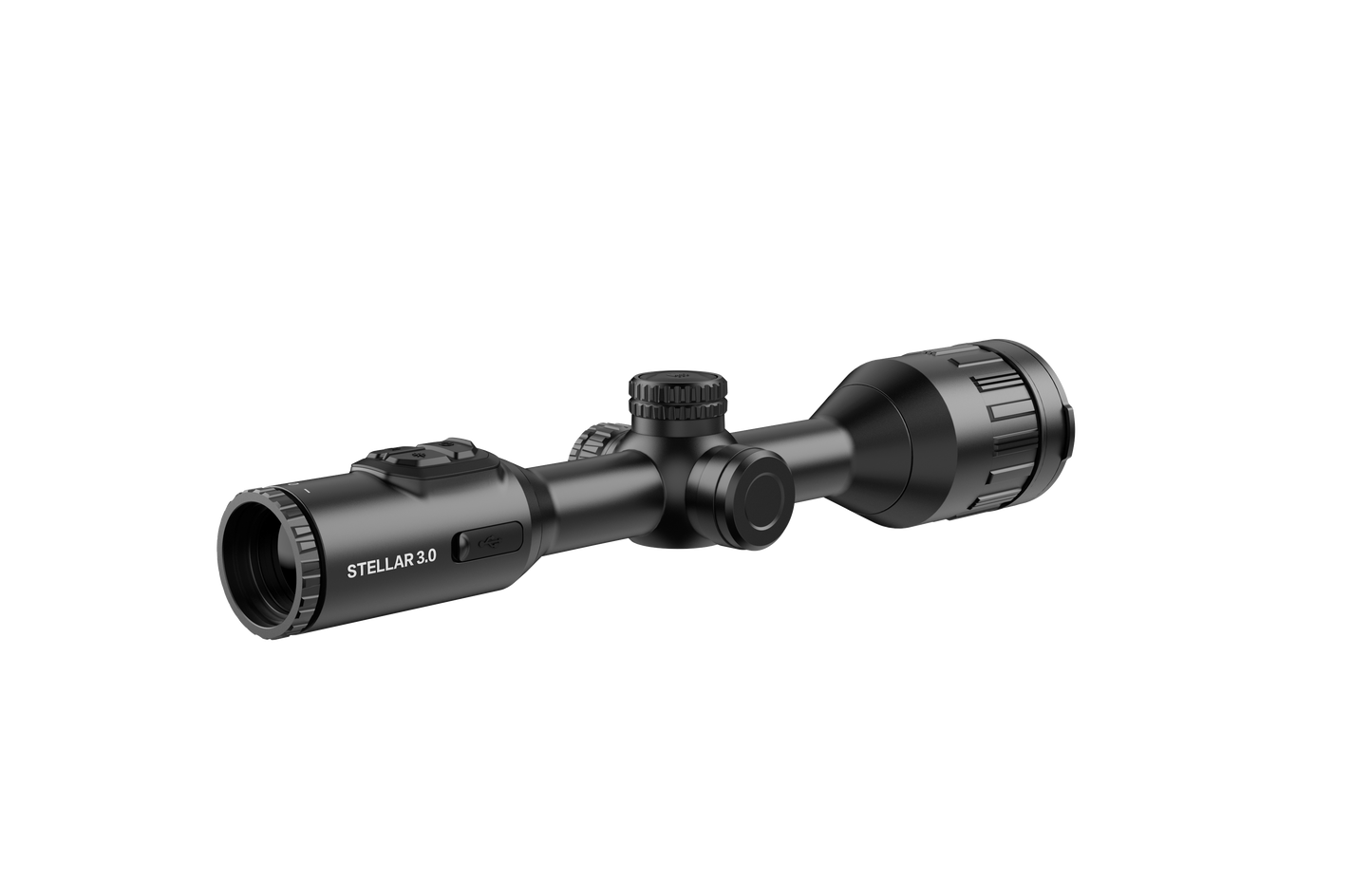

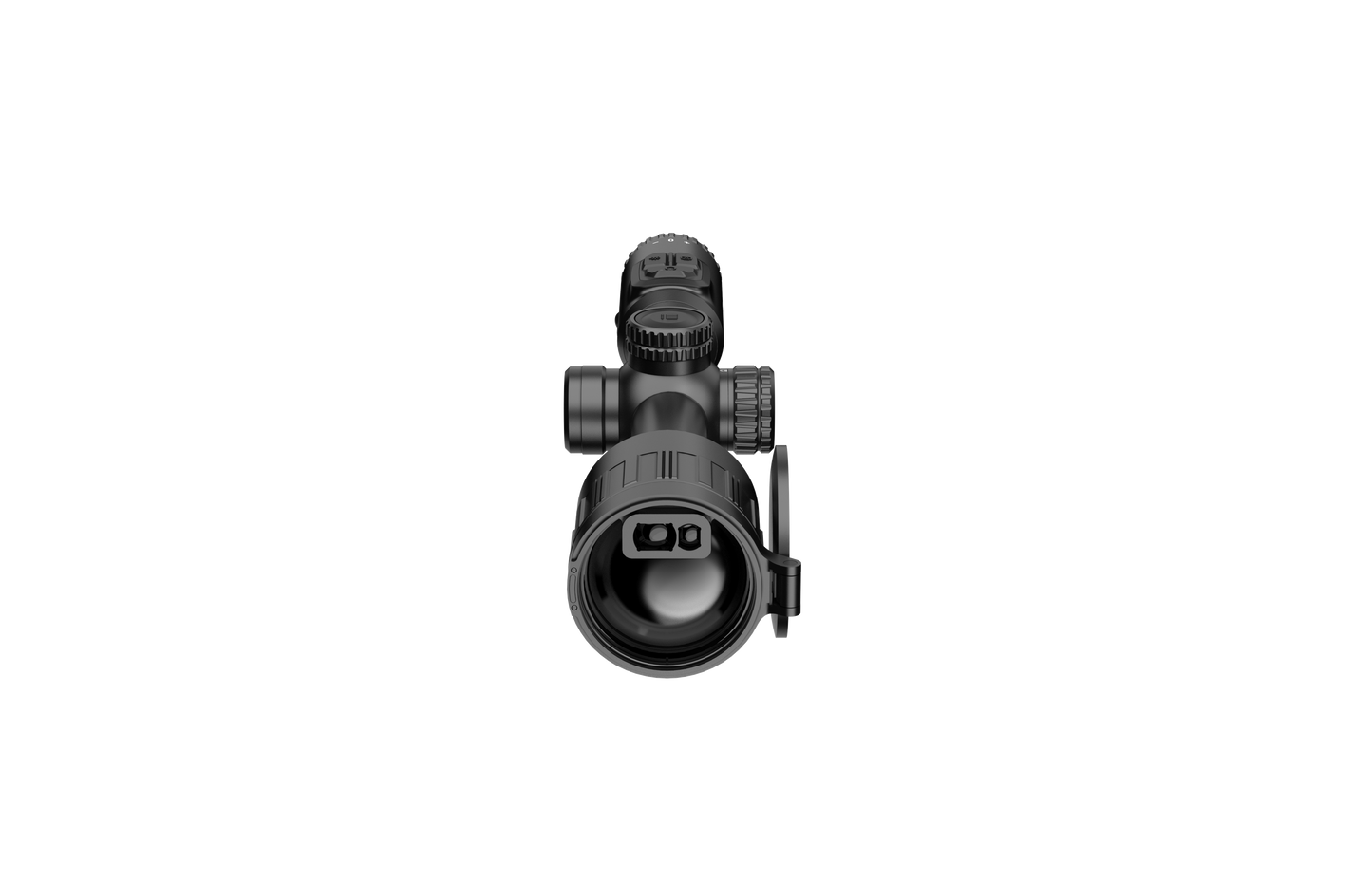

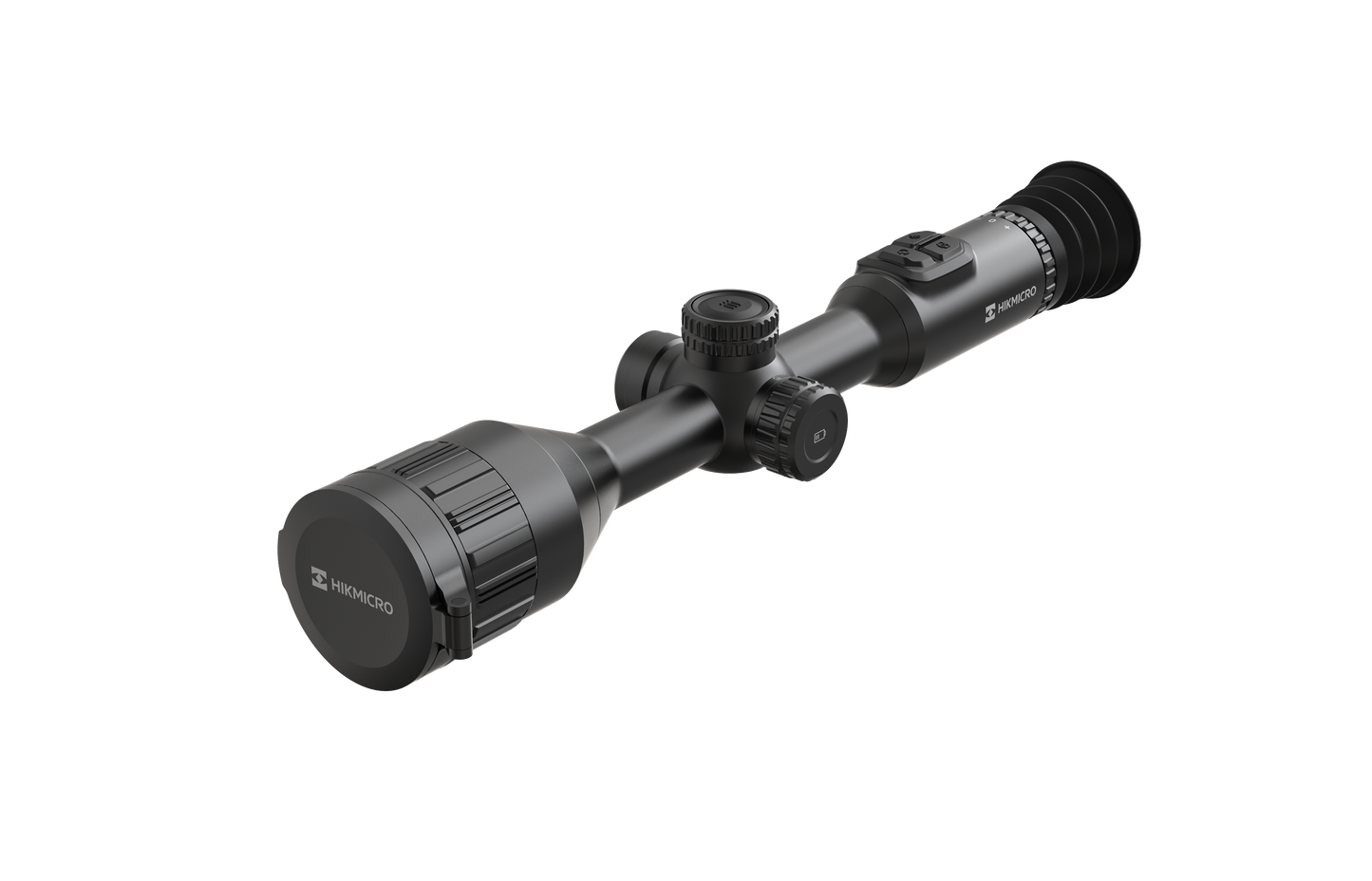

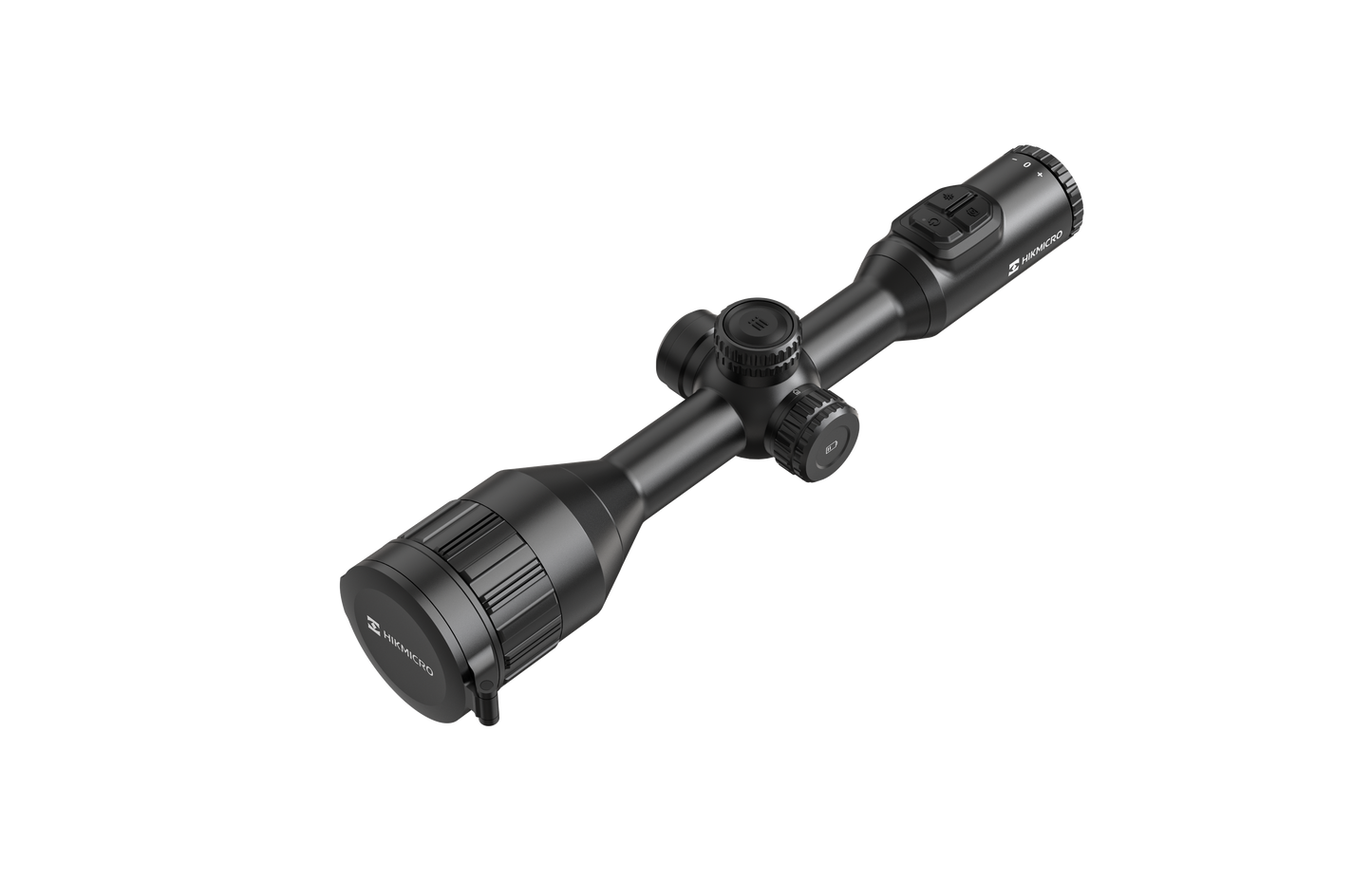

HIKMICRO Stellar SQ50L 3.0 Thermal System

Dominate the Darkness with Precision.

HIKMICRO Stellar SQ50L 3.0 Digital Thermal System. The SQ50L 3.0 is equipped with a 640 × 512 @ 12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless system (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2,560 × 2,560 1.03” OLED larger display, SQ50L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1,000 m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest hunting.

Description

HIKMICRO Stellar SQ50L 3.0 Digital Thermal System.

The SQ50L 3.0 is equipped with a 640 × 512 @ 12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless system (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2,560 × 2,560 1.03” OLED larger display, SQ50L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1,000 m LRF and ballistic calculation contribute to more accurate targeting. This system is mainly used for field and forest hunting.

The Manufacture:

HIKMICRO is one of the leading manufacturers in thermal imaging equipment and the company’s goal is to make high quality equipment for professionals available for the commercial market. HIKMICRO is an affiliate business from World Leader security camera Hikvision group established in 2001. Hikvision group has 9.2 B$ revenues employing 42000 people in the world.

Key Features

• 640 x 512 resolution @ 12 μm thermal detector
• High sensitivity thermal module NETD<15 mK (@ 25°C, F# = 1.0)
• 50 mm, F1.0 lens with detection range up to 2,600 m
• 2,560 × 2,560 resolution 1.03-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• Built-in lens laser rangefinder up to 1,000 m, with ballistic calculation
• Rechargeable internal batteries and external battery, 9h continuous operation
• High shock resistance up to 1,000 g/0.4 ms

  Technical Specifications

  Thermal Module

  • Image Sensor: VOx Uncooled Focal Plane Arrays
  • Resolution: 640 × 512
  • Frame Rate: 50 Hz
  • Pixel Interval: 12 μm
  • Response Waveband: 8 μm to 14 μm
  • NETD: Less than 15 mK (@ 25°C, F# = 1.0)
  • Lens (Focal Length): 50 mm, F1.0
  • Focus Mode: Focus Ring
  • Detection Range: 2,600 m
  • Focusing Distance: 5 meters
  • Magnification: 3.6×-26.6×; Support 1× step value of continuous zooming
  • Field of View (H×V), Degrees / m @100 m: 8.8°× 7.0°/15.4 m ×12.3 m
  • Image Display



  • Display: 2,560 × 2,560, 1.03-inch OLED
  • Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
  • Exit Pupil: 6 mm
  • Eye Relief: 45 mm
  • Diopter (Range): -5D to 3D
  • Brightness Adjustment: Yes
  • Tone Adjustment: Cold, Warm
  • Contrast Adjustment: Yes
  • Zoom Pro: Yes
  • Image Pro 2.0: Yes
  • HSIS (HIKMICRO Shutterless Image System): Yes

  System

  • Record Video: On-board Video Recording
  • Capture Snapshot: Yes
  • Audio Recording: Yes
  • Recoil-activation Recording: Yes
  • Standby Mode : Yes
  • Storage: Built-in EMMC (64 GB)
  • PIP: Yes
  • Hotspot: Yes
  • Hot Track: Yes
  • Distance Measurement: Yes
  • Zeroing Profiles: 5
  • Recoil: 1,000 g/0.4 ms
  • Freeze Zeroing: Yes
  • Local Album: Yes



  Power Supply

  • Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
  • Battery Operating Time: 9 hours continuous running (@ -20°C, Zoom Pro, LRF on)
  • Type-C Power Supply : 5 V DC/2 A, USB Type-C interface; Supports QC3.0

  General

  • Mounting: Standard 30 mm
  • Protection Level: IP67
  • Dimension: 422.5 mm × 88.4 mm × 74.5 mm
  • Weight: 860 g without external battery
  • Working Temperature: -30°C to 55°C (-22°F to 131°F)
  • Centre Height: 36 mm

  Laser Rangefinder

  • Safety Class for Laser: Class 1
  • Wavelength: 905 nm
  • Measuring Range: 1,000 m
  • Measurement Accuracy: ±1 m
  • Measuring Range: 10 m




  • What's In The Box

    • HIKMICRO Stellar SQ50L 3.0 Digital Thermal System x1
    • Battery x2
    • Battery Charger x1
    • Quick Start Guide x1
    • Non-dust Cloth x1
    • Type-C Cable
    • Bag
    • Guard
