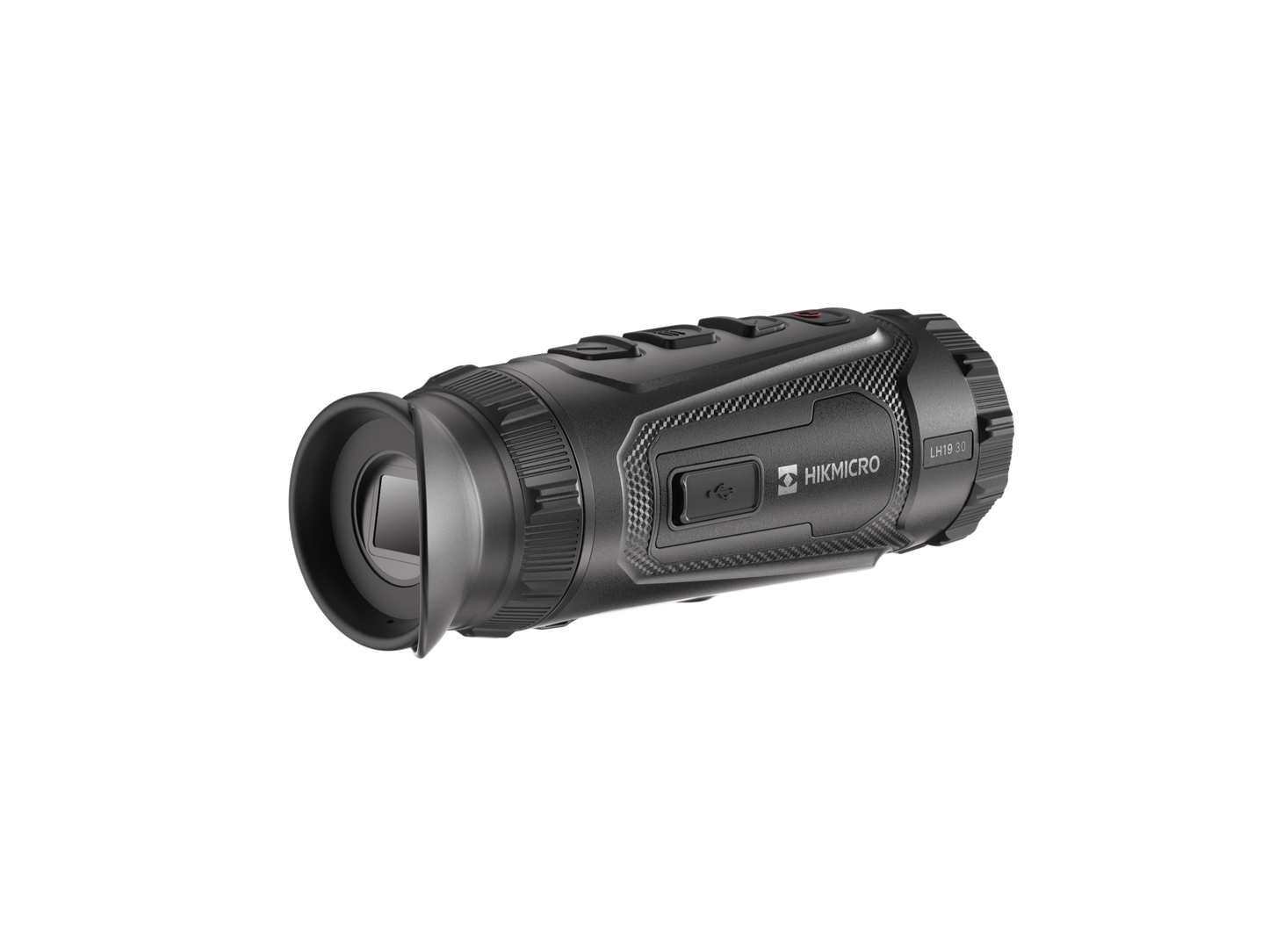

Hikmicro Lynx LH19 3.0 Thermal Monocular

With its 1.9× base magnification, 384× 288 detector, and a 19mm F1.0 lens, the LH19 3.0 offers a versatile solution
for demanding scenarios. It delivers a 13.8° (24.2m at 100m) wide field of view and a detection range of up to
900m, making it ideal for hunters and outdoor explorers who need a compact yet powerful device with shutterless
imaging technology.
● Key Feature
● High-sensitivity thermal module with NETD > 15 mK (@25°C, F# = 1.0).
● 19mm, F1.0 lens with thermal detection range up to 900m
● AI-powered Image Pro 3.0 and Zoom Pro algorithms
● HIKMICRO Shutterless Imaging System (HSIS)
● 0.49-inch OLED display with 1920 × 1080 resolution
● Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
● Lightweight design at 331g, with a pocket-sized build

 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384× 288
Frame Rate 50Hz
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 15 mK (@25°C),F#=1.0
Lens (Focal Length) 19mm, f1.0
Focus Mode Focus Ring
Detection Range 900m
Min. Focusing Distance 3m
Magnification 1.9× - 15.2× (8× )
Field of View(H × V), Degrees
/ m @100m
13.8°× 8.4°/24.2m × 14.7

Image Display
Display 1920× 1080, 0.49 inch, AMOLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6mm
Eye Relief 20mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
HSIS (HIKMICRO Shutterless
Image System) Yes
Image Pro 3.0 Yes
Sync Pro Yes

System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes

Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time
5-hour continuous running with hotspot on (@25°C)
4.5-hour continuous running with hotspot on (@-20°C)
Type-C Power Supply
5V DC, 2A
Supports External Power Supply, Support Direct Charging

General
Protection Level IP67
Dimension 158.4 × 53.6 × 49.5mm
Weight 331g with battery
Working Temperature
From -30°C to 45°C (-22°F to 113°F);
Humidity: 90% or Less
