• 1,280 × 1,024 resolution @12μm 50 Hz thermal detector
• High sensitivity thermal module NETD ＜ 15 mK (@25°C, F# = 1.0)
• 60 mm, F1.0 lens with detection range up to 3,100 m
• 2,560 × 2,560 resolution 1.03 inch OLED display
• Built in lens laser rangefinder up to 1,000 m, with ballistic calculation
• Rechargeable internal batteries and external battery, 6.5 hours continuous operation
• High shock resistance up to 1,000 g/0.4 m

 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 1280×1024
Frame Rate 50Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 15 mK (@25°C),F#=1.0
Lens (Focal Length) 60mm, F1.0
Focus Mode Focus Ring
Detection Range 3100m
Min. Focusing Distance 6m
Magnification
2.5×-28.5×
Support 1× step value of continuous zooming
Field of View(H × V), Degrees
/ m @100m
14.6°×11.7°/25.6m×20.5m
Image Display
Display 2560x2560, 1.03 inch OLED
FFC (Flat Field Correction)
Mode Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6mm
Eye Relief 45mm
Diopter (Range) -4D to 4D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
HSIS (HIKMICRO Shutterless
Image System) No
Zoom Pro No
Image Pro 3.0 Yes
Sync Pro Yes
System
Record Video On-board Video Recording
Audio Recording Yes
Capture Snapshot Yes
Recoil-activation Recording Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Zeroing Profiles 5
Freeze Zeroing Yes
Max. Recoil 1000g/0.4ms
Standby Mode Yes
Ballistic Calculation Yes
Local Album Yes
Power Supply
Battery Type Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650
battery (external)
Battery Operating Time 6.5 hours continuous running (@25°C, LRF on)
Type-C Power Supply
5 V DC/2 A, USB Type-C interface, Supports QC3.0
* Only the built-in battery will be charged via the type-C cable. Use the battery charger
to charge the external battery.

Mounting Standard 30mm
Dimension 452.6mm x 94.3mm x78.9mm
Weight 1150g
Working Temperature -30 °C to 55 °C (-22 °F to 131°F)
Protection Level IP67
Center Height 41mm
Laser Rangefinder
LRF Module in Lens Yes
Wavelength 905 nm
Safety Class for Laser Class 1
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m

What's In The Box

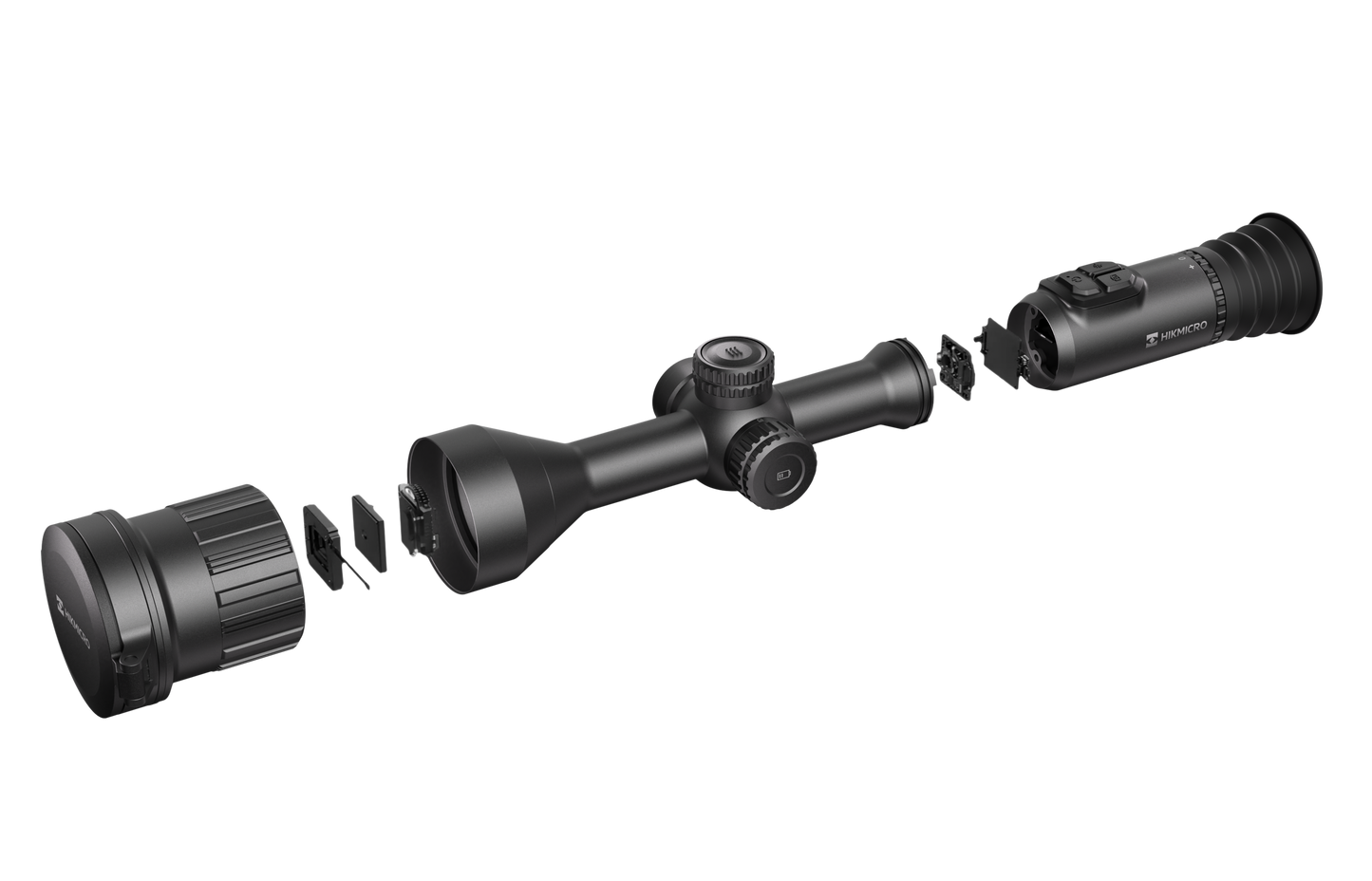

• HIKMICRO Stellar SX60LS 3.0 Thermal Image System (60 mm lens).
• Quick Start Guide
• Type-C Cable
• Lint-free Cloth
• Battery x2
• Battery Charger
• Bag
• Scope Guard
