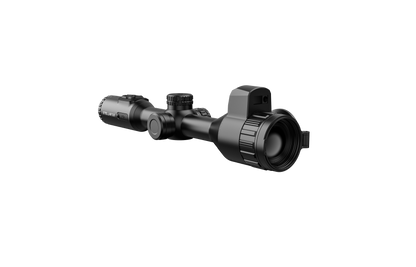

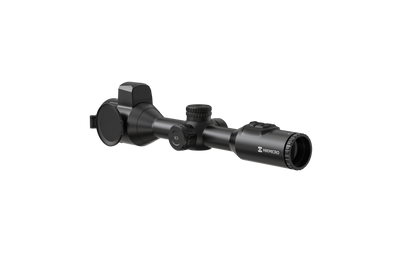

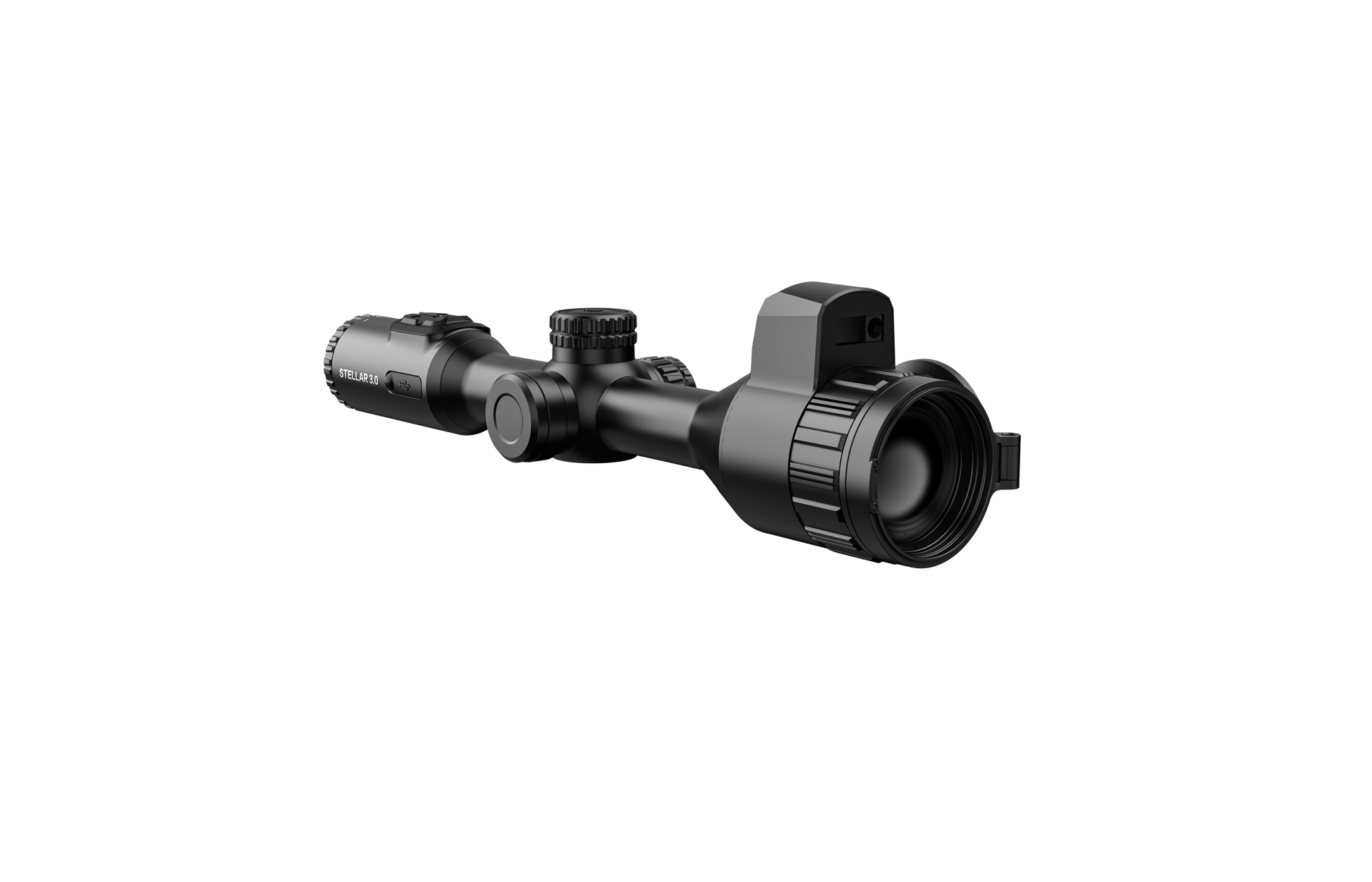

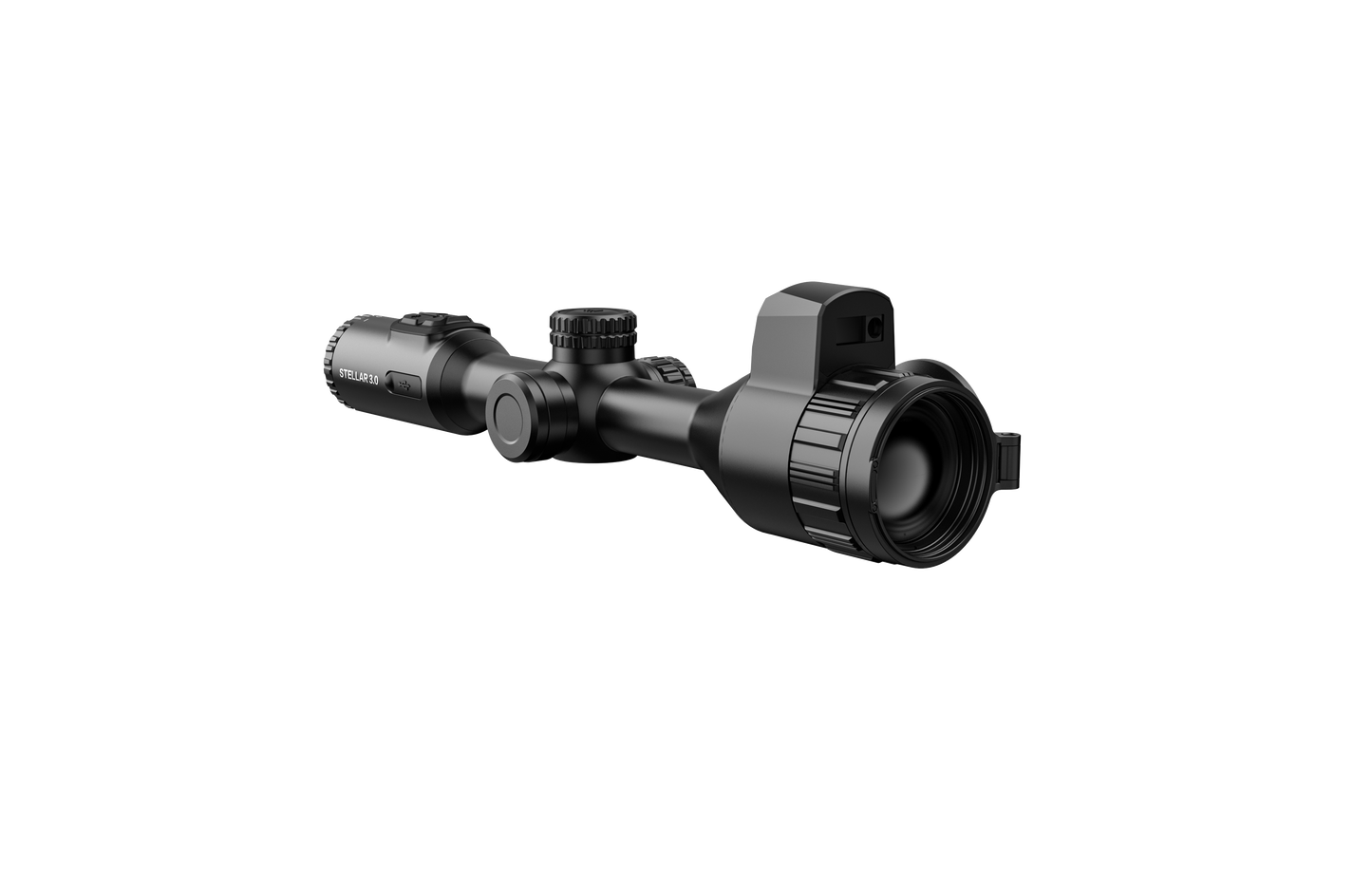

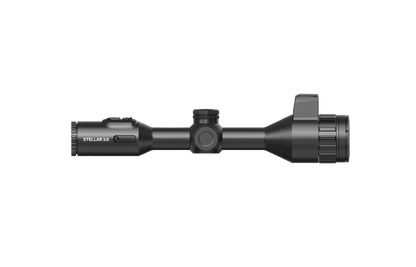

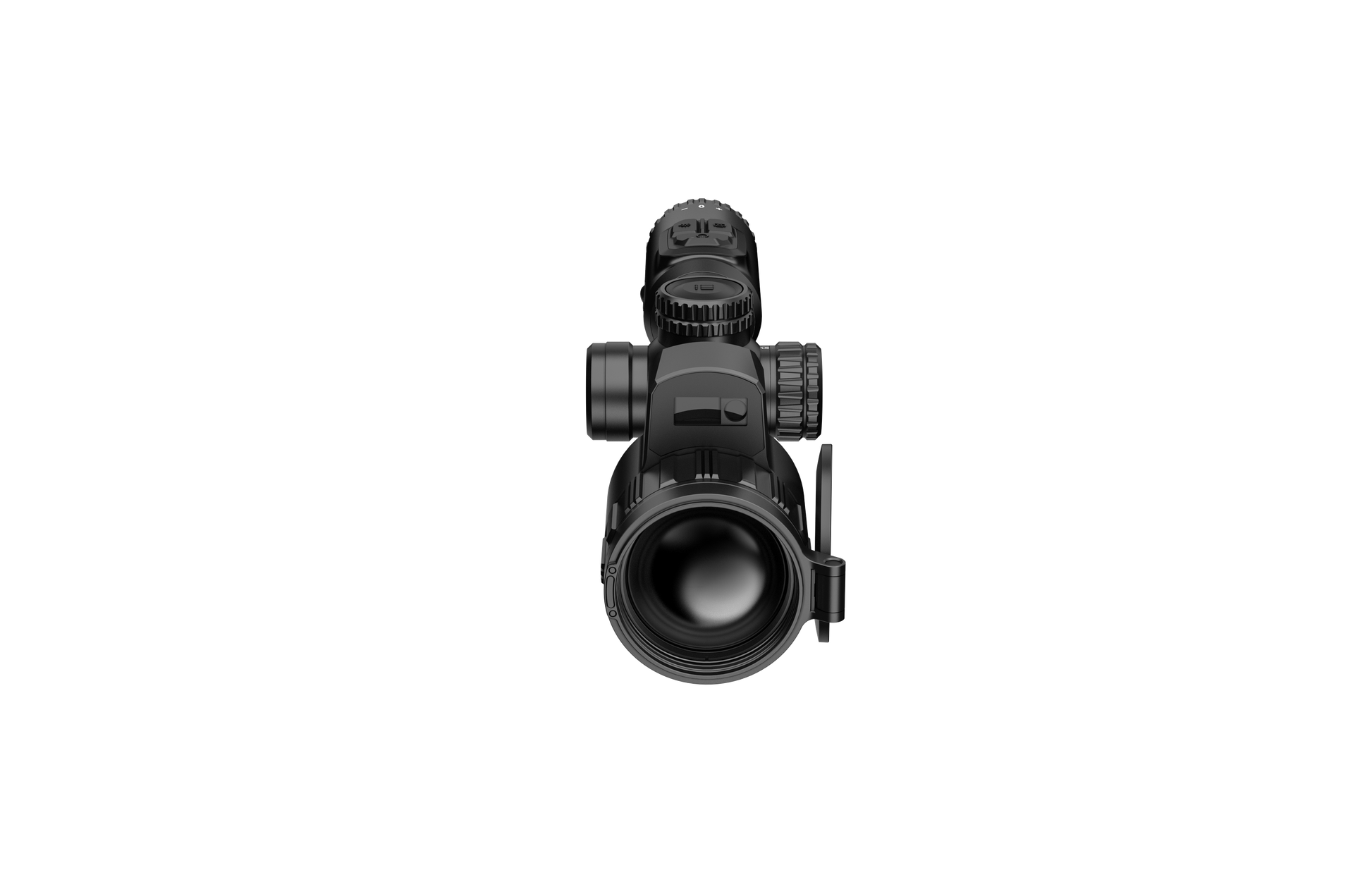

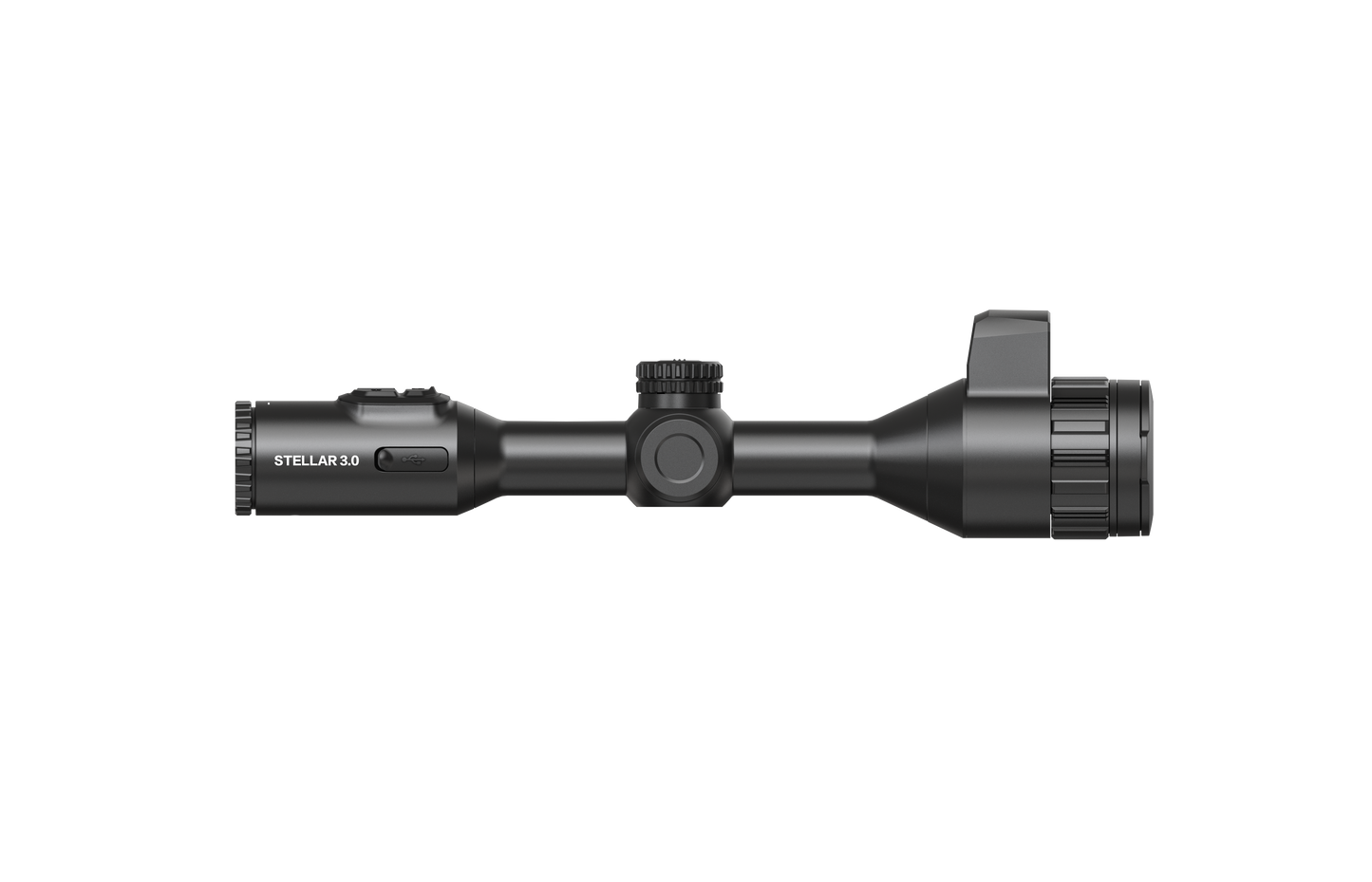

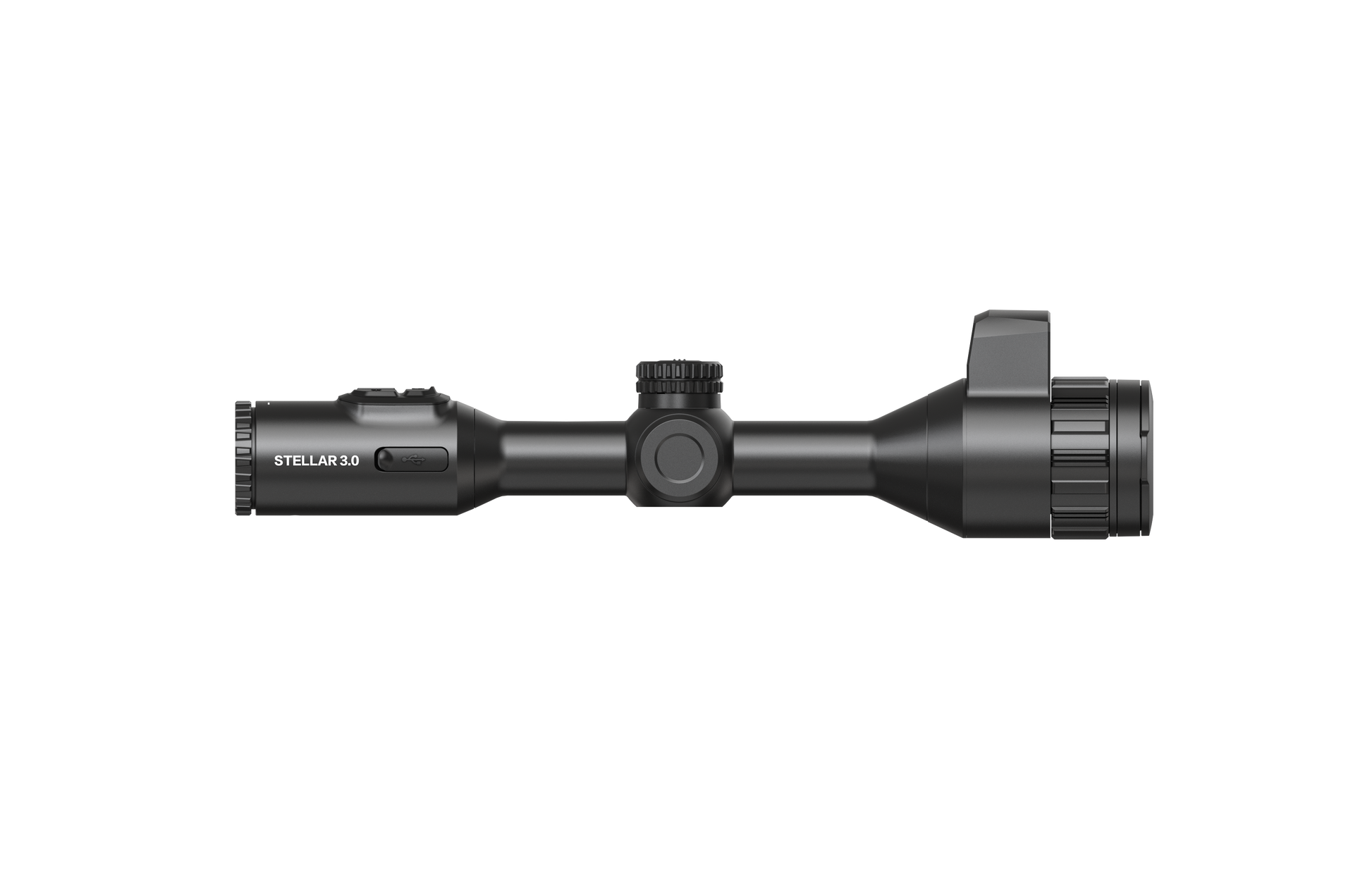

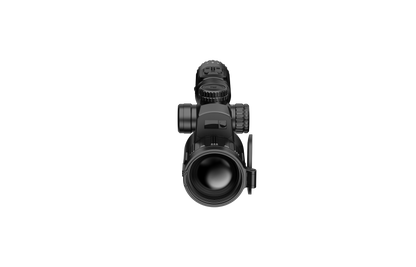

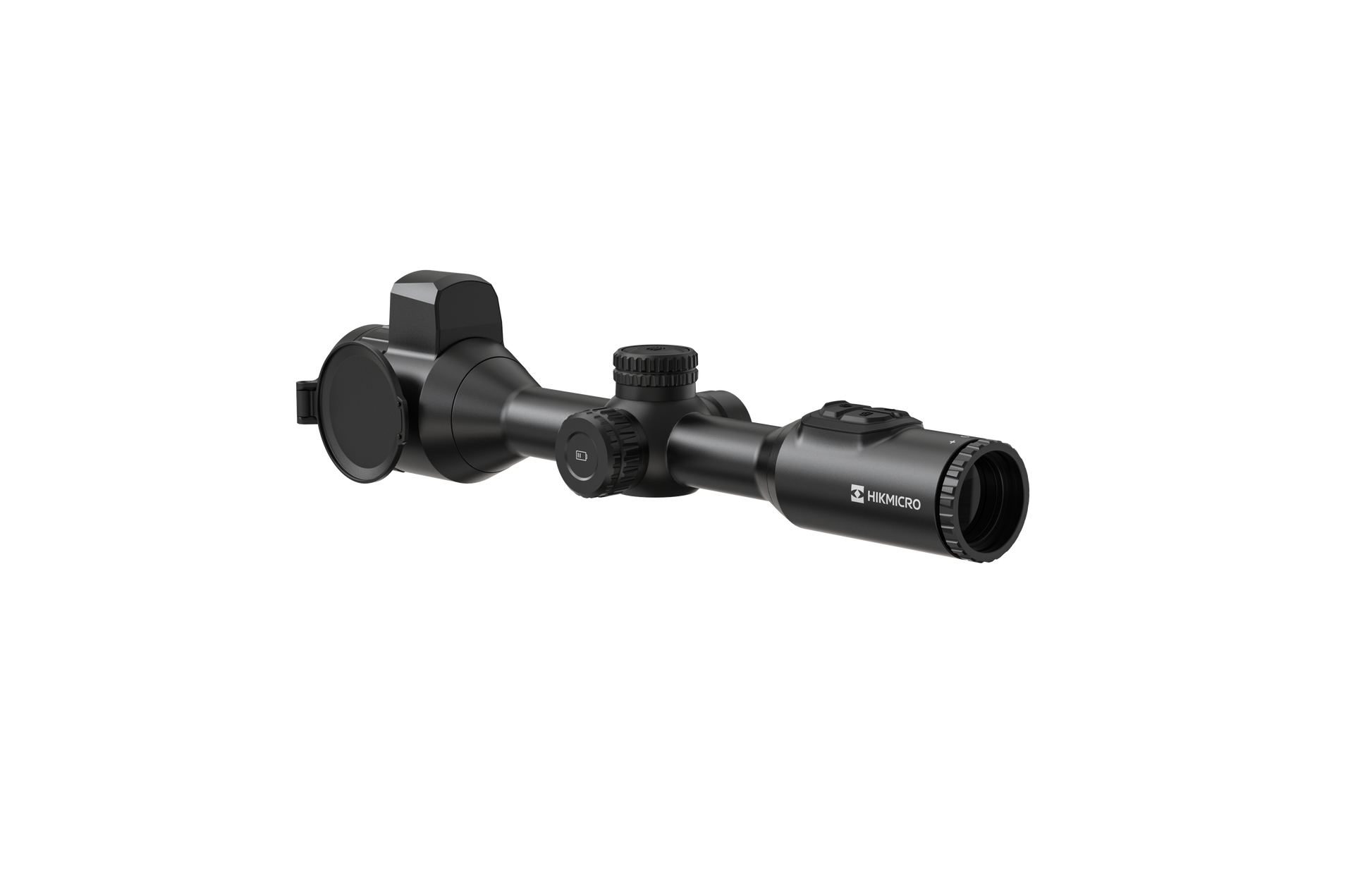

HIKMICRO Stellar SH50L 3.0 Thermal Image Scope (50 mm lens)

HIKMICRO Stellar SH50L 3.0 Thermal Image Scope (50 mm lens). The SH50L 3.0 is equipped with a 384×288 @12μm thermal detector, with much higher sensitivity (NETD＜15mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless system (HSIS), ensuring users catch the finest details no matter the weather or light conditions without interruption. With a 2560 × 2560 1.03” AMOLED larger display, SH50L 3.0 makes it easier to spot targets quickly and accurately. The built-in 1,000m LRF and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field hunting.

Description

Experience Stellar 3.0 Vivid Clarity

Experience unmatched clarity with the HIKMICRO Stellar SH50L 3.0, delivering superior thermal imaging technology for serious hunters. Thanks to its cutting-edge 384 x 288-pixel thermal sensor, the Stellar SH50L 3.0 provides ultra-clear visuals with exceptional detail, allowing for precise trophy recognition in any condition.

The scope makes it easy to discern the animal’s outline, anatomy, and unique behavioural traits, giving you an advantage when identifying and tracking your target. Designed to perform in the toughest outdoor environments, the Stellar SH50L ensures you never miss a critical moment.

Key Features

• 384 x 288 resolution @12 μm thermal detector
• High sensitivity thermal module NETD<15 mK (@25°C, F# = 1.0)
• 50 mm, F1.0 lens with detection range up to 2,600 m
• 2,560 x 2,560 resolution 1.03-inch OLED display
• HIKMICRO Shutterless Image System (HSIS)
• Built-in laser rangefinder up to 1,000 m, with ballistic calculation
• Rechargeable internal batteries and external battery, 9h continuous operation
• High shock resistance up to 1,000 g/0.4 ms

What's In The Box

• HIKMICRO Stellar SH50L 3.0 Thermal Image Scope
• Quick Start Guide
• Type-C Cable
• Lint-free Cloth
• Battery (x2)
• Battery Charger
• Bag
• Scope Guard

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 15 mK (@25°C, F# = 1.0)
Lens (Focal Length) 50 mm, F1.0
Focus Mode Focus Ring
Detection Range 2600 m
Min. Focusing Distance 5 m
Magnification 6.0× - 24.0×
Support 1× step value of continuous zooming
Field of View(H×V), Degrees / m @100 m 5.3° × 4.0°/9.3m x 7.0m
Image Display

Display 2560 × 2560, 1.03-inch OLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter (Range) -5D to 3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
Image Pro 2.0 Yes
HSIS (HIKMICRO Shutterless Image System) Yes
System
Record Video On-board Video Recording
Capture Snapshot Yes
Audio Recording Yes
Recoil-activation Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Zeroing Profiles 5
Max. Recoil 1000 g/0.4 ms
Freeze Zeroing Yes
Local Album Yes
Power Supply
Battery Type
Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
Battery Operating Time 9 hours continuous running (@-20°C, Zoom Pro, LRF on)
Type-C Power Supply
5 V DC/2 A, USB Type-C interface
Supports QC3.0
General
Mounting Standard 30 mm
Protection Level IP67
Dimension 418.5 mm × 84 mm × 92.4 mm
Weight 880 g without external battery
Working Temperature -30°C to 55°C (-22°F to 131°F)
Center Height 34 mm
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
