A Smart Choice

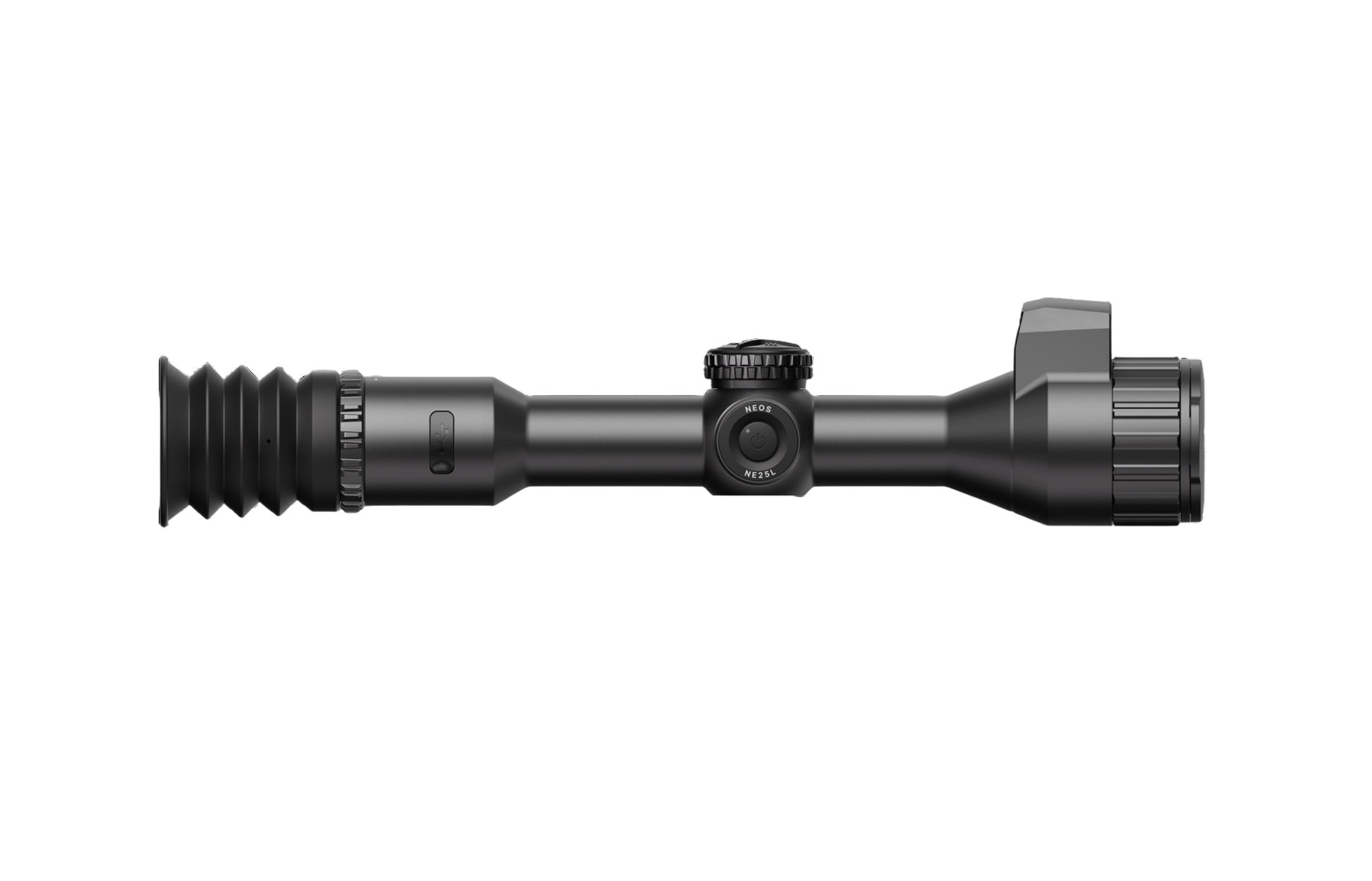

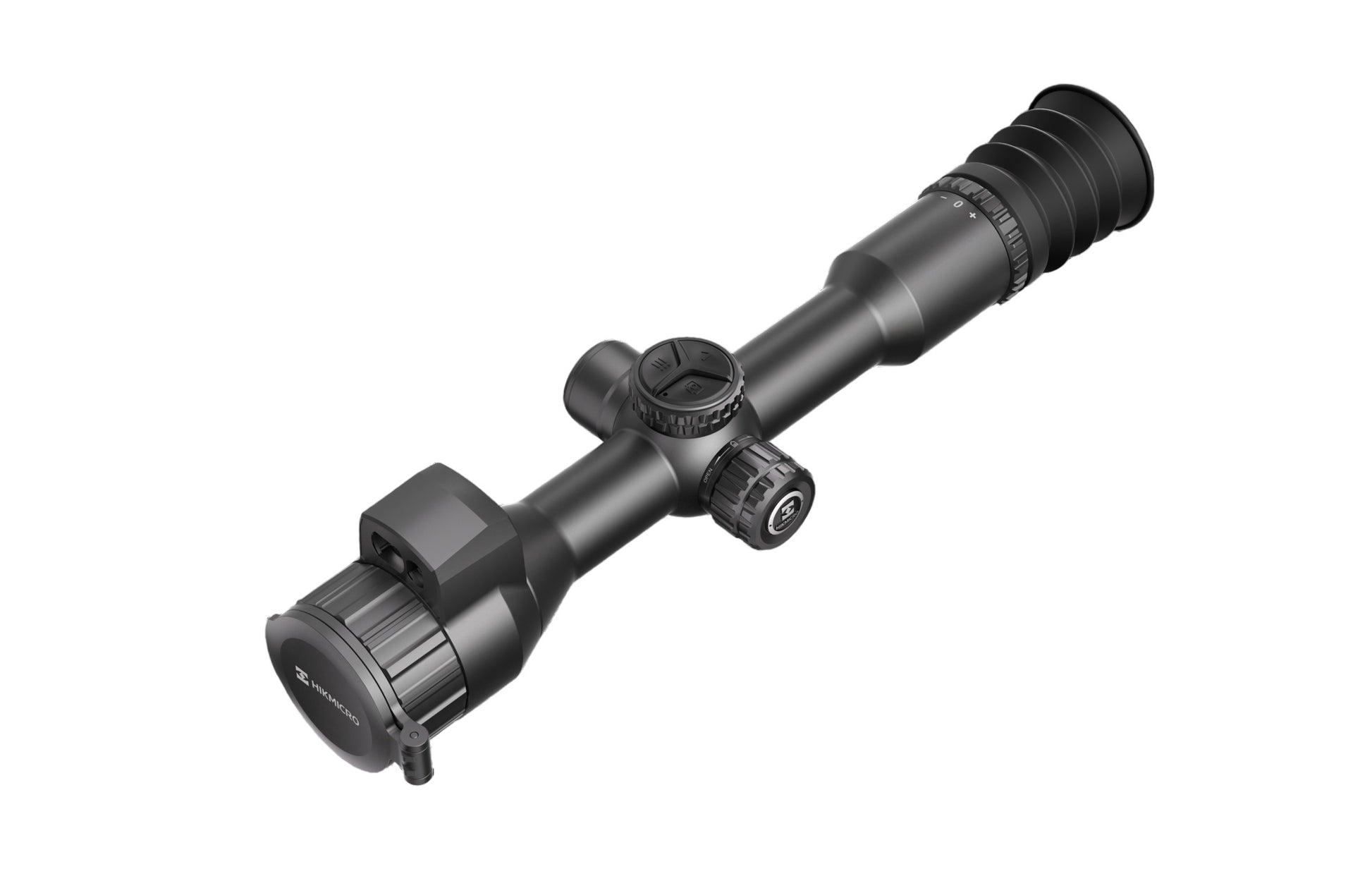

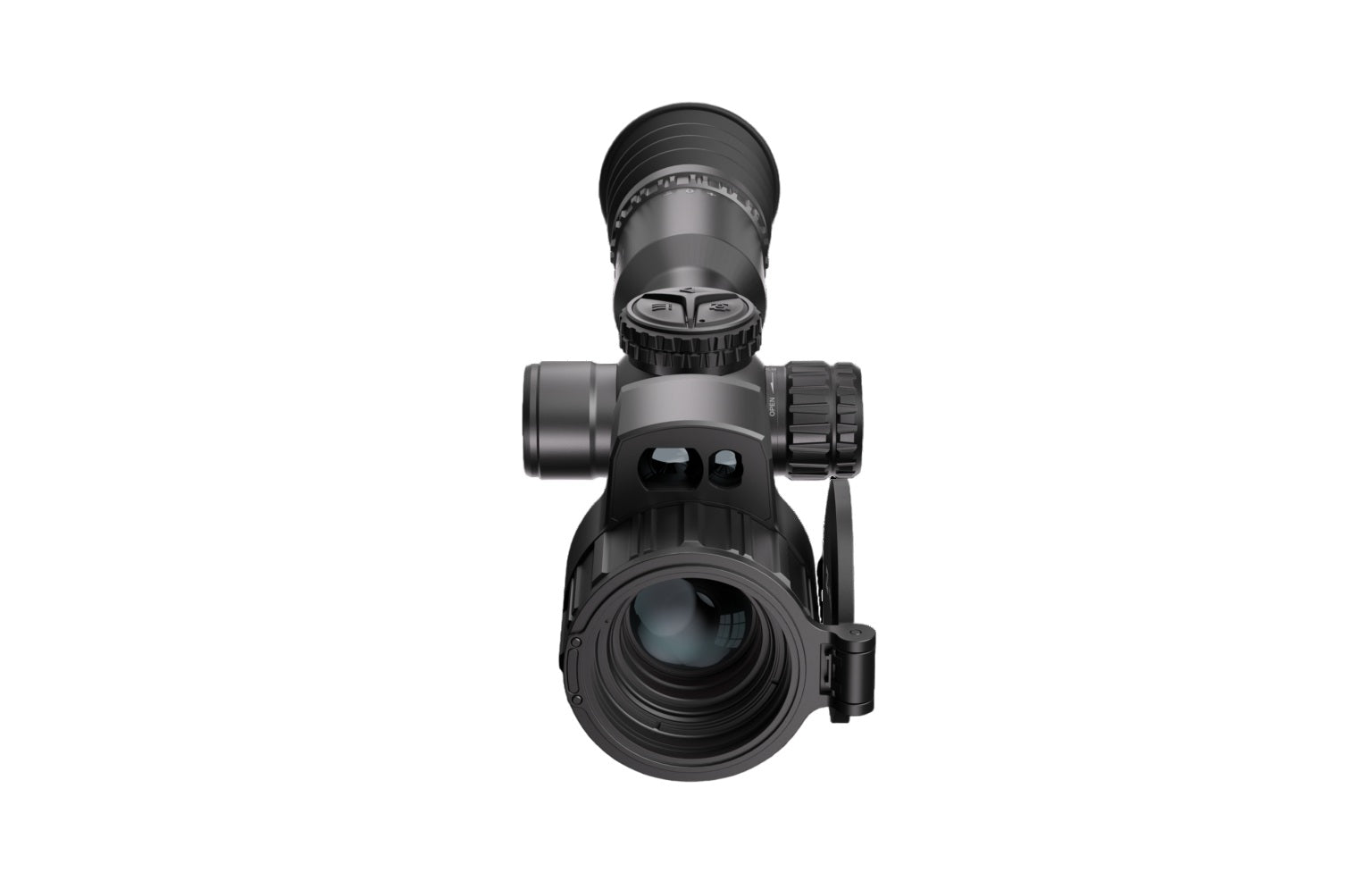

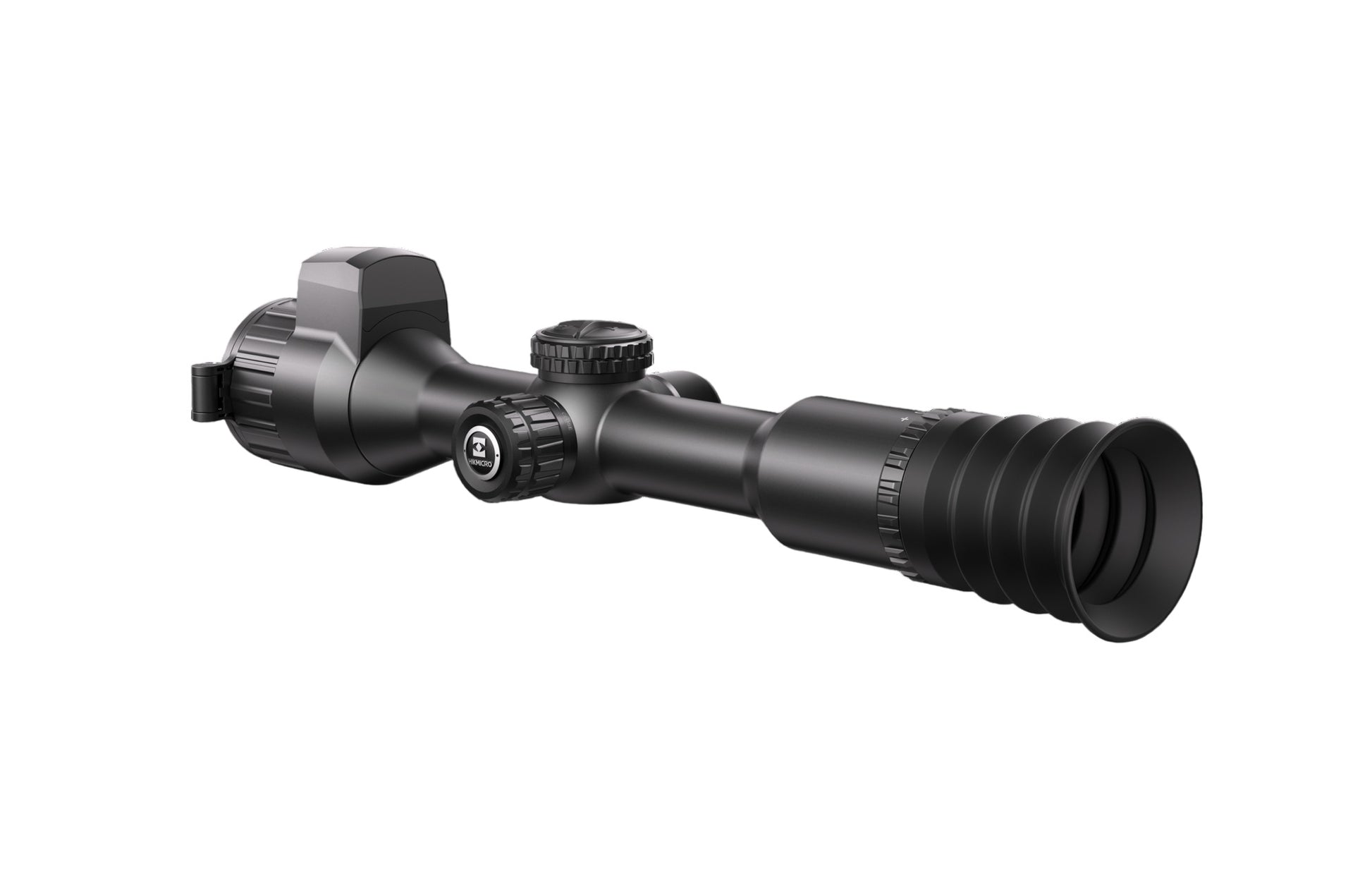

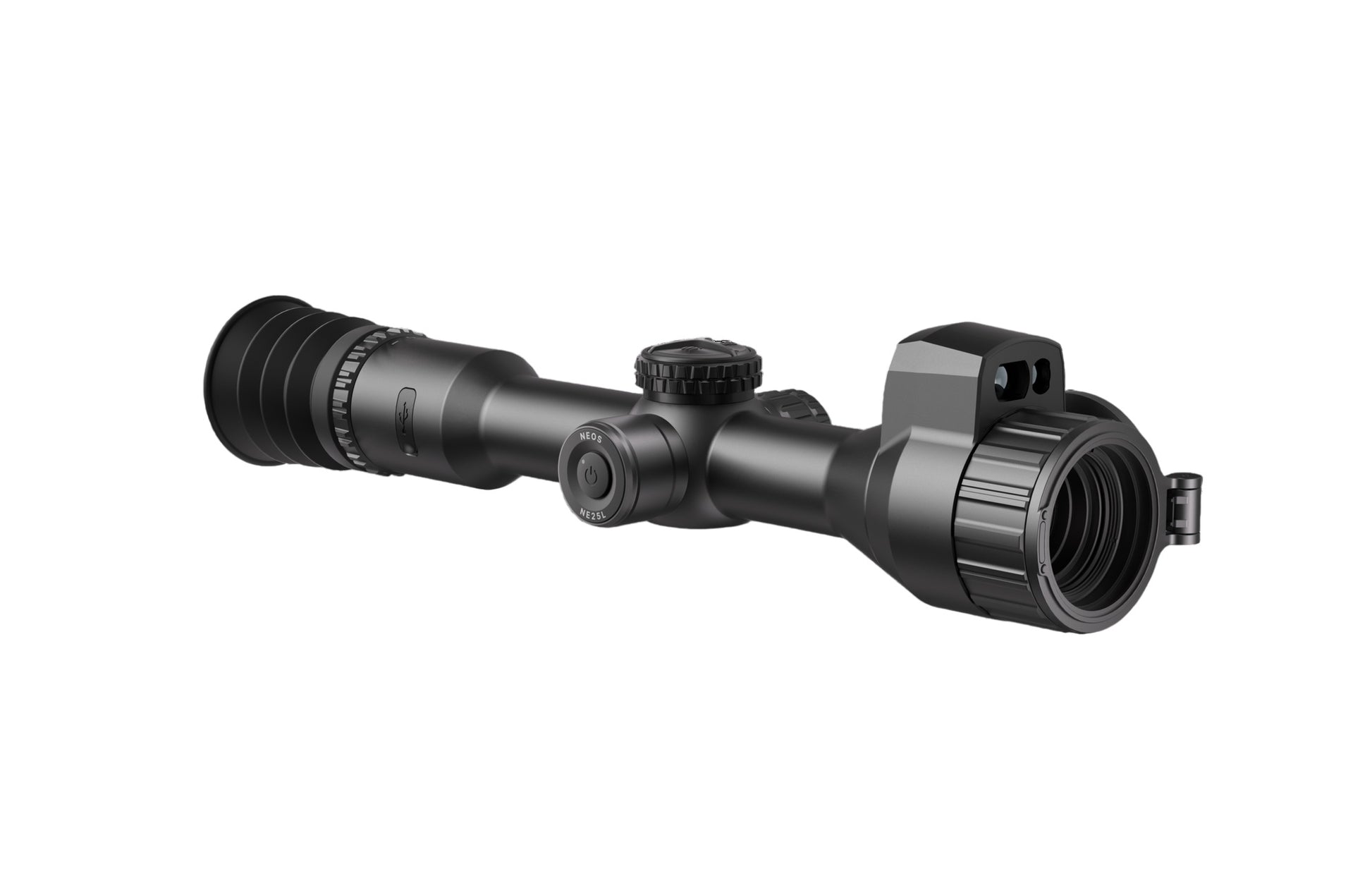

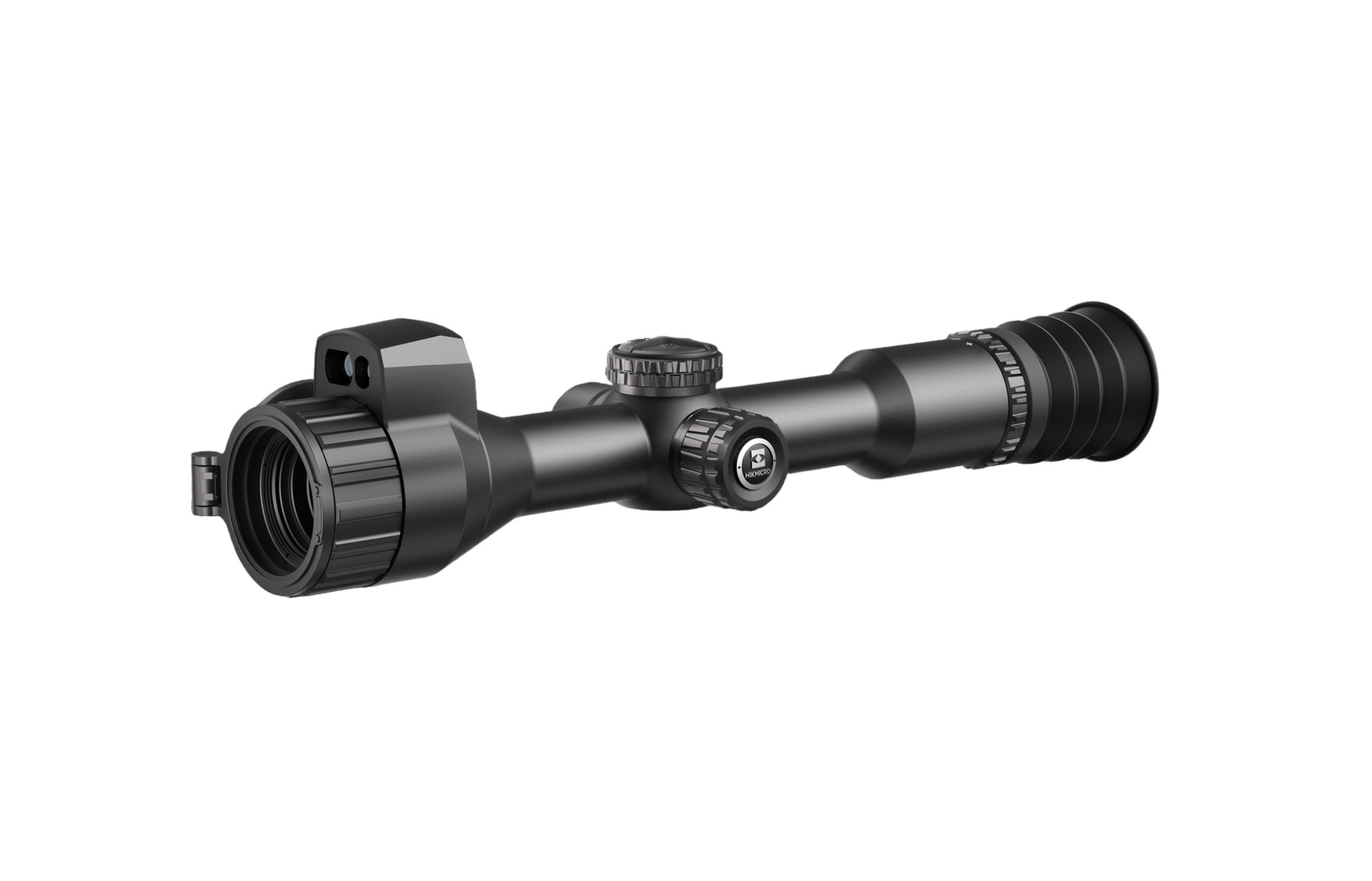

HIKMICRO Neos NH25L Thermal Image Scope with Built-in Laser Rangefinder. The NH25L boasts 320×240 resolution and is equipped with NETD＜18mK thermal detector. The advanced Image Pro 3.0 algorithm, shutterless system (HSIS) and Sync Pro algorithm ensures users catch seamless and detailed image with lower latency. With a 0.49″ AMOLED larger display, NH25L offers immersive viewing experience. The laser rangefinder and ballistic calculation contribute to more accurate shooting.

Key Feature
● High sensitivity thermal module NETD ＜ 18 mK (@25°C, F# = 1.0)
● HIKMICRO Shutterless Image System (HSIS) & Zoom Pro
● 0.49'' AMOLED Large Display
● 550g lightweight, with a compact and ergonomic design
● 1000m Laser Rangefinder with Ballistic Calculation
● 1-second Quick Start-up
● 9-hour Operation Time
● Quick Zeroing on Sight APP
 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 320 × 240
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@25°C, F# = 1.0)
Lens (Focal Length) 25mm, F1.0
Focus Mode Focus Ring
Detection Range 1200m
Min. Focusing Distance 3m
Magnification 3.5× - 24.5×
Field of View(H × V), Degrees
/ m @100m
7.0° × 5.3°/ 12.2 m x 9.3 m
Image Display
Display 0.49-inch AMOLED, 1920*1080
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 8mm
Eye Relief 55mm
Diopter (Range) -4D to 4D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
HSIS (HIKMICRO Shutterless Image System) Yes                                  Image Pro 3.0 Yes
Sync Pro Yes

System
Record Video On-board Video Recording
Capture Snapshot Yes
Hotspot Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Local Album Yes
Audio Recording Yes
Recoil-activation Recording Yes
Freeze Zeroing Yes
Max. Recoil 1000g/0.4ms
Zeroing Profiles 5
Ballistic Calculation Yes
Click Value 1 click = 1cm @ 100m
Distance Measurement Yes
Power Supply
Battery Type
One Rechargeable Lithium Battery (Internal), One Replaceable and Rechargeable
18650 Battery (External)
Battery Operating Time 9 hours continuous running (@25°C, Zoom Pro, LRF on)
Type-C Power Supply
5 V DC/2 A, USB Type-C interface
Supports QC3.0
* Only the built-in battery will be charged via the type-C cable. Use the battery charger
to charge the external battery.
General
Protection Level IP67
Mounting Standard 30mm
Dimension 345.6mm×86.1mm×75.8mm
Working Temperature -30 °C to 55 °C (-22 °F to 131°F)
Weight 550g
Center Height 32mm
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
