Rewriting Handheld Thermal Standards

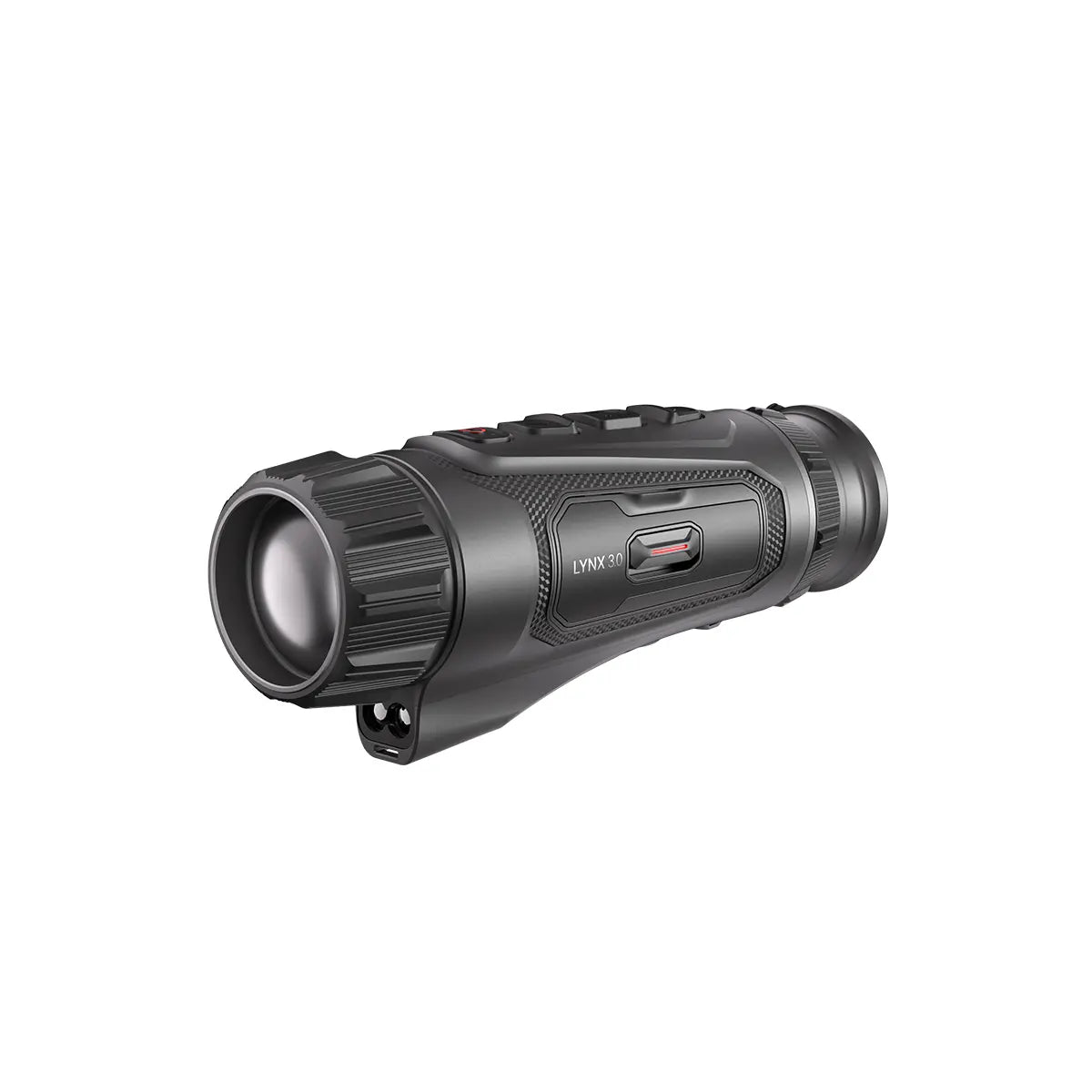

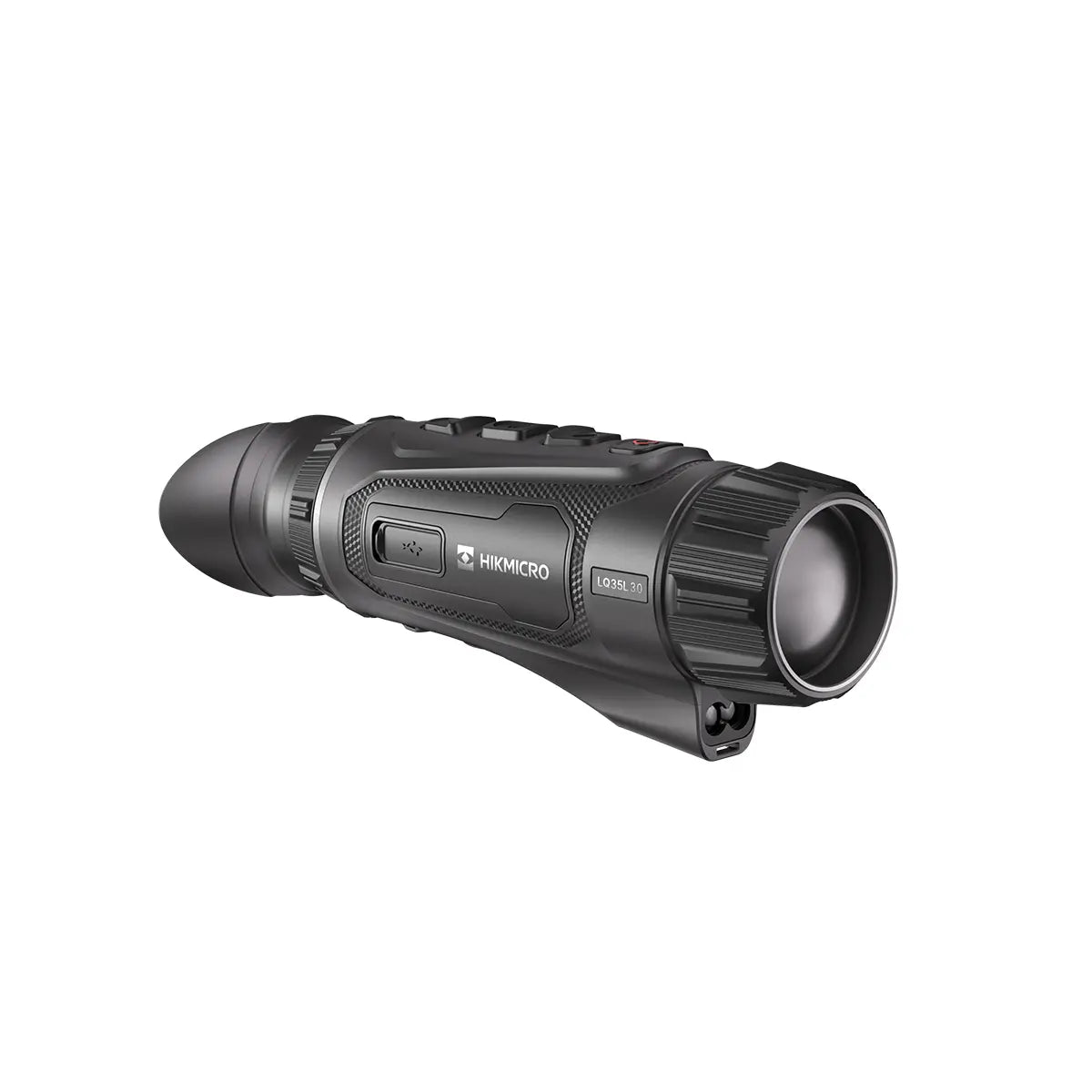

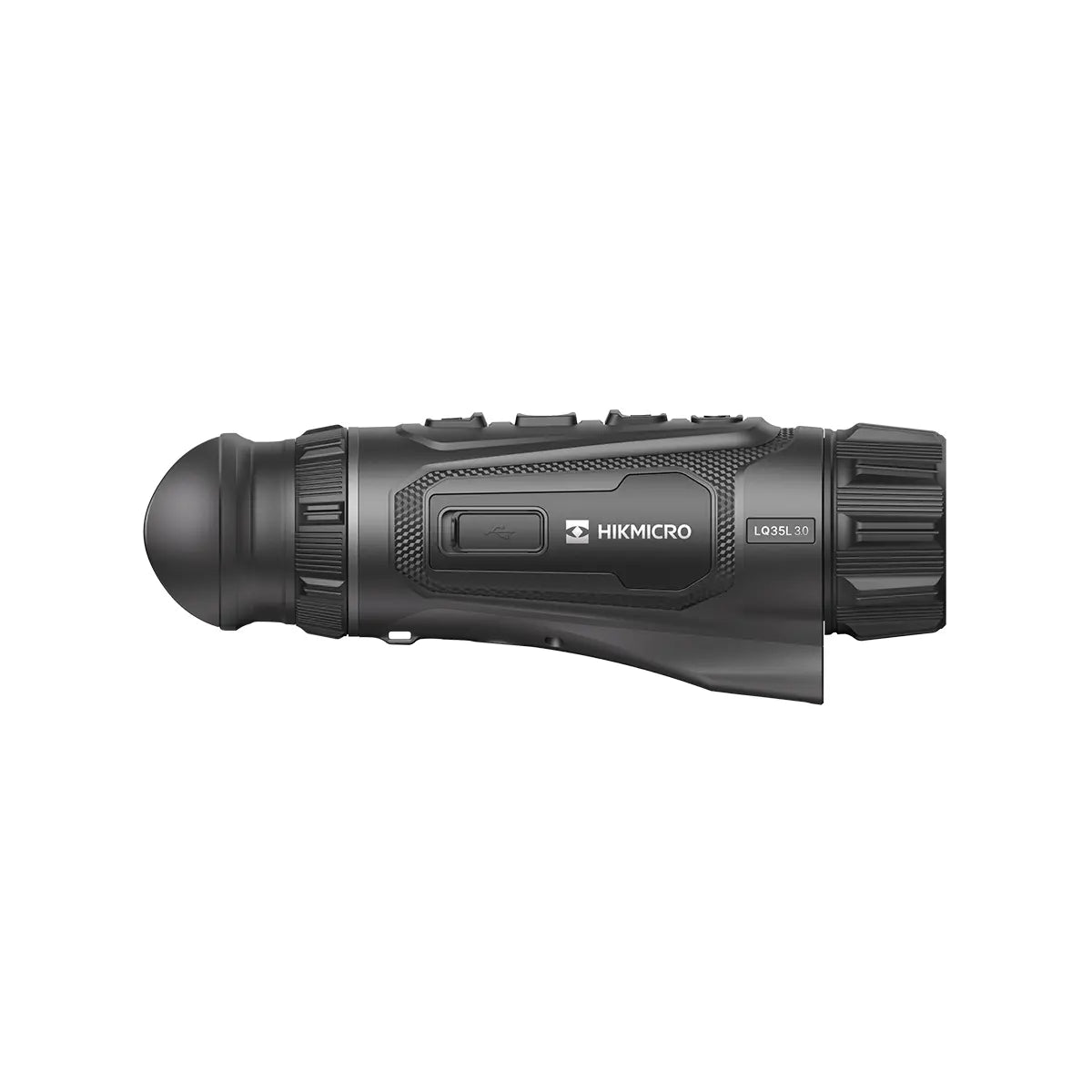

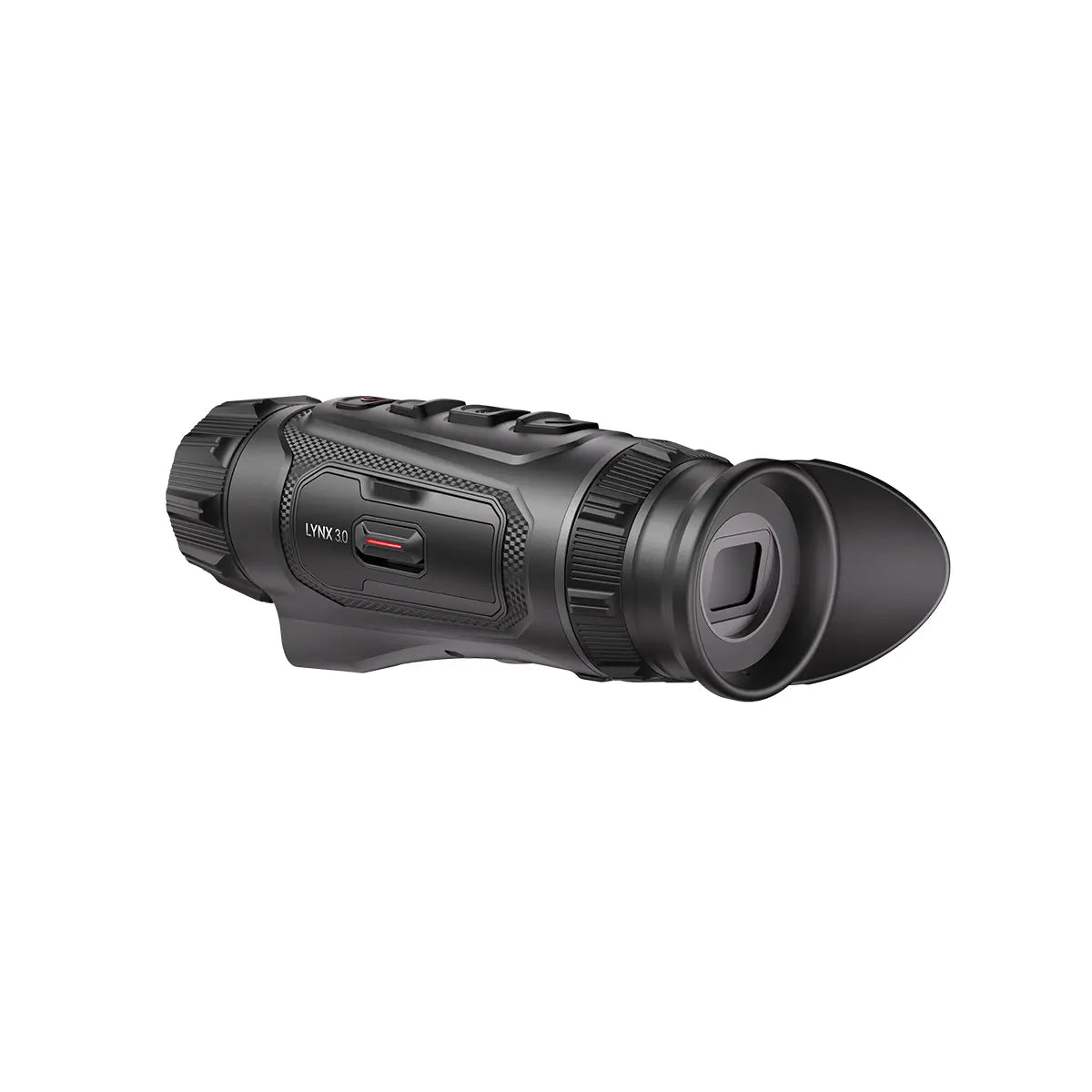

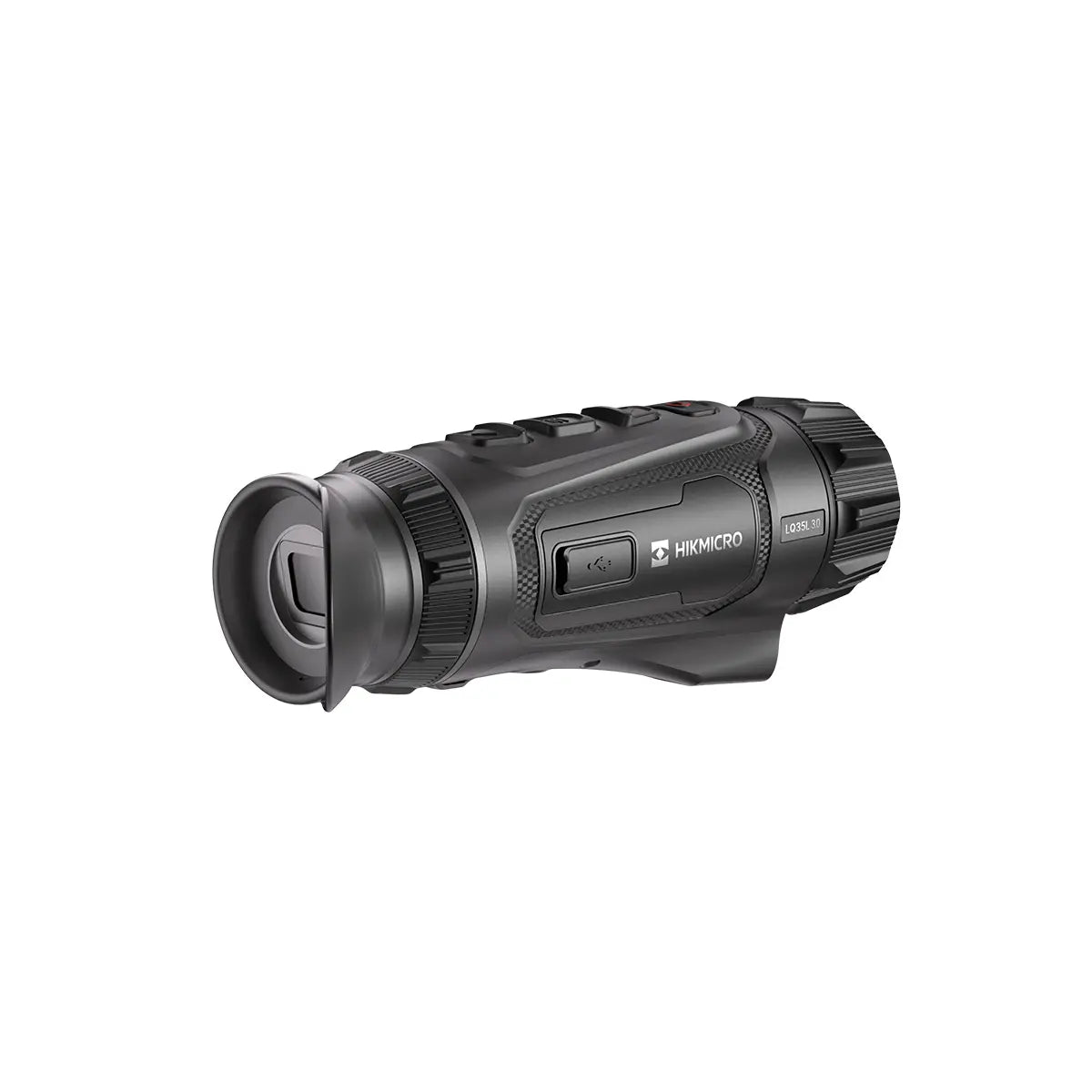

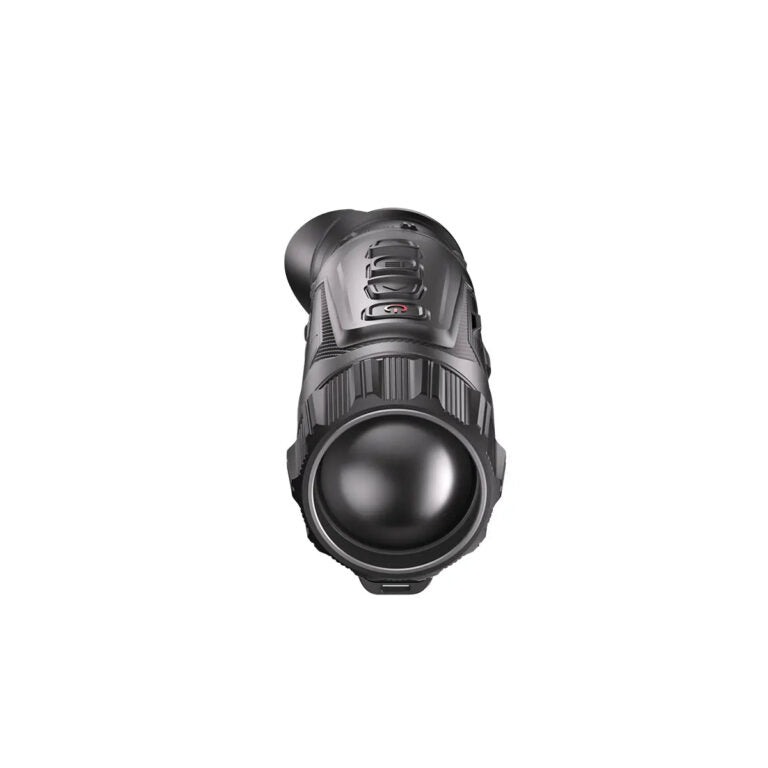

HIKMICRO Lynx LQ35L 3.0 Handheld Thermal Monocular with LRF. With a basic magnification of 1.9x, a 640×512 detector, and a 35 mm F1.0 lens, the LQ35L 3.0 offers unparalleled performance for professional hunters and mid-to-long-range applications. Its 7.5° (13.1m at 100m) field of view and a detection range of up to 1,800 m ensure exceptional detail in vast, open spaces, making it the ultimate choice for serious users seeking premium quality with proven shutterless technology.

● Key Feature
● Up to 640×512 Thermal resolution
● High-sensitivity thermal module with NETD ＜ 15 mK (@25°C, F# = 1.0).
● 35 mm, F1.0 lens with thermal detection range up to 1800 m
● HIKMICRO Shutterless Imaging System (HSIS)
● AI-powered Image Pro 3.0 and Zoom Pro algorithms
● 0.49-inch OLED display with 1920 × 1080 resolution
● Up to 1000m Laser Range finder
● Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640x512
Frame Rate 50Hz
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 15 mK (@25°C),F#=1.0
Lens (Focal Length) 35mm, f1.0
Focus Mode Focus Ring
Detection Range 1800m
Min. Focusing Distance 3.5m
Magnification 1.9x - 15.2x (8x)
Field of View(H × V),
Degrees / m @100m
12.5°×7.5°/21.9m×13.2m
Image Display
Display 1920x1080, 0.49 inch, AMOLED
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green
Monochrome
Exit Pupil 6mm
Eye Relief 20mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
HSIS (HIKMICRO
Shutterless Image System)
Yes
Image Pro 3.0 Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time
5-hour continuous running with hotspot on (@25°C)
4.5-hour continuous running with hotspot on (@-20°C)
Type-C Power Supply
5V DC, 2A
Supports External Power Supply, Support Direct Charging
General
Protection Level IP67
Dimension 173.3 x 66.8 x 49.3 mm
Weight 410.7g with battery
Working Temperature
From -30°C to 45°C (-22°F to 113°F);
Humidity: 90% or Less
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905nm
Max. Measuring Range 1200m
Measurement Accuracy ±1m
Min. Measuring Range 5m
