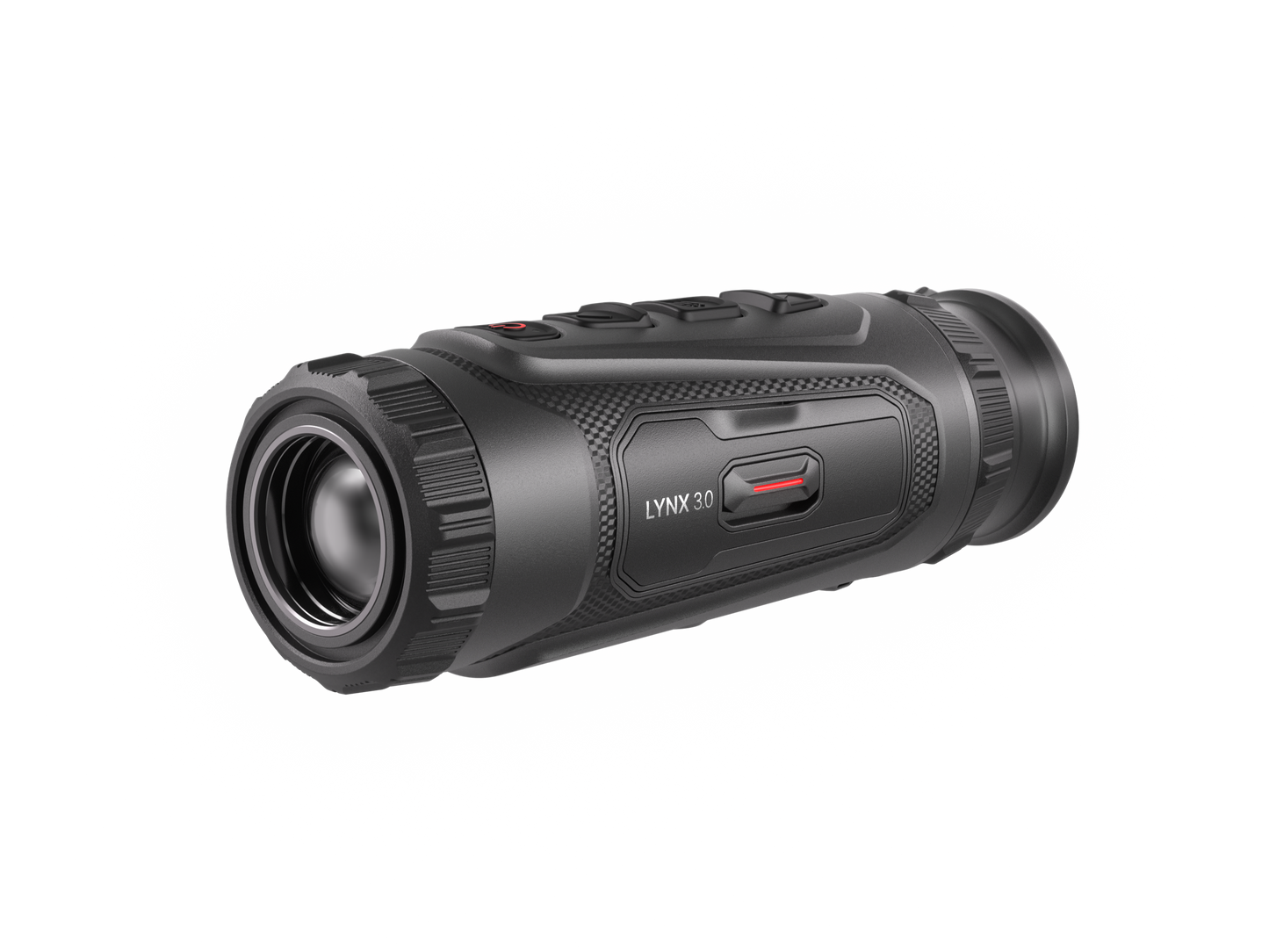

Hikmicro Lynx LH25 3.0 Thermal Monocular

The LH25 3.0 redefines performance in its class with a 384× 288 detector, a 25mm F1.0 lens, and a 2.5× base
magnification. With its 10.5° (18.4m at 100m) field of view and an impressive detection range of 1200m, this
ultimate-valued monocular excels in long-range detection. It is perfect for open landscapes and professional use.
● Key Feature
● High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
● 25mm, F1.0 lens with thermal detection range up to 1200m
● AI-powered Image Pro 3.0 and Zoom Pro algorithms
● HIKMICRO Shutterless Imaging System (HSIS)
● 0.49-inch OLED display with 1920 × 1080 resolution
● Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
● Lightweight design at 328.5g, with a pocket-sized build

Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384× 288
Frame Rate 50Hz
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 15 mK (@25°C),F#=1.0
Lens (Focal Length) 25mm, f1.0
Focus Mode Focus Ring
Detection Range 1200m
Min. Focusing Distance 3m
Magnification 2.5× - 20× (8× )
Field of View(H × V), Degrees
/ m @100m
10.5°× 6.4°/18.4m× 11.2m

Image Display
Display 1920× 1080, 0.49 inch, AMOLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6mm
Eye Relief 20mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm, Contrast Adjustment: Yes
Zoom Pro :       Yes
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 : Yes
Sync Pro : Yes

System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes

Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time
5-hour continuous running with hotspot on (@25°C)
4.5-hour continuous running with hotspot on (@-20°C)Type-C Power Supply
5V DC, 2A
Supports External Power Supply, Support Direct Charging

General
Protection Level IP67
Dimension 158.4 × 53.6 × 49.5mm
Weight 328.5g with battery
Working Temperature
From -30°C to 45°C (-22°F to 113°F);
Humidity: 90% or Less
