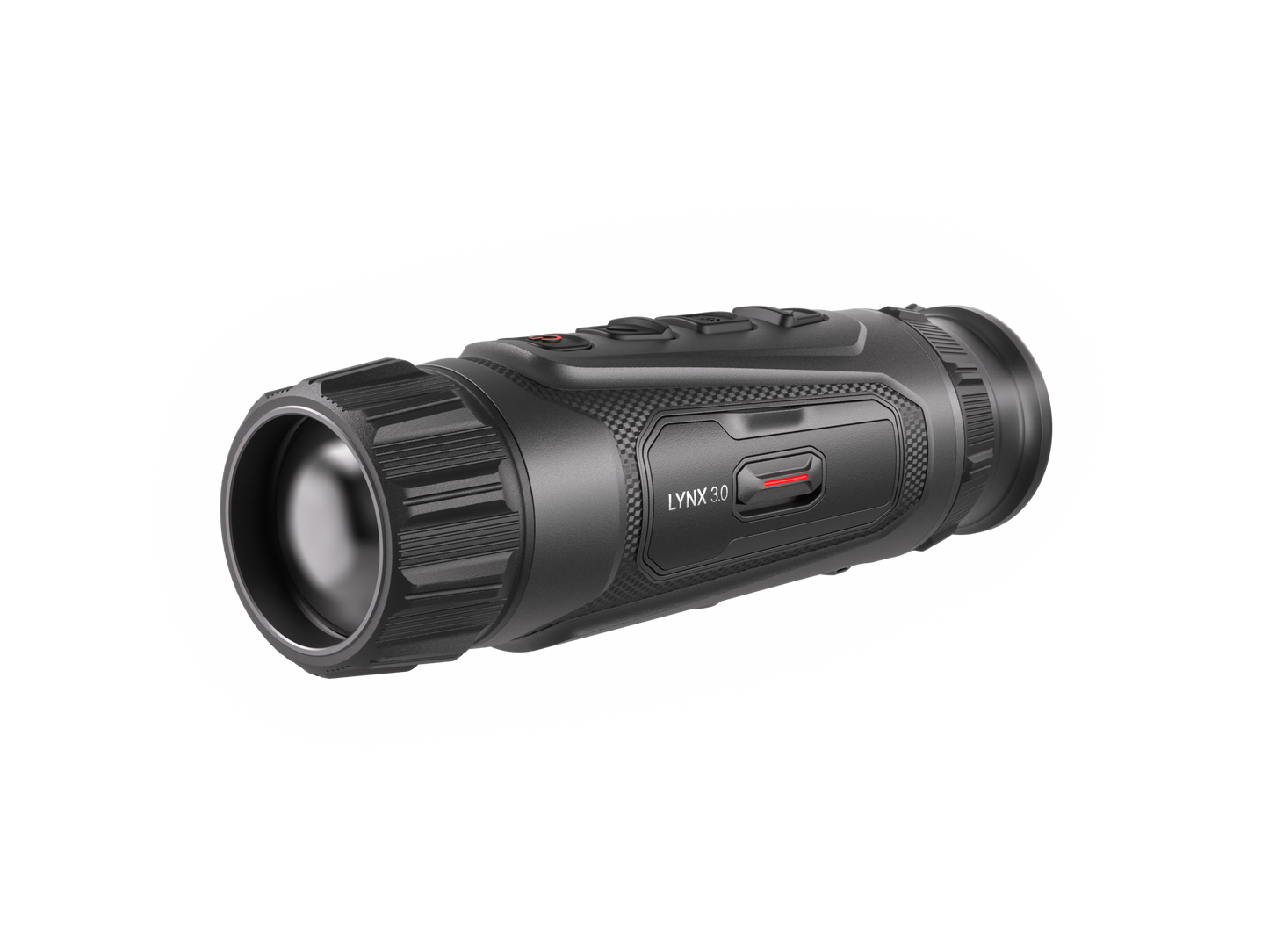

Hikmicro Lynx LH35 3.0 Thermal Monocular

With a basic magnification of 3.4× , a 384× 288 detector, and a 35mm F1.0 lens, the LH35 3.0 offers unparalleled
performance for professional hunters and mid-to-long-range applications. Its 7.5° (13.1m at 100m) field of view
and a detection range of up to 1800m ensure exceptional detail in vast, open spaces, making it the ultimate
choice for serious users seeking premium quality with proven shutterless technology.
● Key Feature
● High-sensitivity thermal module with NETD < 15 mK (@25° C, F# = 1.0).
● 35mm, F1.0 lens with thermal detection range up to 1800m
● AI-powered Image Pro 3.0 and Zoom Pro algorithms
● HIKMICRO Shutterless Imaging System (HSIS)
● 0.49-inch OLED display with 1920 × 1080 resolution
● Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20° C
● Lightweight design at 354.5g, with a pocket-sized build

 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384× 288
Frame Rate 50Hz
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 15 mK (@25° C),F#=1.0
Lens (Focal Length) 35mm, f1.0
Focus Mode Focus Ring
Detection Range 1800m
Min. Focusing Distance 3.5m
Magnification 3.4× - 27.2× (8× )
Field of View(H × V), Degrees
/ m @100m 7.5° × 4.6° /13.1m× 8.0m

 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 384× 288
Frame Rate 50Hz
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 15 mK (@25° C),F#=1.0
Lens (Focal Length) 35mm, f1.0
Focus Mode Focus Ring
Detection Range 1800m
Min. Focusing Distance 3.5m
Magnification 3.4× - 27.2× (8× )
Field of View(H × V), Degrees
/ m @100m 7.5° × 4.6° /13.1m× 8.0m

Image Display
Display 1920× 1080, 0.49 inch, AMOLED
Palettes Black Hot, White Hot, Red HSystemot, Fusion, Red Monochrome, Green Monochrome

Exit Pupil 6mm
Eye Relief 20mm
Diopter (Range) -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes
Sync Pro Yes

SYSTEM

Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Standby Mode Yes
Built-in Memory Built-in EMMC (64 GB)
PIP Yes
Hotspot 2.4 GHz/5 GHz Wi-Fi Waveband
Hot Track Yes
Distance Measurement Yes
Local Album Yes

Power Supply
Battery Type Replaceable and Rechargeable Li-ion 18650 Battery
Battery Operating Time 5-hour continuous running with hotspot on (@25° C)
4.5-hour continuous running with hotspot on (@-20° C)
Type-C Power Supply 5V DC, 2A
Supports External Power Supply, Support Direct Charging

General
Protection Level IP67
Dimension 169.6 × 53.6 × 49.5mm
Weight 354.5g with battery
Working Temperature From -30° C to 45° C (-22° F to 113° F);
Humidity: 90% or Less
