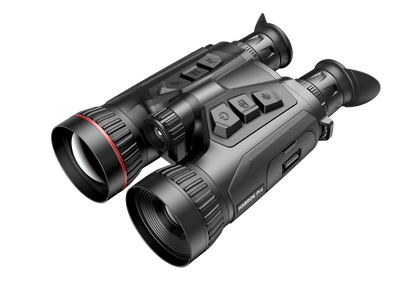

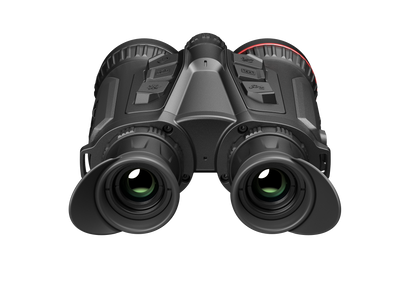

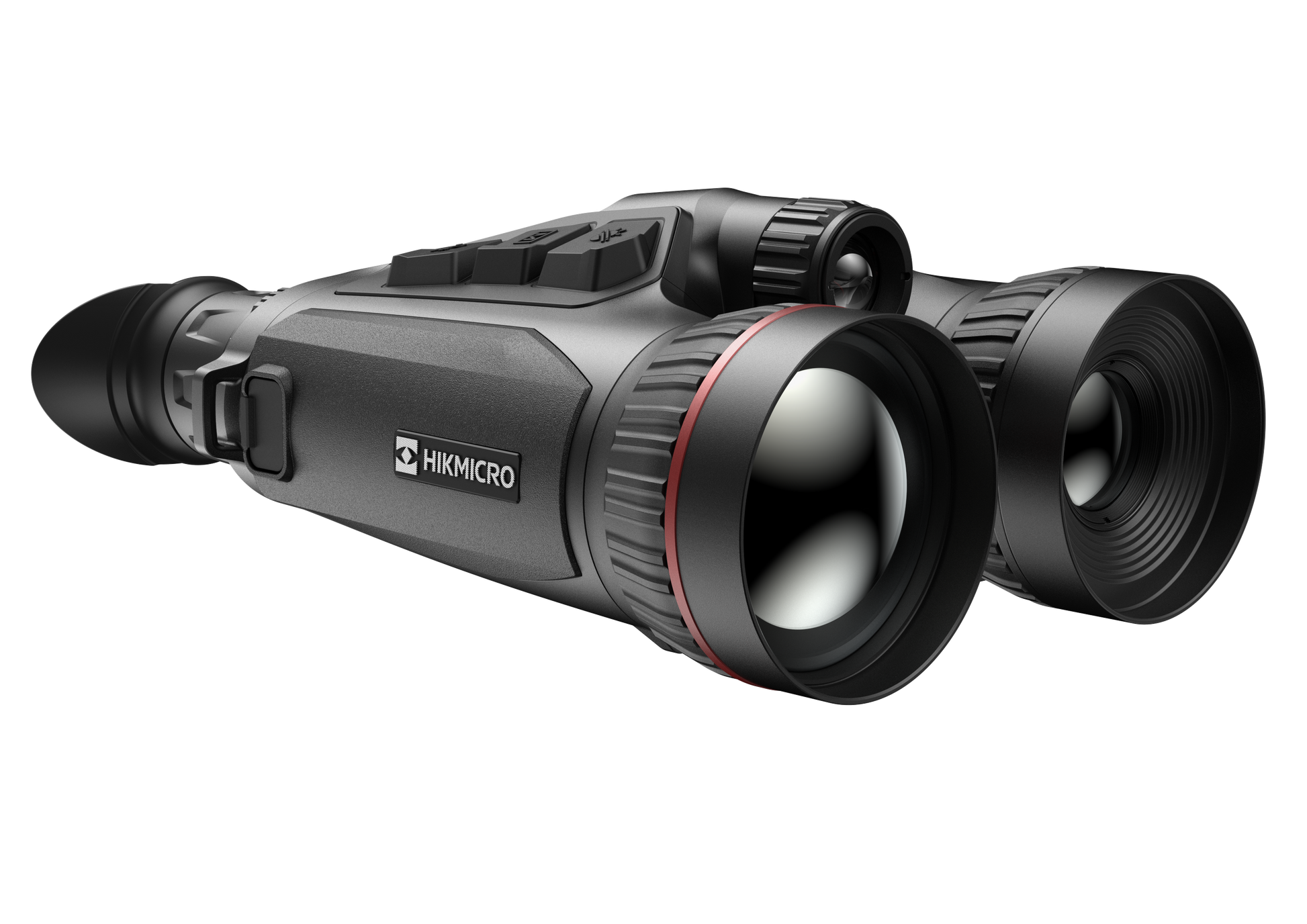

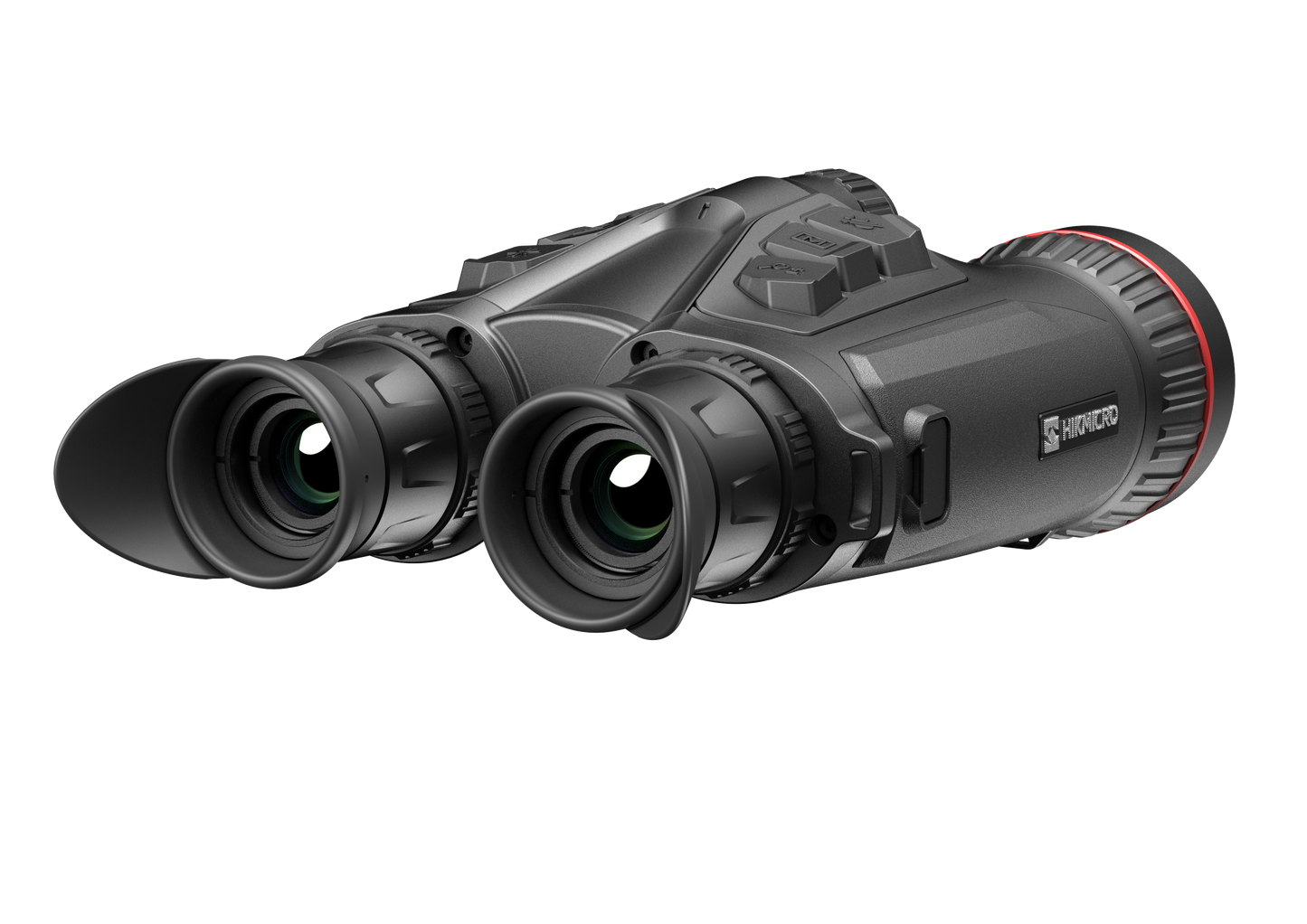

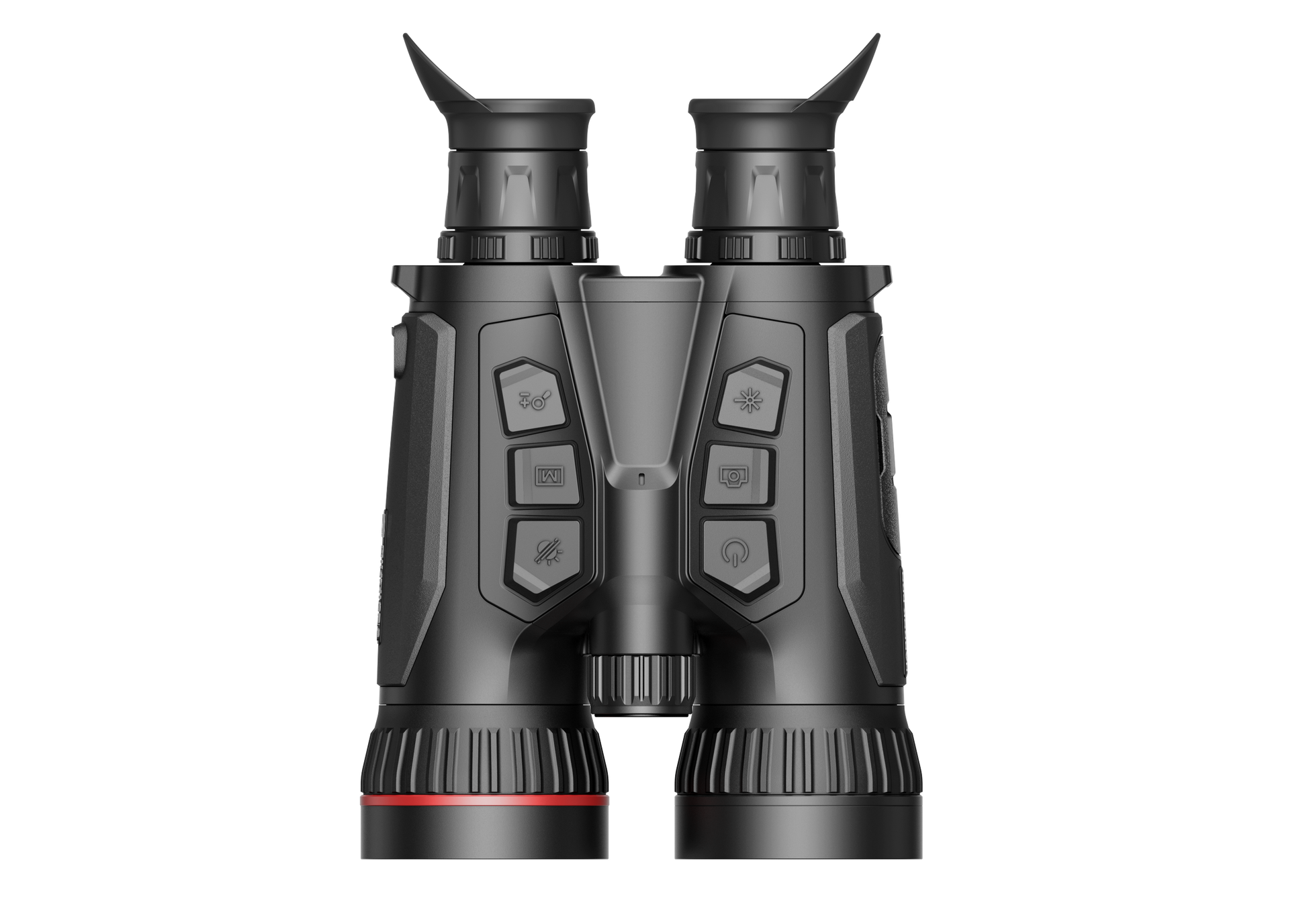

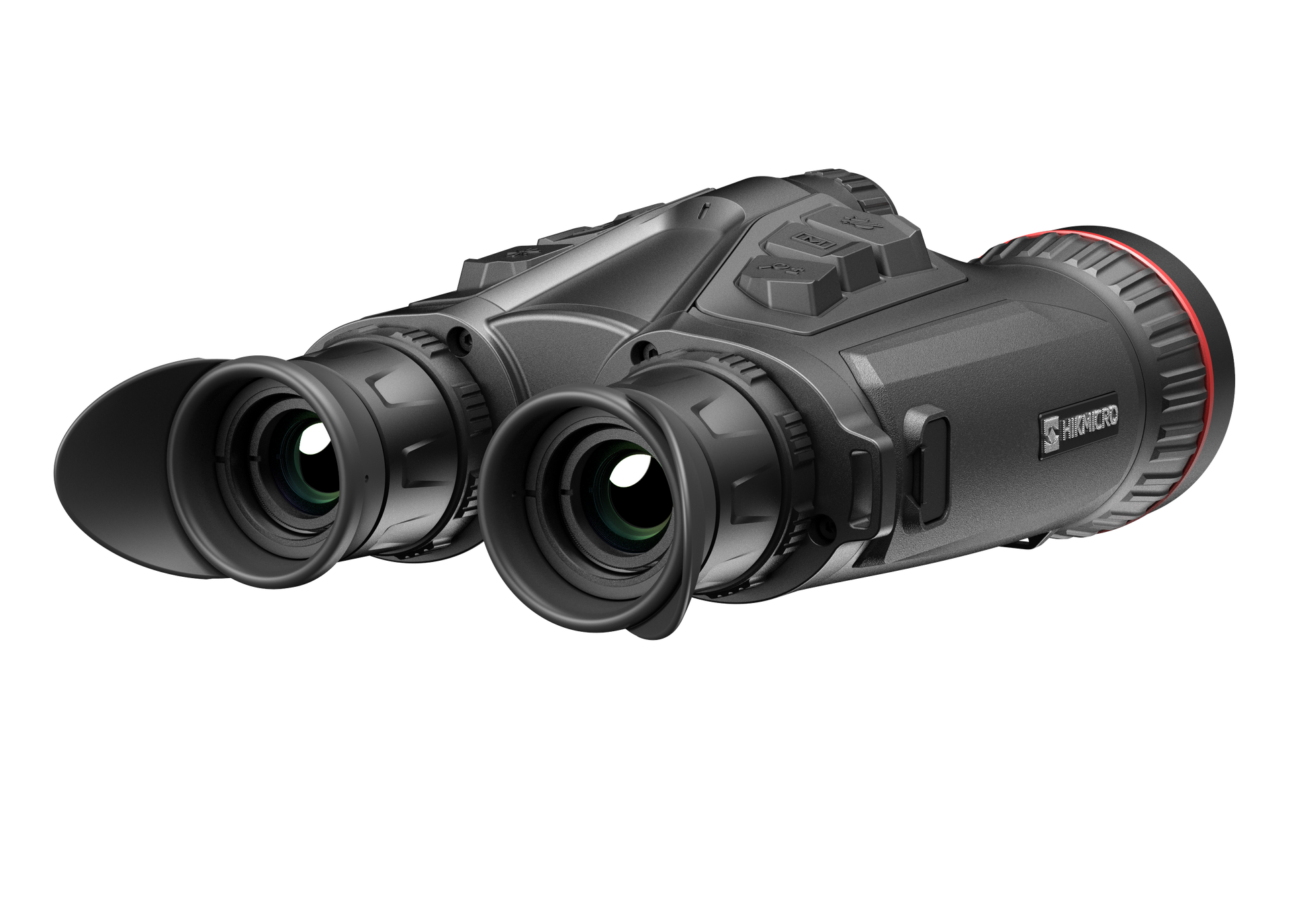

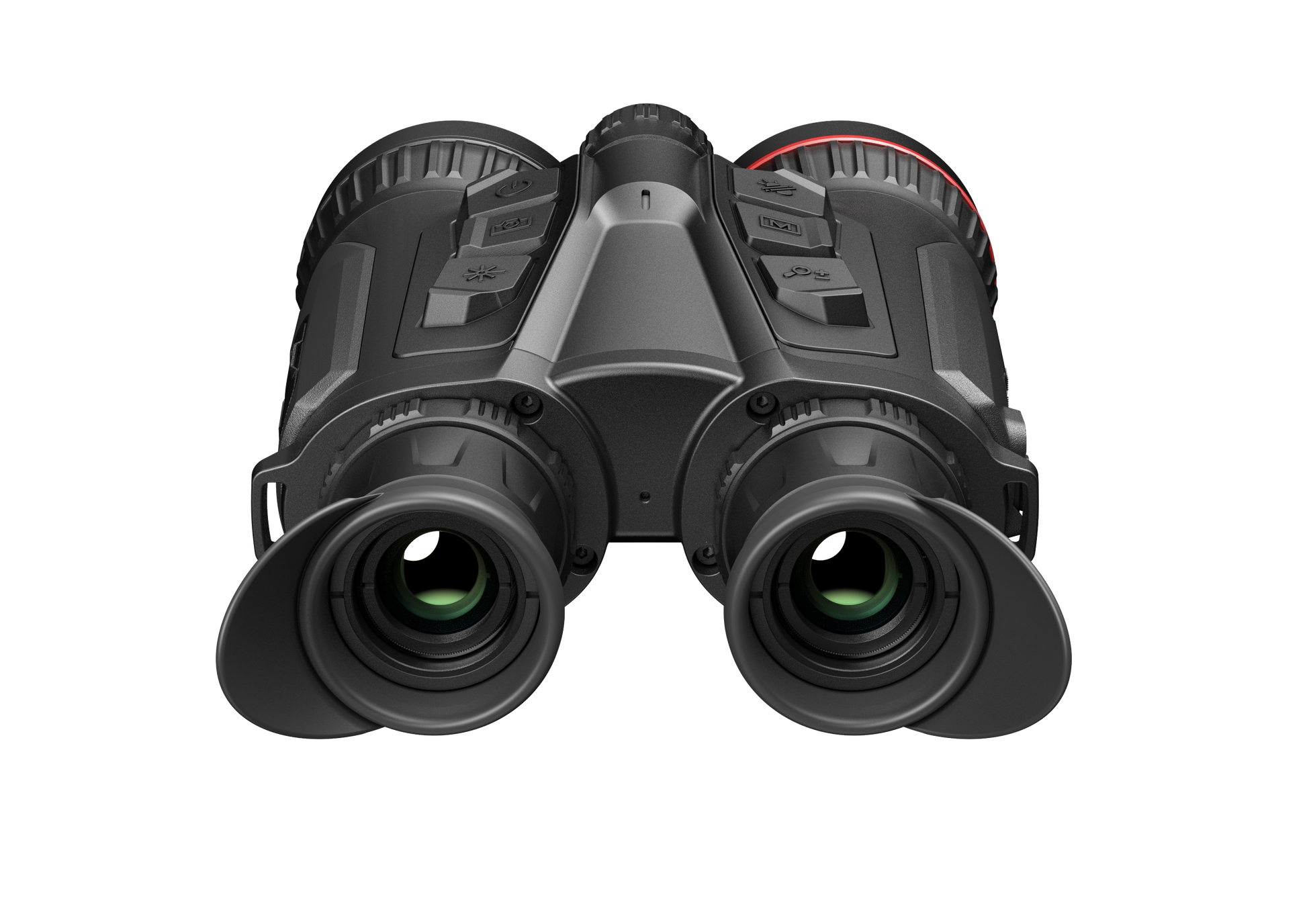

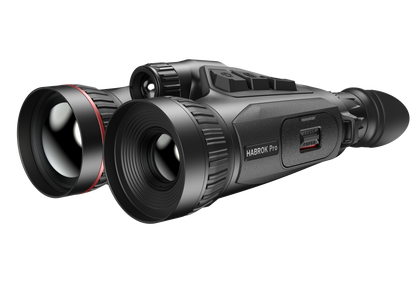

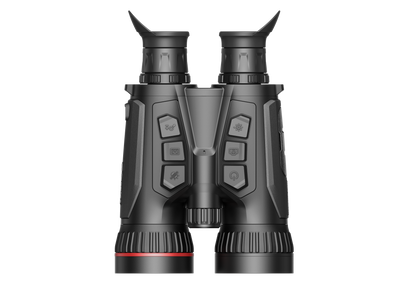

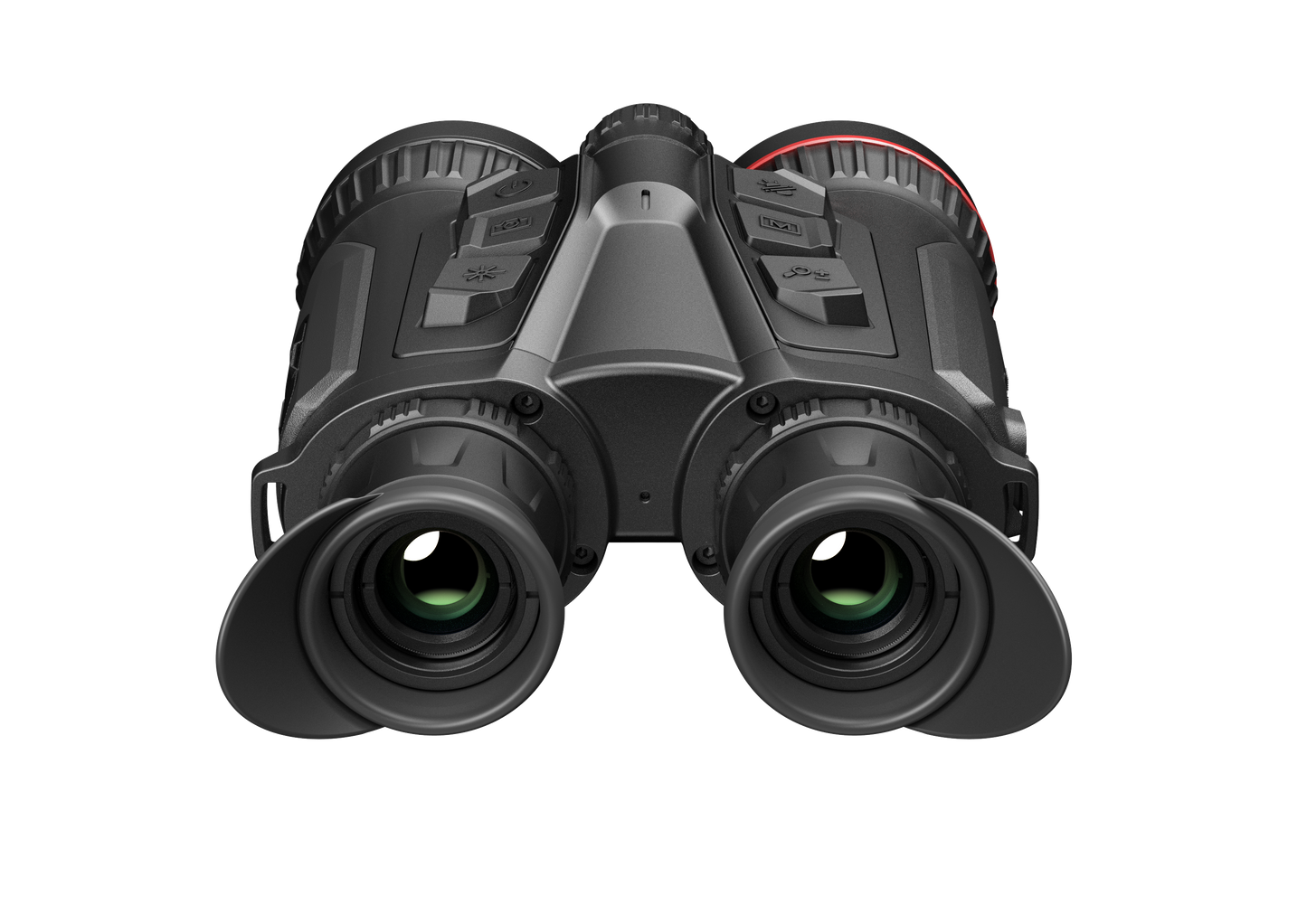

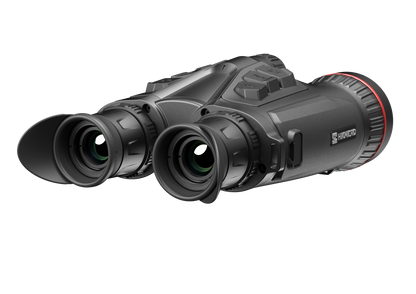

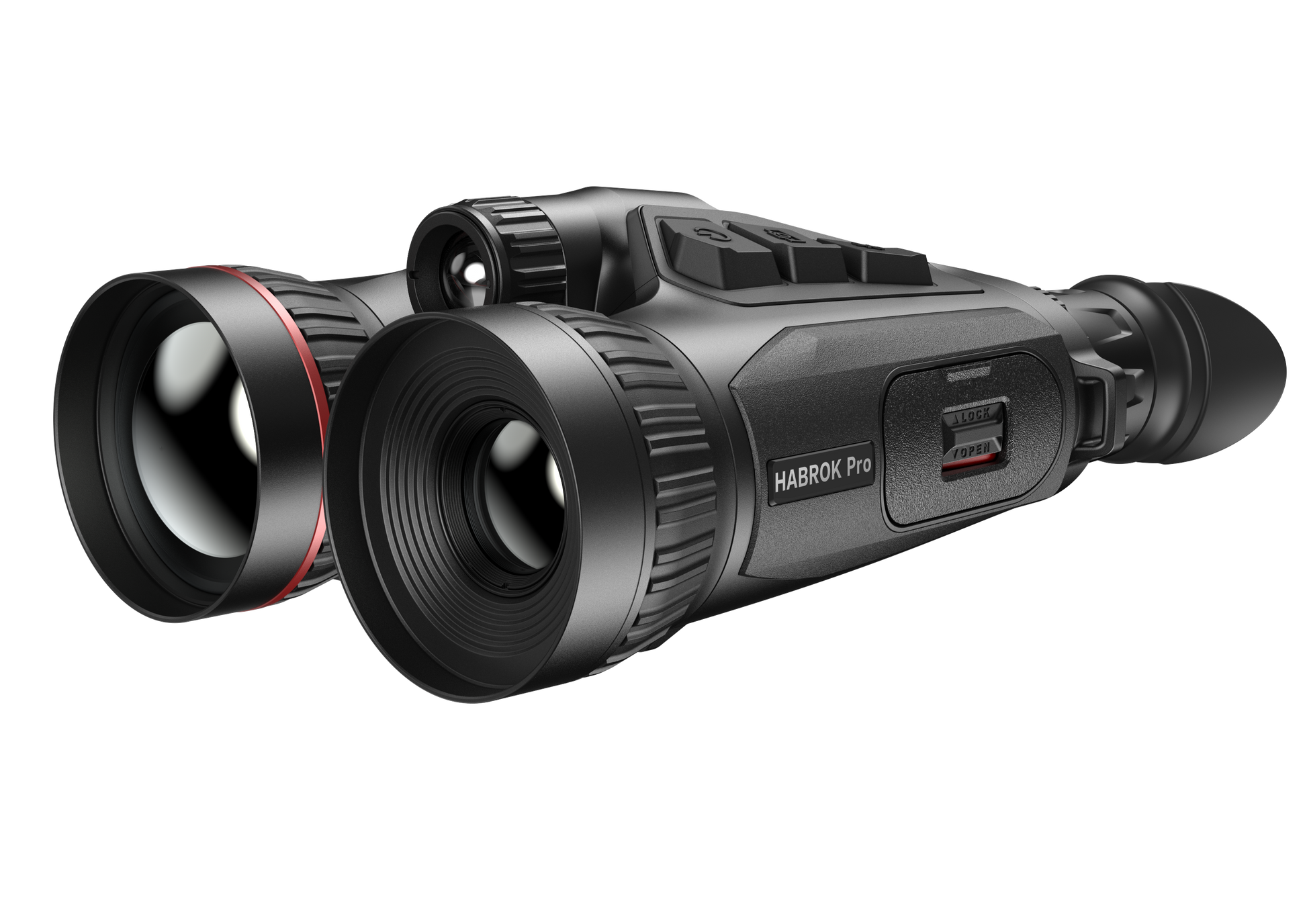

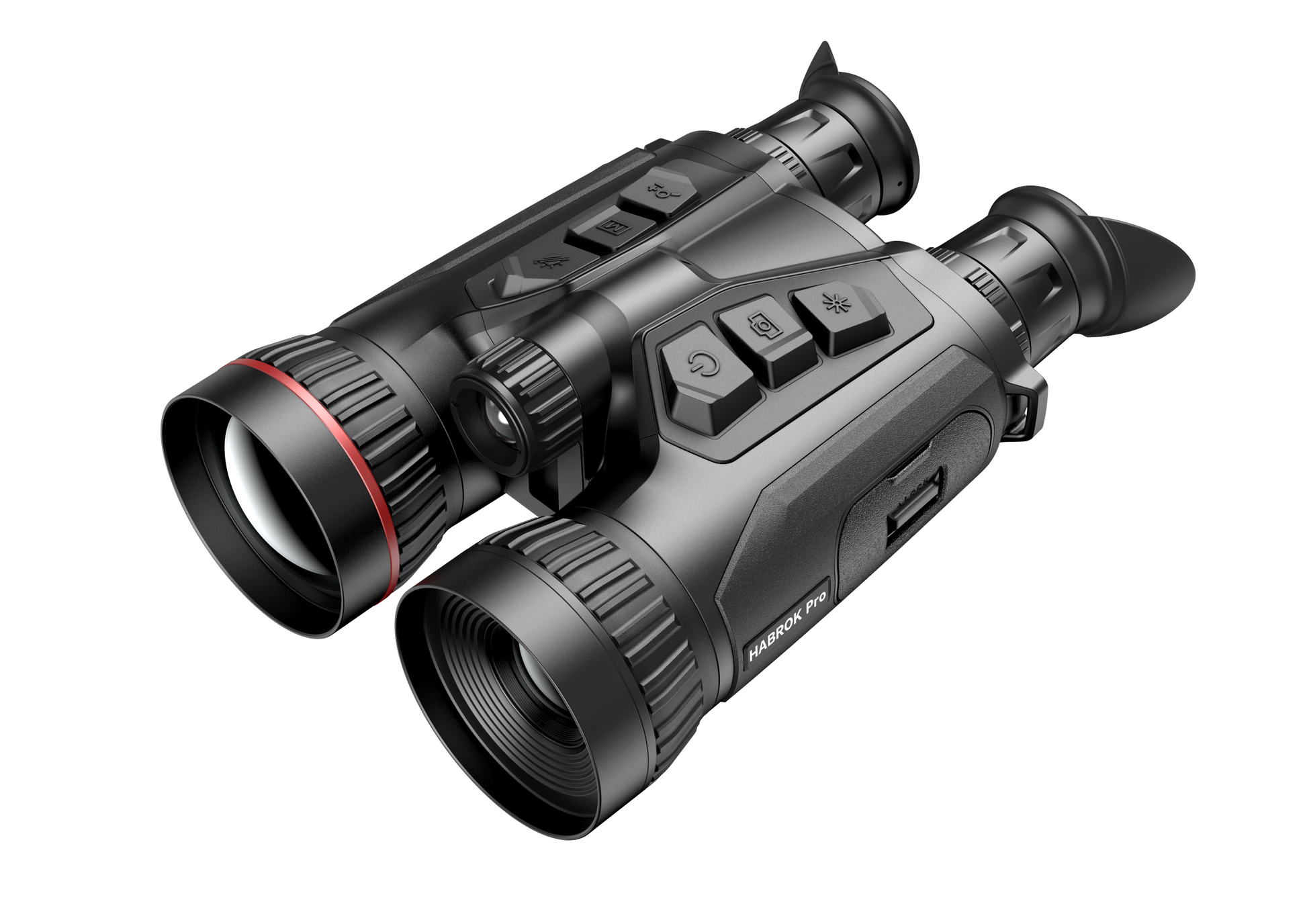

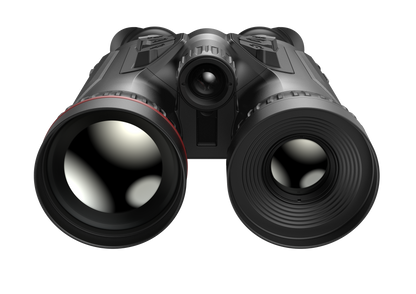

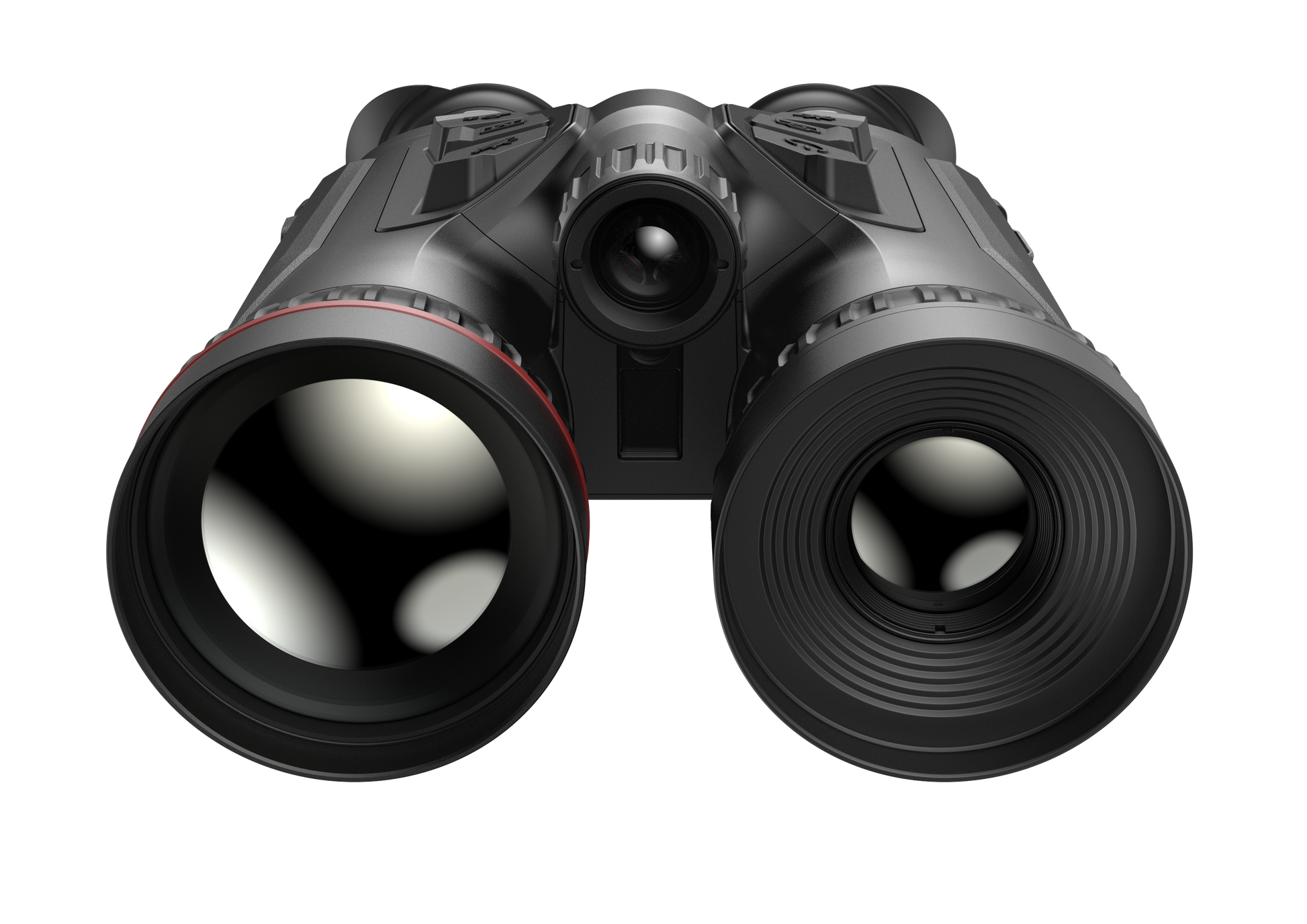

Hikmicro Habrok Pro HX60LS Multi- Spectrum Binocular

HIKMICRO HABROK Pro HX60LS multi-spectrum binocular is equipped with an 15mK NETD, 1280 x 1024 50Hz thermal
detector @60mm thermal lens and an advanced 4K digital detector with 60mm lens, ensuring smooth image display, perfect
image quality and detail recognition in various weather and light conditions. Combined with a 1000m Laser rangefinder and
replaceable IR emitter @850nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding,
animal searching, rescuing and marine scenario.
● Key Feature
● 1280 x 1024 resolution @12μm 50Hz thermal detector
● High sensitivity thermal module NETD ＜ 15 mK (@25°C, F# = 1.0)
● 60mm, F1.0 lens with thermal detection range up to 3100m
● 3840 x 2160 4K ultra high-resolution, 60mm, F2.2 digital camera
● 1920 × 1080 resolution 0.49-inch OLED display
● Replaceable 850nm IR emitter and 1000m Laser Rangefinder
● 5.5 h+ continuous operation time with replaceable battery pack
● 1050g lightweight, with a compact and ergonomic design
 Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 1280 x 1024
Frame Rate 50Hz
Pixel Interval 12μm
Response Waveband 8μm to 14μm
NETD Less than 15 mK (@25°C),F#=1.0
Lens (Focal Length) 60mm, F1.0
Focus Mode Focus Ring
Detection Range 3100m
Min. Focusing Distance 3m
Magnification 2.6x-20.0x (7.7x)
Field of View(H × V), Degrees / m @100m 14.6° × 8.8° / 25.6m x 15.4m
Optical Module
Image Sensor 1/1.8'' Progressive Scan CMOS
Max. Resolution 3840 x 2160
Focal Length 60mm, F2.2
Min. Working Distance 3m
Focus Mode Focus Ring
Magnification 5.5x - 22.0x（4x)
Field of View (H × V), Degrees/m @100 m 7.3° x 4.1° / 12.6m × 7.2m
Smart IR Yes
IR Illuminator Wavelength 850nm
Viewing Range at Night 400m
Replaceable IR Illuminator Yes
Image Display
Display 0.49 inch, OLED, 1920 ×1080
Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green
Monochrome; Optical: Day, Night, Green, Yellow, Auto
Exit Pupil 8mm
Eye Relief 15mm
Diopter (Range) -5D~+3D
Brightness Adjustment Yes
Tone Adjustment Cold, warm
Contrast Adjustment Yes
FFC (Flat Field Correction)
Mode Auto, Manual, External Correction
Zoom Pro No
Image Pro 3.0 Yes
Sync Pro Yes
System
Record Video Yes
Capture Snapshot Yes
Audio Recording Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Digital Magnetic Compass Yes
GPS Yes
Local Album Yes
Standby Mode Yes
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time 5.5h (25 °C, with hotspot off, LRF on)
Type-C Power Supply 5V/9V DC, 3A
Support External Power Supply, Support Direct Charging
General
Dimension 152.8mm × 81.95 mm × 231.5 mm (6.0" × 3.2" × 9.1")
Working Temperature -30℃ ~ +55℃
Weight 1050g with battery pack
Protection Level IP67
Interpupillary Adjustment Range 60 mm to 74 mm
Mounting Adapter 1/4“-20-UNC
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905nm
Max. Measuring Range 1000m
Measurement Accuracy ±1m
Min. Measuring Range 10m
