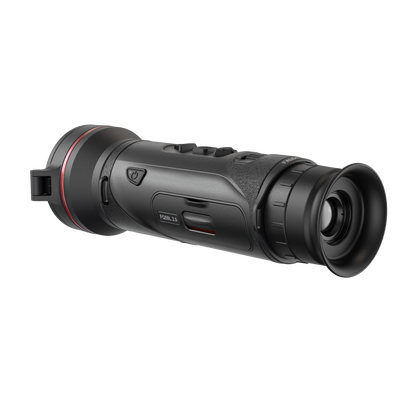

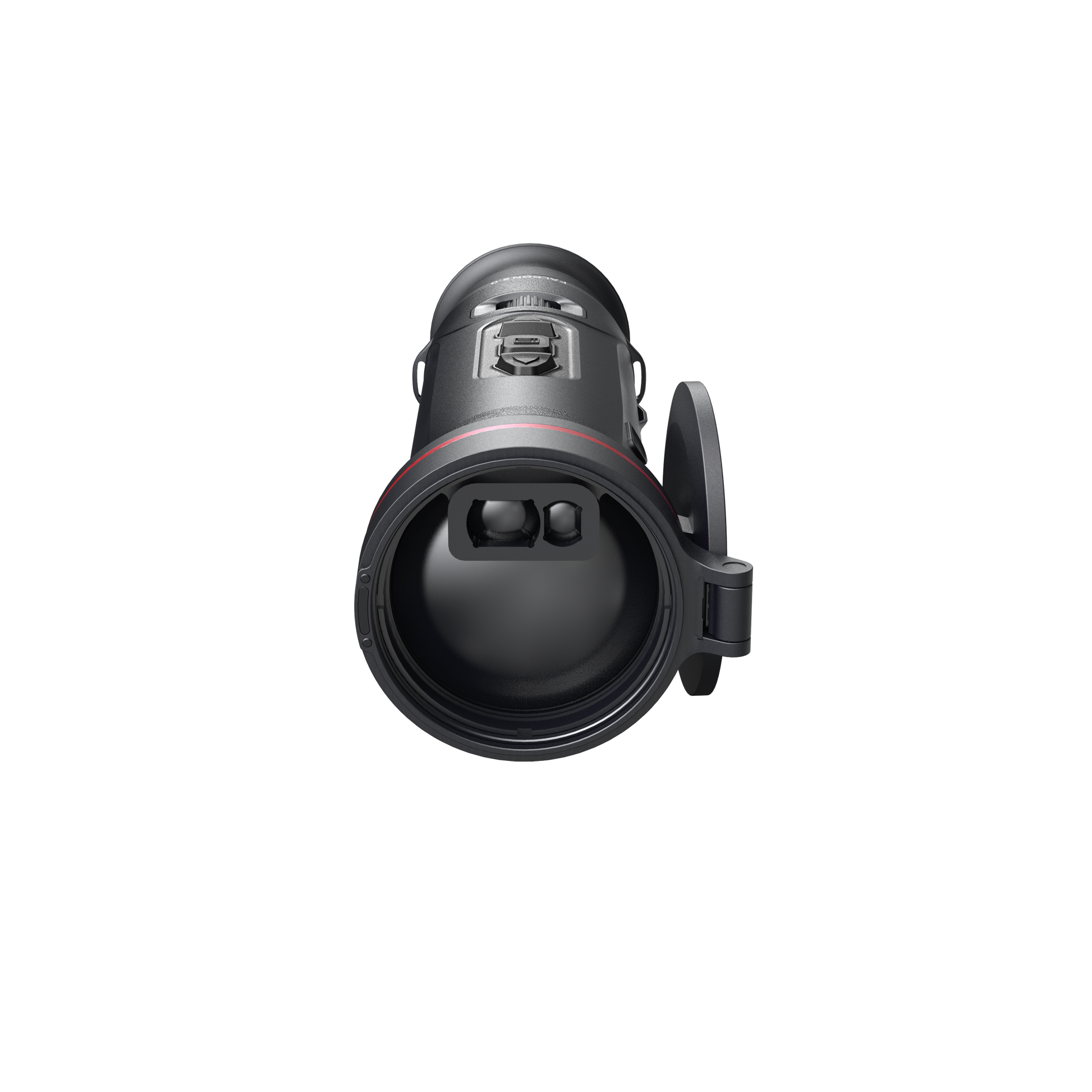

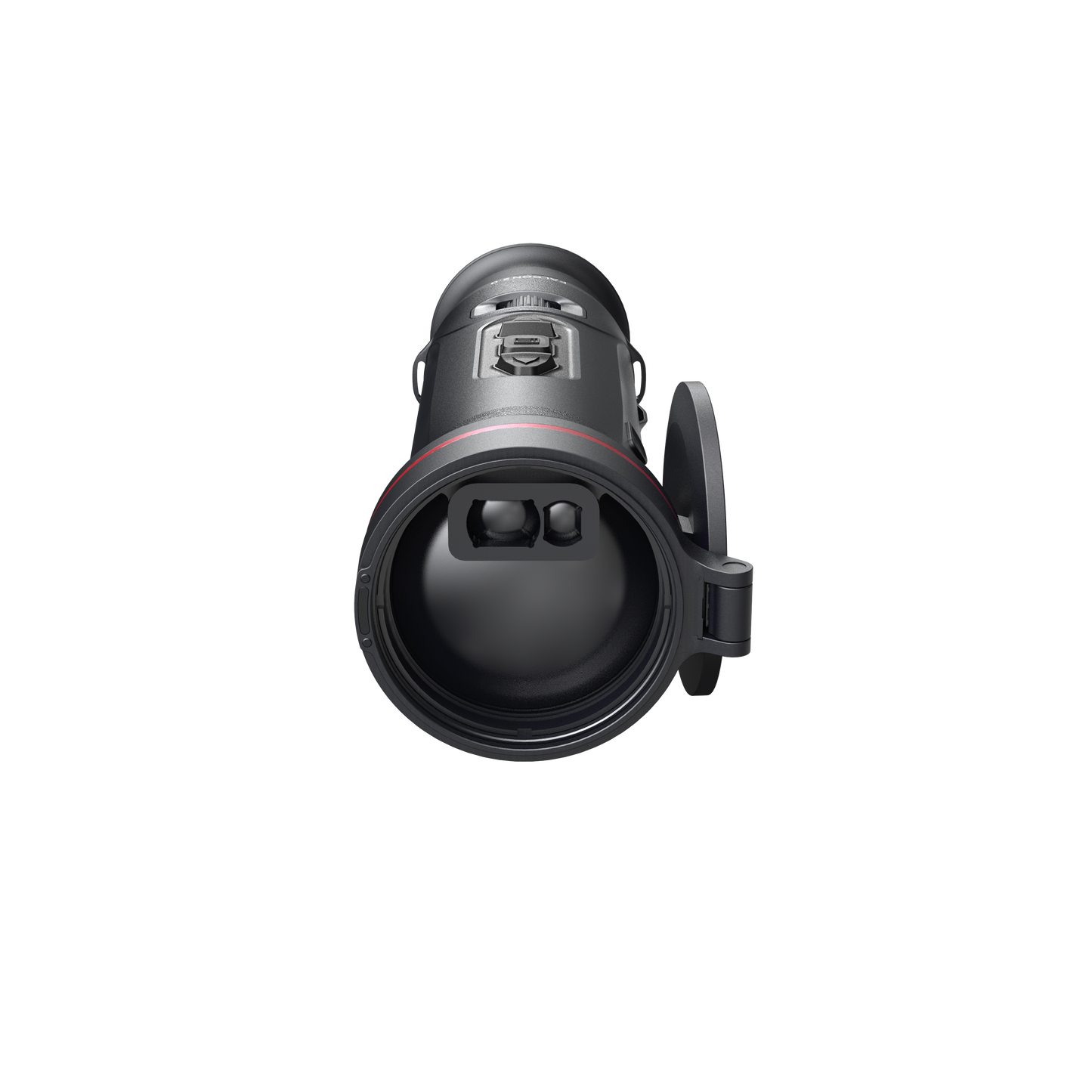

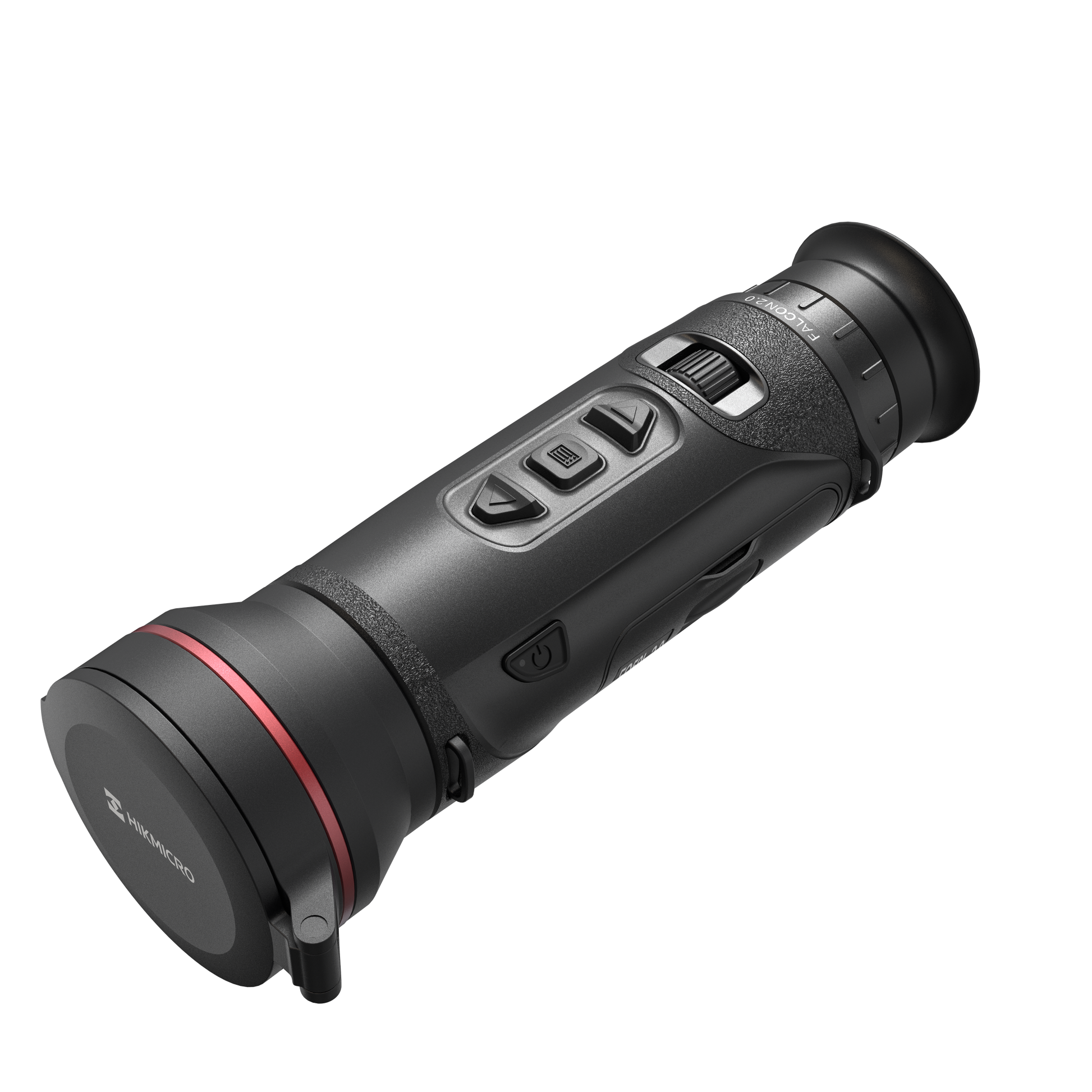

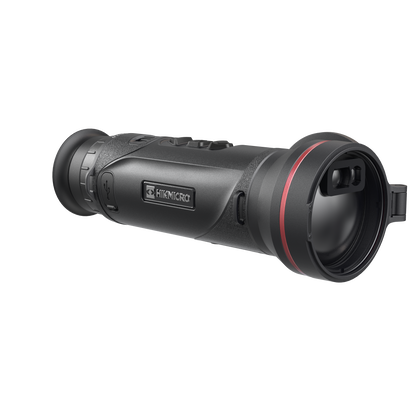

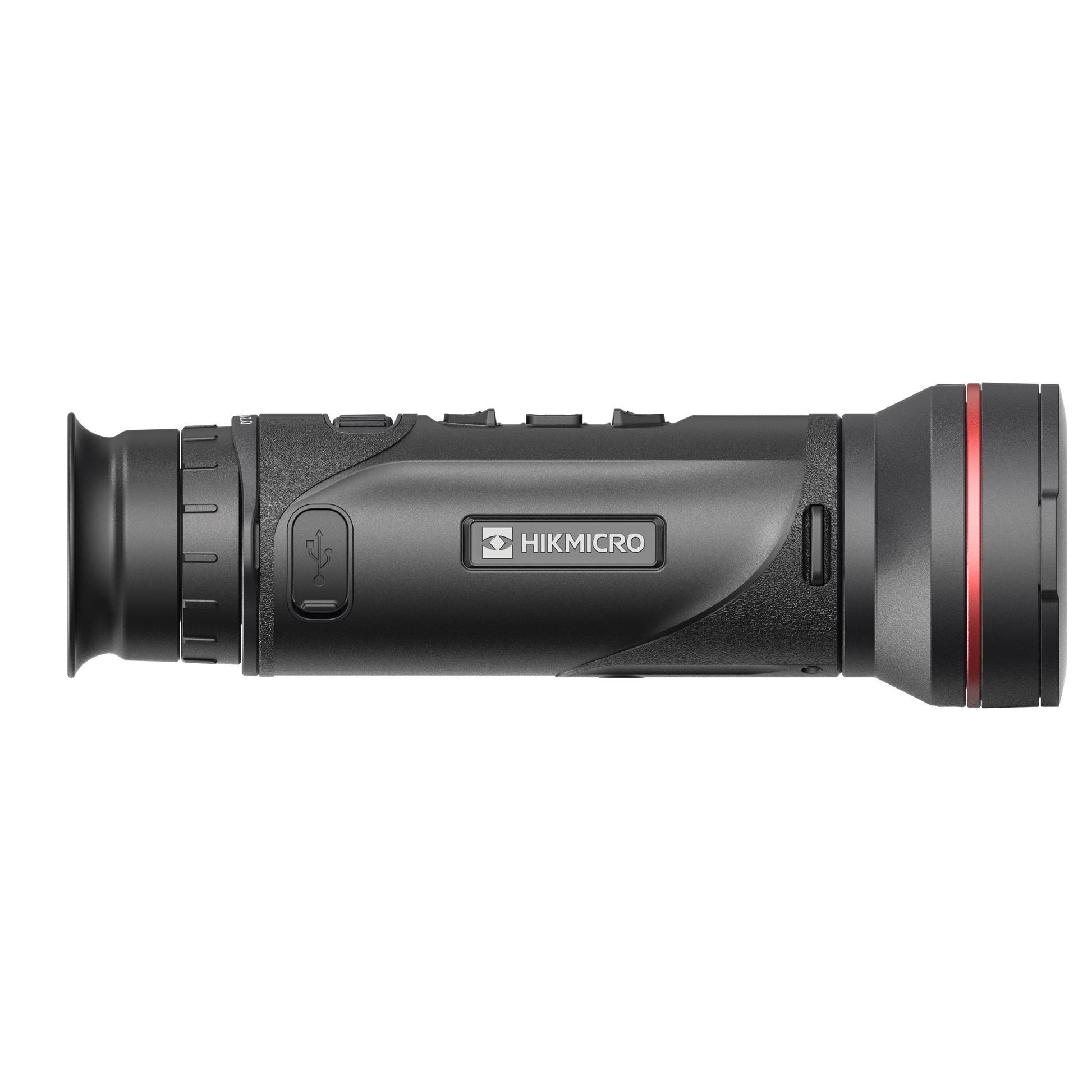

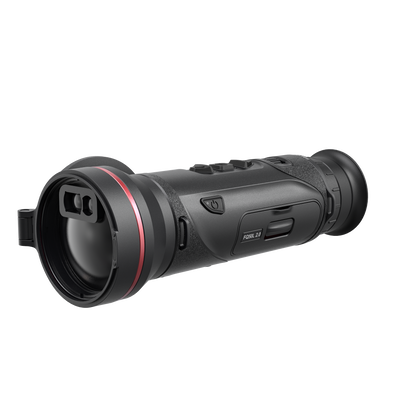

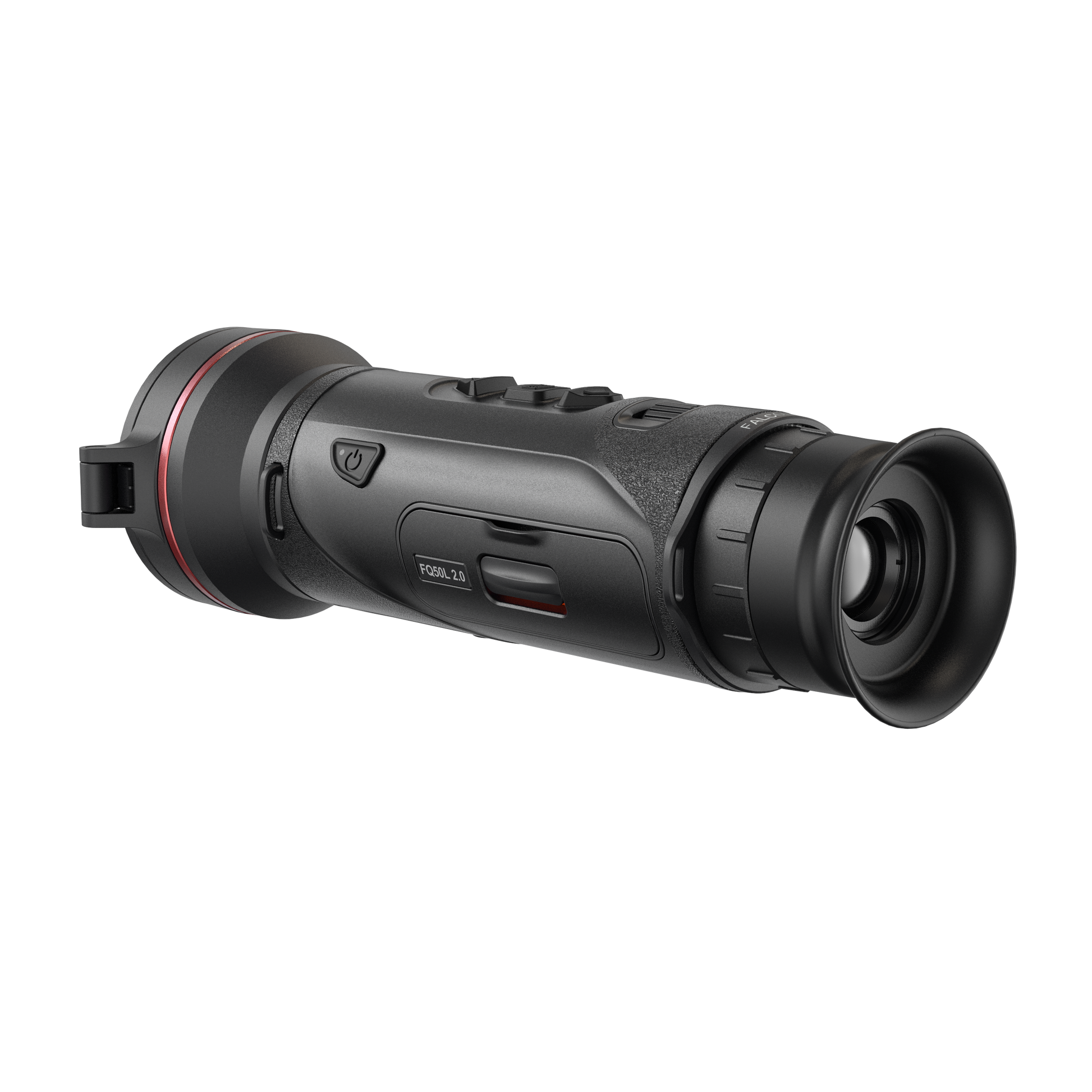

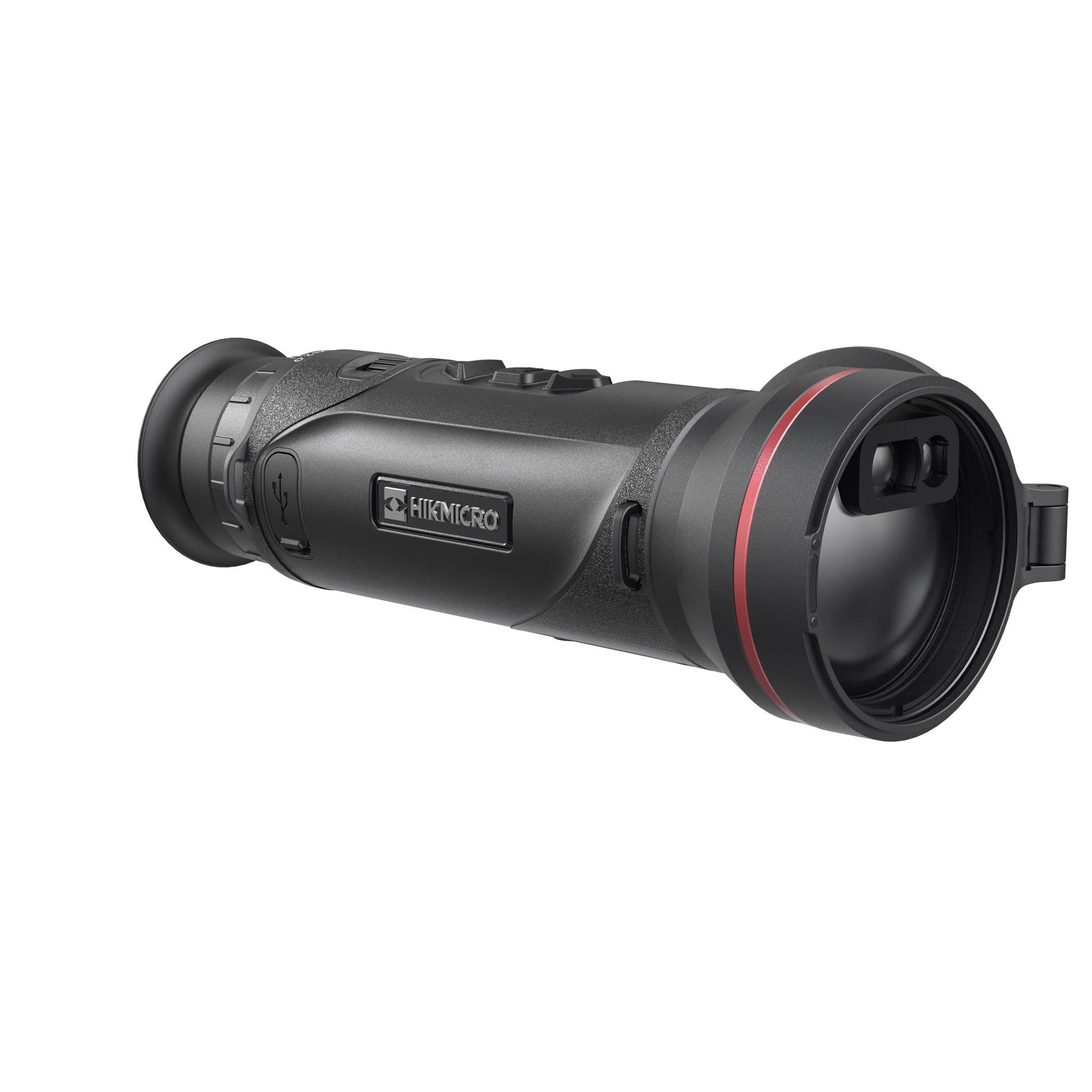

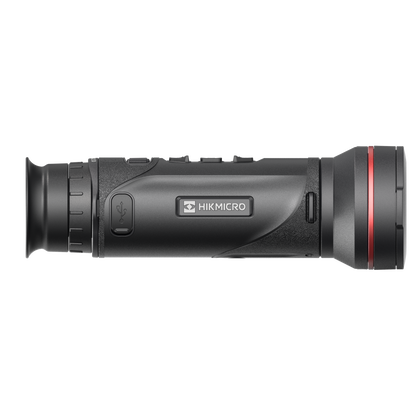

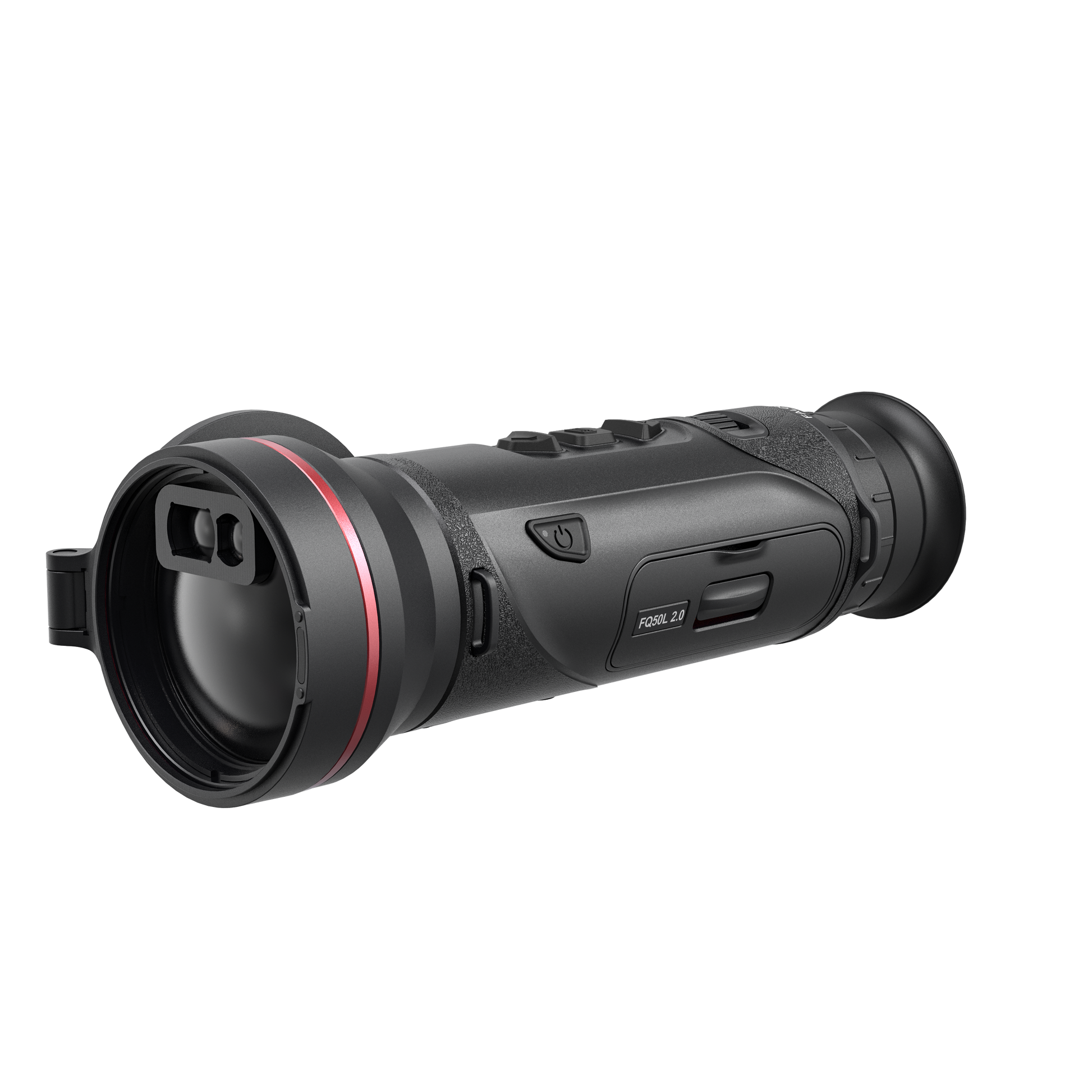

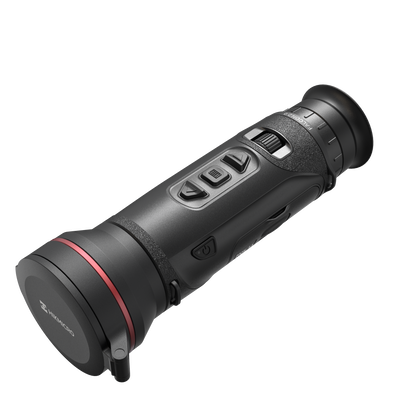

Hikmicro Falcon FQ50L 2.0 Thermal System

HIKMICRO FALCON FQ50L 2.0 handheld thermal system is equipped with a 640 × 512 @12 μm thermal
detector with much higher sensitivity (NETD < 15 mK), ensuring the finest details caught no matter the weather or
light conditions. A 0.49” 1920 × 1080 larger OLED display and the innovative shutterless system (HSIS) provide an
immersive and smooth viewing experience. The laser rangefinder ensures precise distance measurement within
the range of 1000 m. Maintaining the traditional premium cylindrical shape design, this thermal system can be applied
mainly in forest & field hunting, birding, animal searching, rescuing and marine scenarios.
Key Feature
● High sensitivity thermal module NETD < 15mK (@25° C, F#=1.0)
● 640 × 512 resolution with 12 μm detector
● 50 mm, F0.9 lens with detection range up to 2600 m
● 1920 × 1080 resolution 0.49-inch OLED display
● HIKMICRO Shutterless Image System (HSIS)
● 6 h+ continuous operation time with replaceable and rechargeable battery
● 583 g lightweight, with a compact and traditional cylindrical shape design
● Built-in lens laser rangefinder up to 1000 m
Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length) 50 mm, F0.9
Focus Mode Rear Focus Wheel
Min. Focusing Distance 5.0 m
Magnification 2.7 × to 21.6 × (8 ×)
Field of View(H × V), Degrees / m @100 m
8.8° × 7.0°/15.4 m × 12.2 m @100 m
Detection Range 2600 m
Image Display
Display 1920 × 1080, 0.49 inch, OLED
Contrast Adjustment Yes
Brightness Adjustment Yes
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 8 mm
Eye Relief 15 mm
Diopter (Range) -5 D to +3 D
Tone Adjustment Cold, Warm
Zoom Pro Yes
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 2.0 Yes
System
Storage Built-in Memory Module (64 GB)
Record Video Yes
Capture Snapshot Yes
Local Album Yes
Standby Mode Yes
PIP Yes
Hotspot 2.4/5 G WiFi Waveband
Hot Track Yes
Distance Measurement Yes
Audio Recording Yes
Power Supply
Battery Type Replaceable and rechargeable 21700 battery
Battery Operating Time ≥6 h (@25°C, WiFi, Zoom Pro, LRF on)
Type-C Power Supply
5 V DC, 2 A
Supports External Power Supply, Support Direct Charging
General
Work Temperature/Humidity From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less
Protection Level IP67
Dimension 213.4 mm × 69.6 mm × 82.9 mm
Weight 583 g with Battery
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
