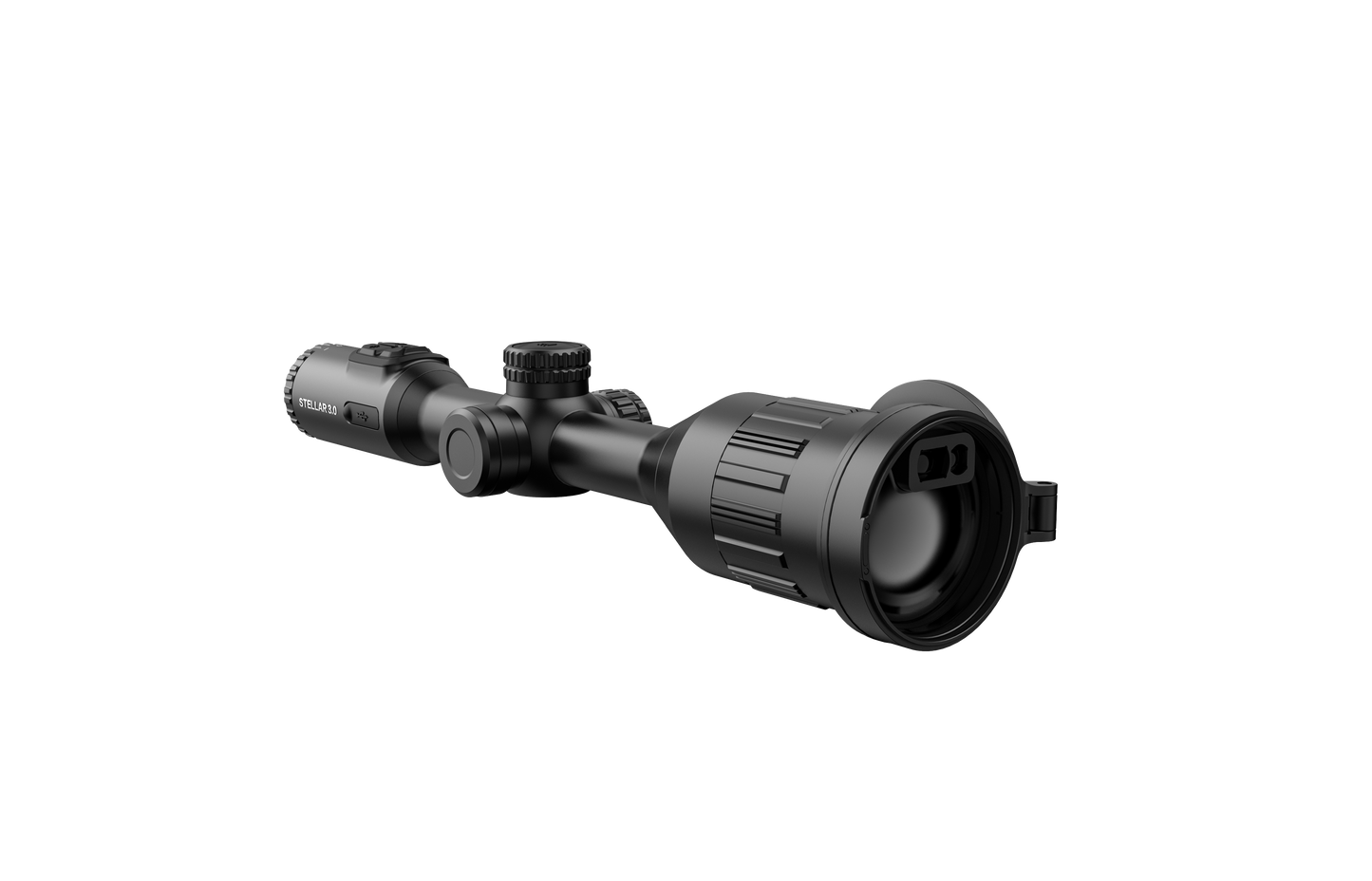

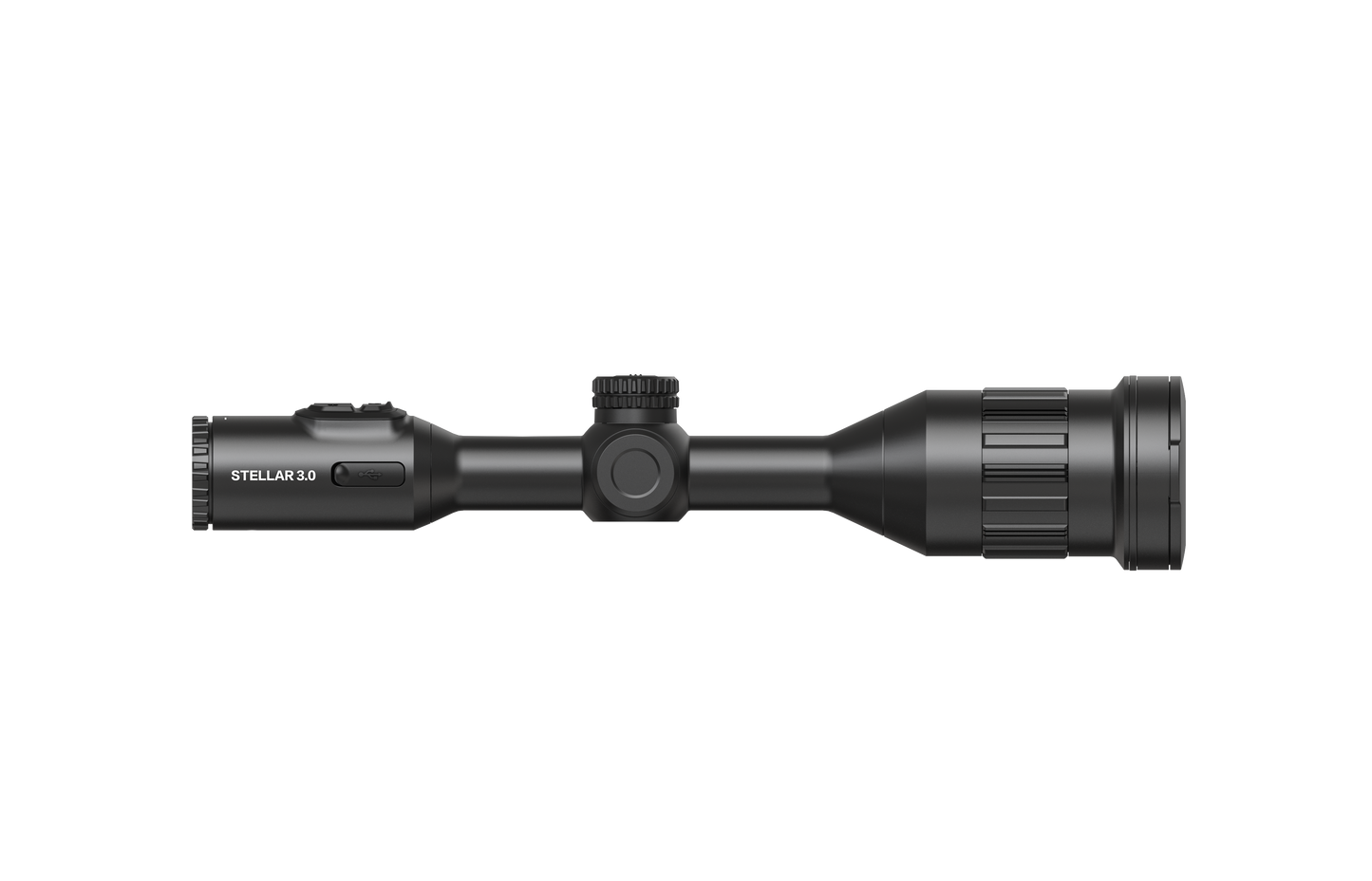

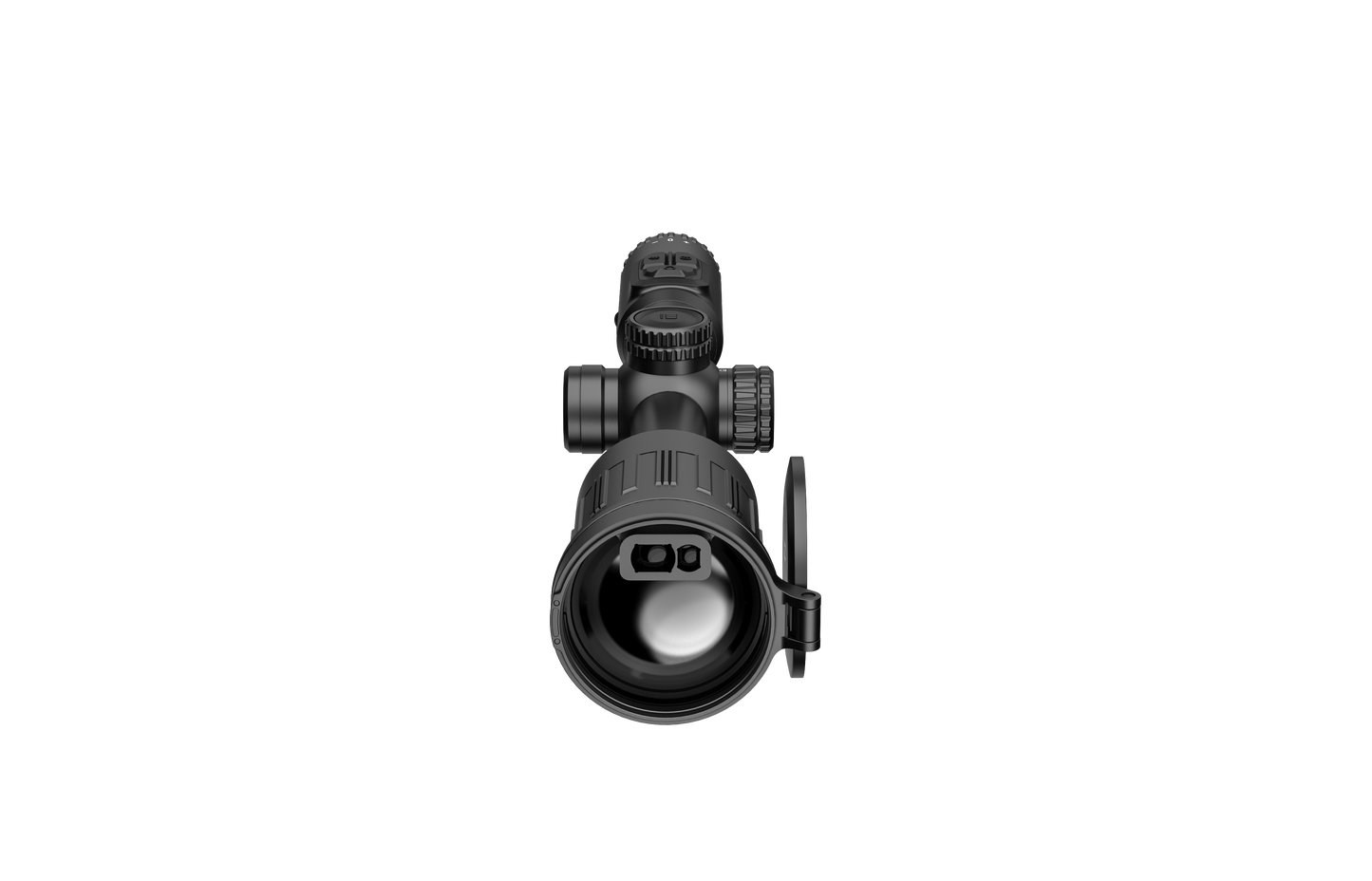

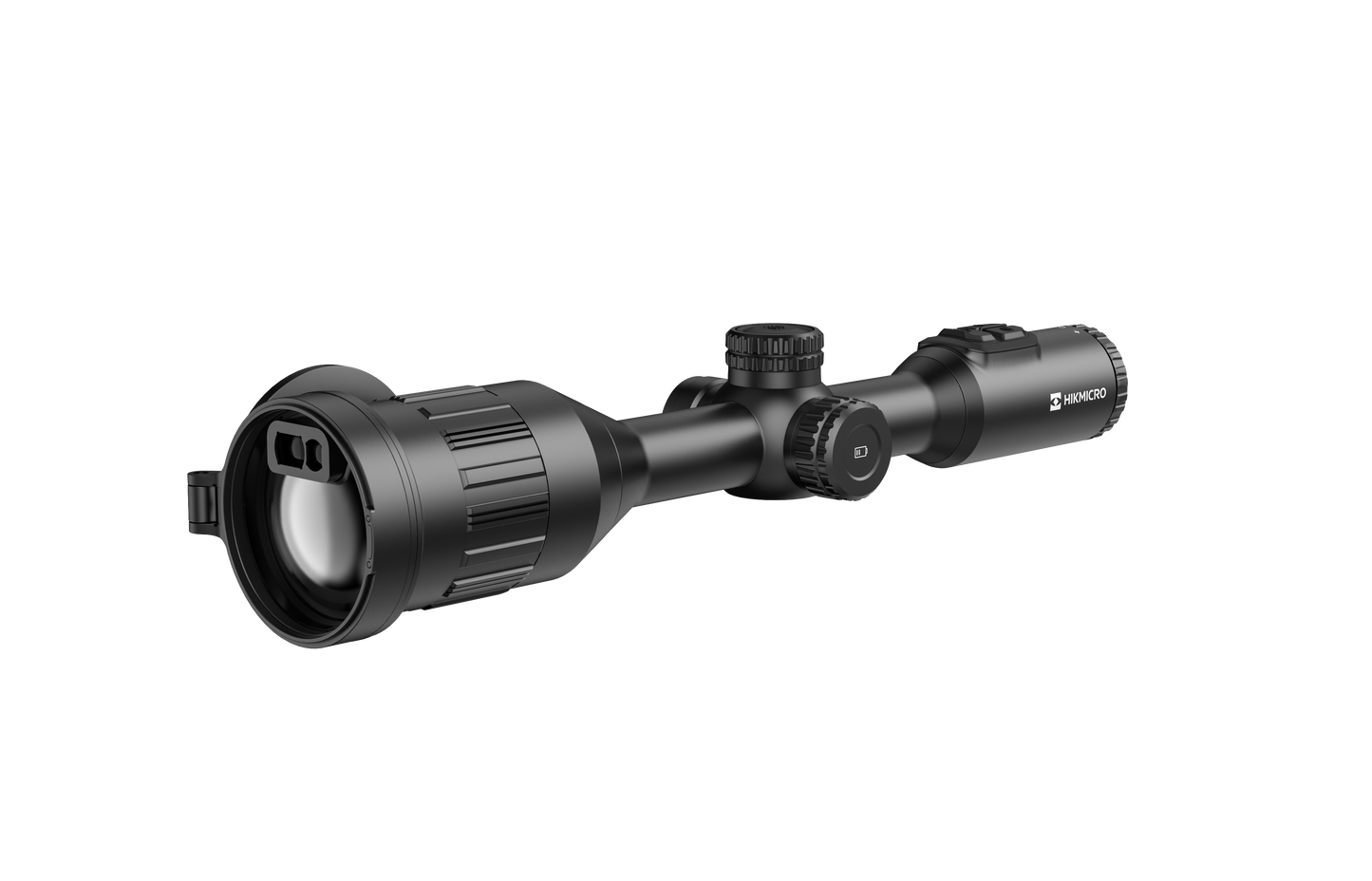

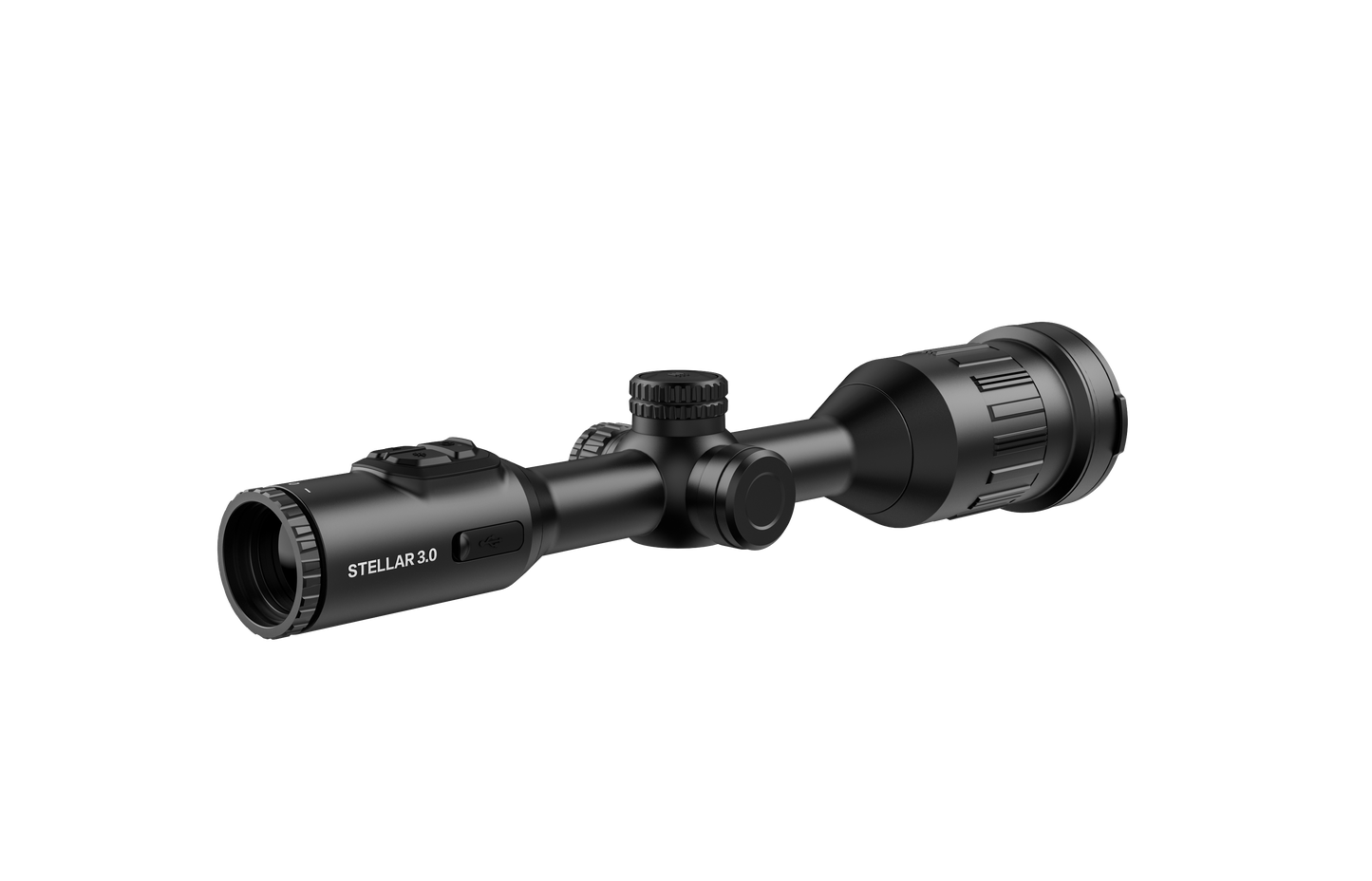

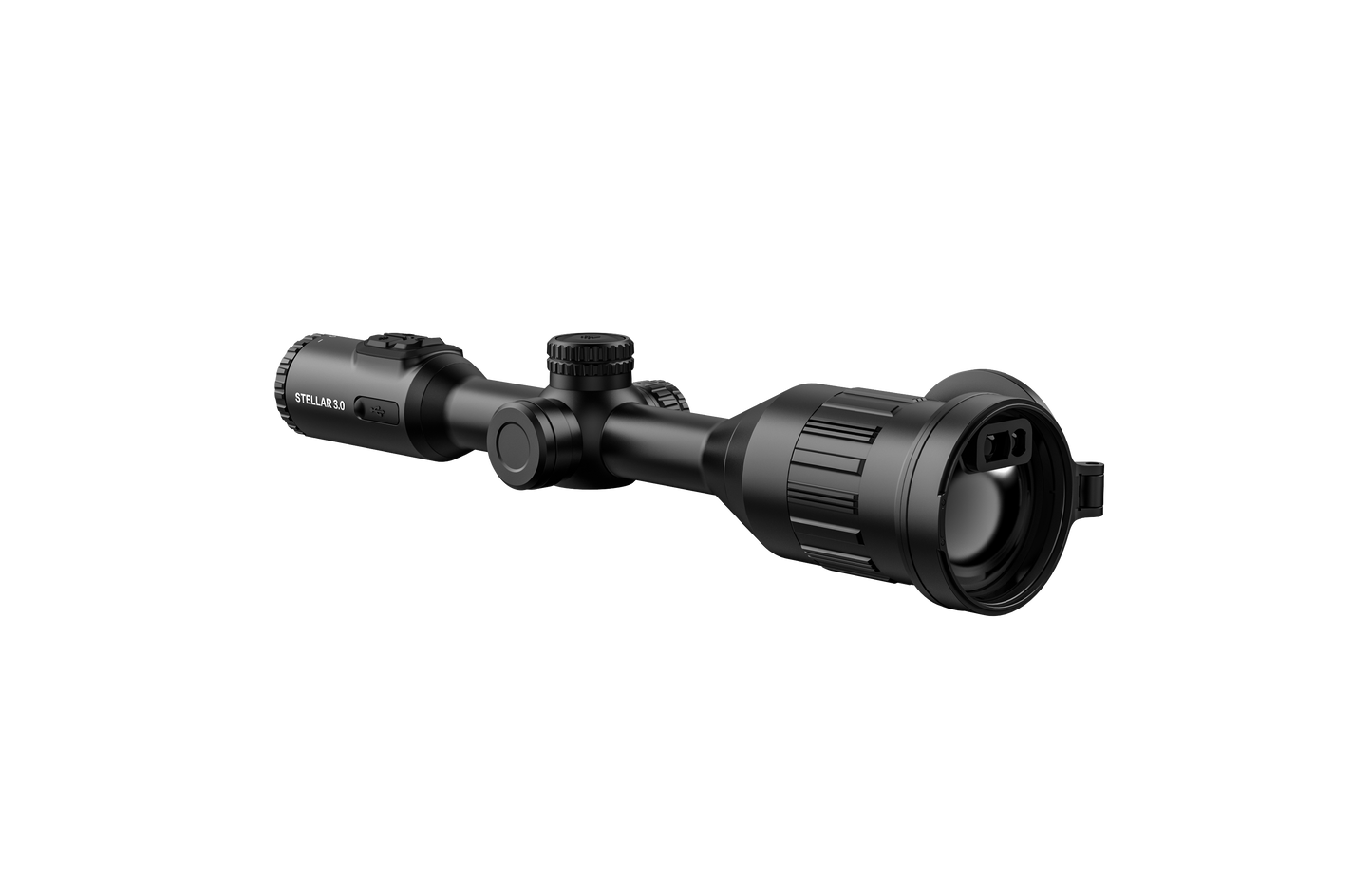

Hikmicro Stellar SX60L 3.0 Thermal Scope
Hikmicro Stellar SX60L 3.0 Thermal Scope
HIKMICRO STELLAR SX60L 3.0 Thermal Scope is equipped with a 1280 × 1024 @12 μm thermal detector, with
much higher sensitivity (NETD < 18 mK) and the latest image processing algorithm (Image Pro 2.0), ensuring users
catch the finest details no matter the weather or light conditions without interruption. With a 2560 × 2560 1.03”
OLED larger display, SX60L 3.0 makes it easier to spot targets quickly and accurately. The built-in lens 1000 m LRF
and ballistic calculation contribute to more accurate shooting. The scope is mainly used for field and forest
hunting.
Key Feature
● 1280 × 1024 resolution @12 μm thermal detector
● High sensitivity thermal module NETD < 18 mK (@25°C, F# = 1.0)
● 60 mm, F1.0 lens with detection range up to 3100 m
● 2560 × 2560 resolution 1.03-inch OLED display
● Built-in lens laser rangefinder up to 1000 m, with ballistic calculation
● Rechargeable internal batteries and external battery, 9h continuous operation
● High shock resistance up to 1000 g/0.4 ms
Specification
Thermal Module
Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 1280 × 1024
Frame Rate 25 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 18 mK (@25°C, F# = 1.0)
Lens (Focal Length) 60 mm, F1.0
Focus Mode Focus Ring
Detection Range 3100 m
Min. Focusing Distance 6 m
Magnification
2.5× to 28.5×
Support 1× step value of continuous zooming
Field of View(H×V),
Degrees/m @100 m
14.6° × 11.7°/25.6 m × 20.5 m
Image Display
Display 2560 × 2560, 1.03-inch OLED
FFC (Flat Field Correction)
Mode
Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter (Range) -4D to 4D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Image Pro 2.0 Yes
HSIS (HIKMICRO Shutterless
Image System)
No
Zoom Pro No
System
Record Video On-board Video Recording
Capture Snapshot Yes
Audio Recording Yes
Recoil-activation Recording Yes
Storage Built-in EMMC (64 GB)
PIP Yes
Hotspot Yes
Hot Track Yes
Distance Measurement Yes
Zeroing Profiles 5
Freeze Zeroing Yes
Max. Recoil 1000 g/0.4 ms
Standby Mode Yes
Ballistic Calculation Yes
Local Album Yes
Power Supply
Battery Type
Two rechargeable Lithium batteries (internal), one replaceable and
rechargeable 18650 battery (external)
Battery Operating Time 9 hours continuous running (@25°C, LRF on)
Type-C Power Supply
DC 5 V/2 A, USB Type-C interface, Supports QC3.0
*Only the built-in battery will be charged via the type-C cable. Use the battery
charger to charge the external battery.
General
Mounting Standard 30 mm
Dimension 452.6 mm × 94.3 mm × 78.9 mm
Weight 1000 g without external battery
Working Temperature -30°C to 55°C (-22°F to 131°F)
Protection Level IP67
Center Height 41 mm
Laser Rangefinder
LRF Module in Lens Yes
Wavelength 905 nm
Safety Class for Laser Class 1
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
