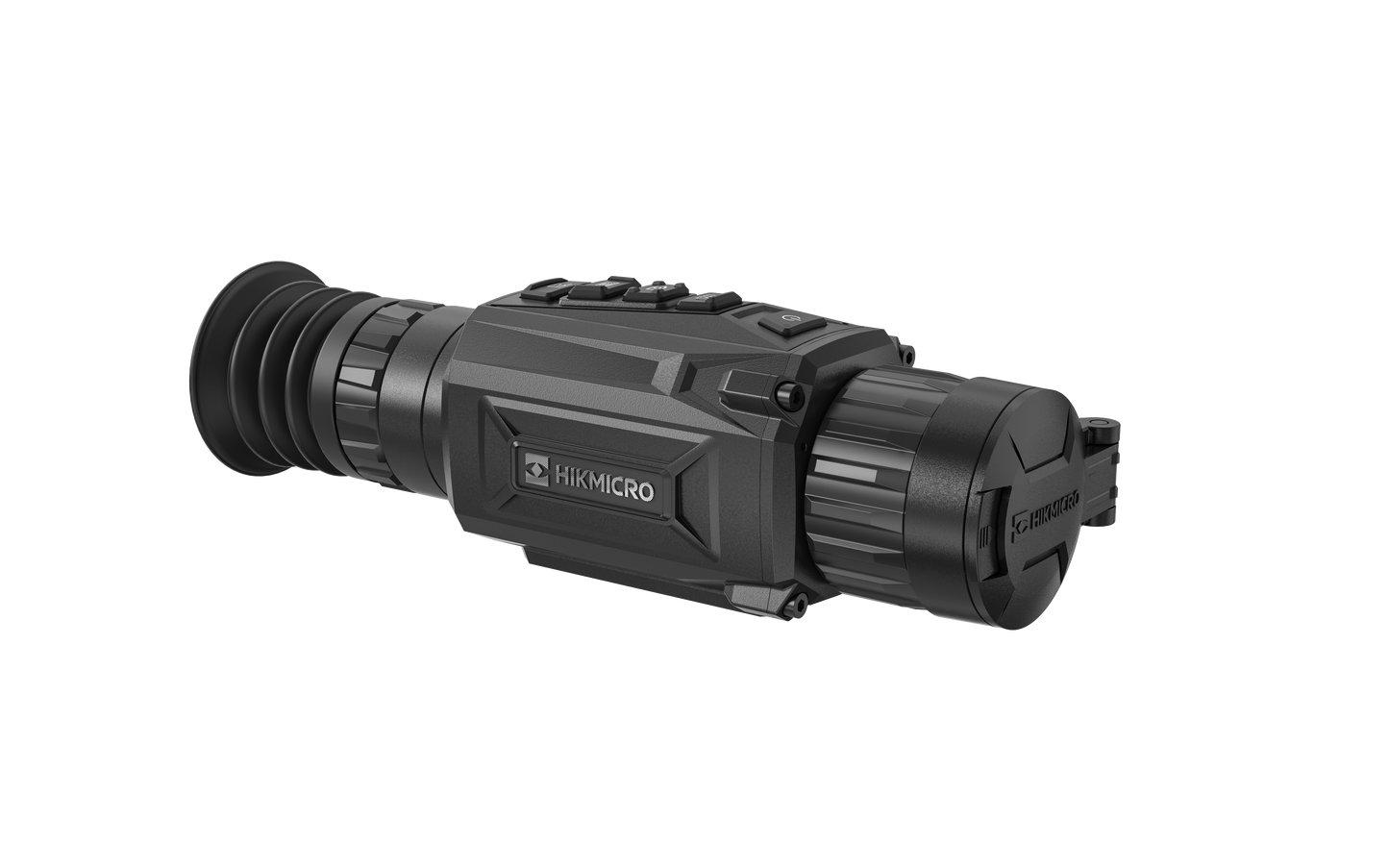

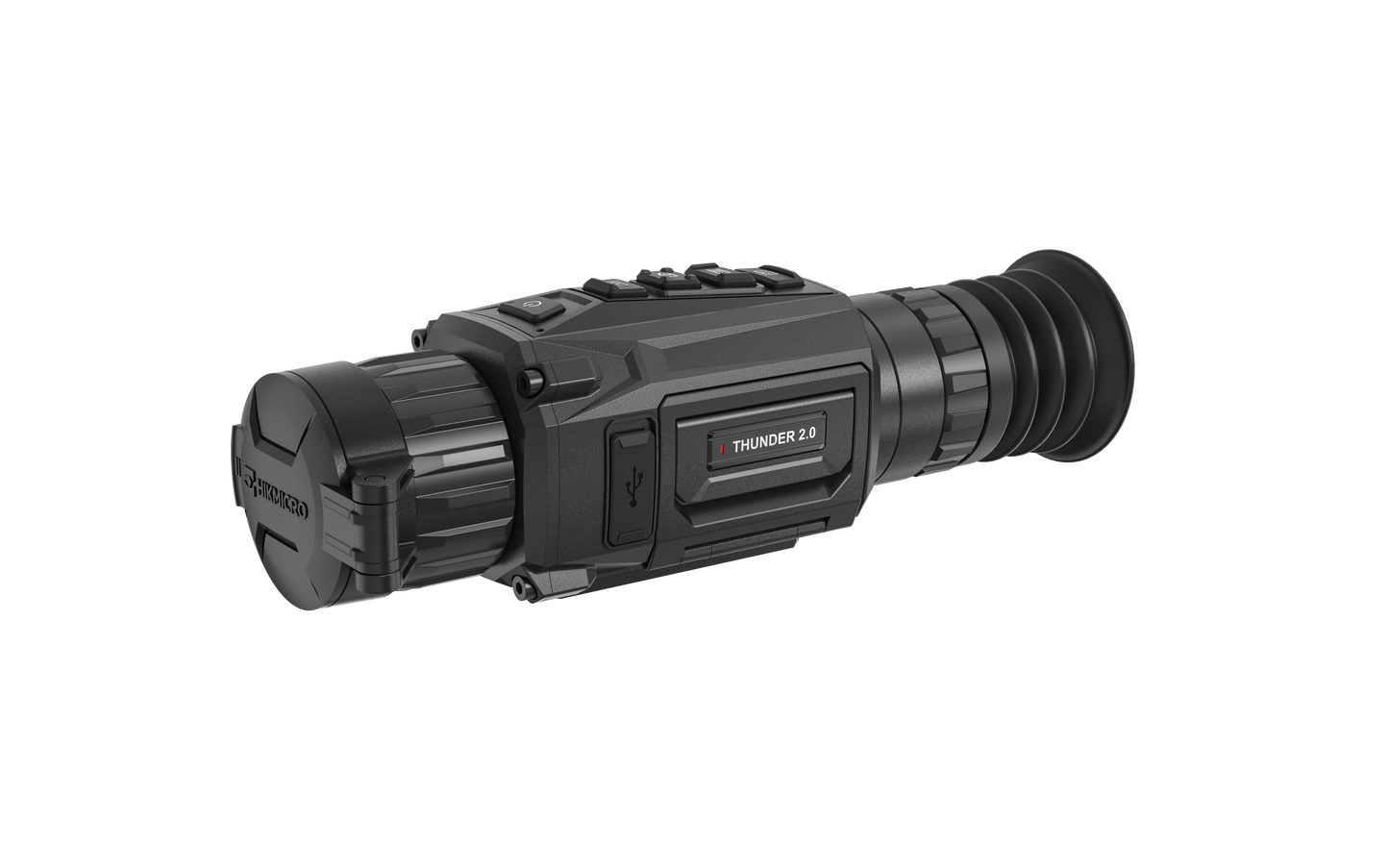

Hikmicro Thunder TH25P 2.0 Thermal Scope

Thunder TH25P 2,0

The TH25P 2.0 Thermal Image Scope has a 384 × 288 thermal detector and a 1,024 × 768 OLED display. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background are with minimal temperature difference. With an extended operation time, the scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.

384 × 288 resolution with 12 μm sensor
High sensitivity thermal module NETD ≤ 20 mK (25°C, F# = 1.0)
1,024 × 768 resolution 0.39″ OLED display
Supports image brightness and tone adjustment
Up to 6.5 hours of continuous operation
Replaceable and rechargeable Li-ion battery
Supports audio and recoil-activated recording
High shock resistance up to 1,000 g/0.4 ms
Detection Range: 1,200 m

Thermal Module

Image Sensor: Uncooled Focal Plane Arrays
Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 mm
NETD: Less than 20 mk (25°C, F# = 1.0)
Lens (Focal Length): 25 mm
Focus Knob: No
Detection Range: 1,200 m
Focusing Distance: 0.5 m
Aperture: F1.0
Magnification: 1.53 ×
Field of View (H × V), degrees/m @100 m 10.53° × 7.91°/18.43 m × 13.82 m

Image Display

Display: 1024 × 768, 0.39″, OLED
Palettes: Black hot, white hot, red hot, fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 6 mm
Eye Relief: 45 mm
Diopter (Range): -5 D to 5 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm

System

Record Video: On-board Video Recording
Capture Snapshot: Yes
Digital Zoom: 1x, 2x, 4x, 8x
Standby Mode: Yes
Storage: Built-In EMMC (16 Gb)
PIP: Yes
DPC: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes
Recoil-Activation Recording: Yes
Audio Recording: Yes
Recoil: 1,000 g/0.4 ms

Power Supply

Battery Type: Replaceable and Rechargeable Li-Ion Battery
Battery Operating Time: ≥ 6.5 h (25°C, with hotspot off)
Type-C Power Supply: 5 VDC, 2 A; Supports external power supply

General

Protection Level: IP67
Dimension: 218.7 mm × 67.14 mm × 68.04 mm
Weight: 488 g without battery
Working Temperature: -30°C to +55°C

What’s in the box
HIKMICRO Thunder TH25P 2.0 25 mm Thermal Monocular & Riflescope (19 mm)
Battery Charger
Battery x2
Type-C Cable
Quick Start Guide
Bag
Wrench
